915006 (EZR 1640) - Ariens 40" Zero-Turn Mower, 16hp Tecumseh (SN: 000101 & Above) Hanger Arm Parts Diagram

40" Zero-Turn Mower, 16hp Tecumseh

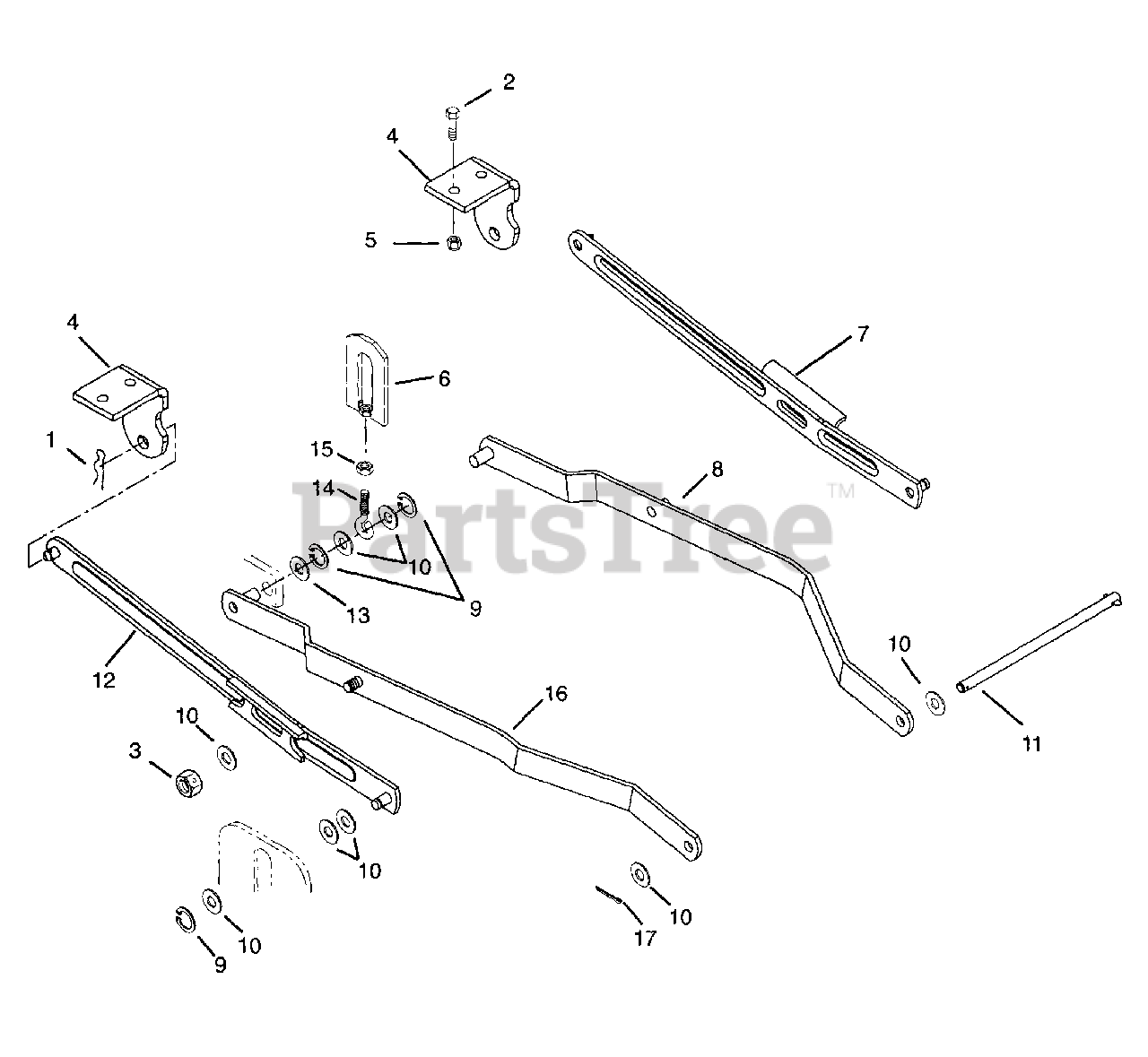

Hanger Arm Parts Diagram

  • Title

1

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 3 left!

0

2

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06526700

NUT-LK-CTR .625-11 TYP N
(Superseded to 06535300)

$2.99

$

In Stock, only 1 left!

0

4

Ariens 01519500

REAR HANGER
(Superseded to 01519551)

$

$

Not available

5

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

6

Ariens 03486400

LINK, ADJUSTMENT

$43.99

$

In Stock, only 2 left!

0

7

Ariens 01534900

REAR HANGER, L.H.
(Superseded to 51504200)

$

$

Not available

8

Ariens 01534700

L.H. LIFT ARM
(Superseded to 51504400)

$

$

Not available

9

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 01535900

PIN

$39.99

$

Usually ships in 4-12 days

0

12

Ariens 01535000

REAR HANGER, R.H.
(Superseded to 51504300)

$

$

Not available

13

Ariens 06420100

WSHR-FL-STL .531X1.250X.100 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 03624500

HANGER

Note: (004,005,006,303)

$51.99

$

Usually ships in 4-12 days

0

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

Note: (007,302)

$7.99

$

In Stock, only 1 left!

0

15

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 10

0

16

Ariens 01534800

R.H. LIFT ARM
(Superseded to 51504500)

$93.99

$

In Stock, only 1 left!

0

17

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0
