915007 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Pan Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

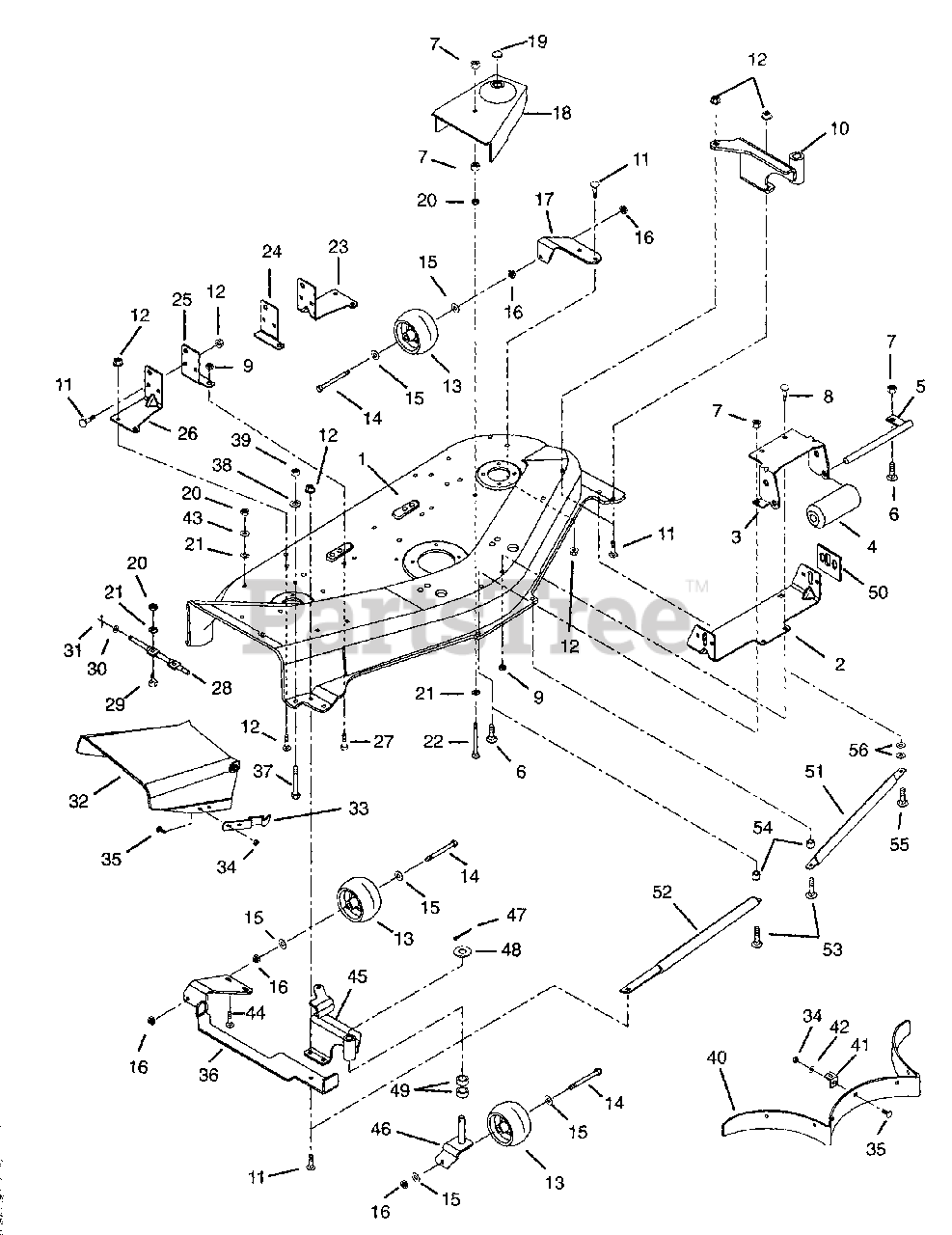

48" Mower Pan Parts Diagram

  • Title

1

Ariens 53401700

MOWER PAN W/DECALS 48"- ORANGE

$

$

Not available

2

Ariens 01521200

FRONT HANGER
(Superseded to 01521251)

$46.99

$

Usually ships in 4-12 days

0

3

Ariens 03435100

BRACKET, ROLLER
(Superseded to 03435151)

$83.99

$

Usually ships in 4-12 days

0

4

Ariens 03114100

ROLLER

$23.99

$

In Stock, Qty 10

0

5

Ariens 03435200

ROLLER SHAFT

$52.99

$

Usually ships in 4-12 days

0

6

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

Note: (007)

$2.99

$

In Stock, Qty 20+

0

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06208300

BLT-RDHDSQNK .50-13X.75 SHT PL
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

9

Ariens 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 01535600

WELDMENT-LEFT FRONT
(Superseded to 01535659)

$

$

Not available

11

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

Note: (007)

$2.99

$

In Stock, Qty 20+

0

11

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

Note: (302)

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 02745400

ROLLER

$16.99

$

In Stock, Qty 20+

0

14

Ariens 05920800

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05960900)

$4.99

$

In Stock, Qty 20+

0

15

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 01535300

BRACKET-LEFT REAR

$

$

Not available

18

Ariens 03482300

BELT COVER R H 48"
(Superseded to 03095851)

$74.99

$

Usually ships in 4-12 days

0

18

Ariens 03482400

BELT COVER L H 48"
(Superseded to 03095959)

$36.99

$

Usually ships in 4-12 days

0

19

Ariens 07504000

BUTTON PLUG 1.0

$3.49

$

In Stock, only 1 left!

0

20

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

21

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

22

Ariens 06208700

BLT-RDHDSQNK .31-18X3.25 SHTPL
(Superseded to 06221300)

$6.99

$

In Stock, only 1 left!

0

23

Ariens 01521500

LH REAR HANGER
(Superseded to 51501000)

$

$

Not available

24

Ariens 01521600

LH REAR HANGER SUPPORT
(Superseded to 01521651)

$17.99

$

Usually ships in 4-12 days

0

25

Ariens 01521400

RH REAR HANGER SUPPORT
(Superseded to 01521451)

$47.99

$

Usually ships in 4-12 days

0

26

Ariens 01521300

RH REAR HANGER
(Superseded to 51501000)

$

$

Not available

27

Ariens 05930000

BLT-HEX .50-13X1 PL GR5
(Superseded to 05947100)

$2.99

$

In Stock, Qty 7

0

28

Ariens 03405800

HINGE PIN

$48.99

$

Usually ships in 4-12 days

0

29

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

32

Ariens 03034900

CHUTE EXTENSION
(Superseded to 53402500)

$117.99

$

In Stock, only 1 left!

0

33

Ariens 00318500

SPRING, FLAT
(Superseded to 01597751)

$21.99

$

In Stock, only 1 left!

0

34

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 01535400

WELDMENT-RIGHT REAR
(Superseded to 01535459)

$

$

Not available

37

Ariens 05921600

BLT-HEX.38-16X2.5FTHD GR2 YWZC

$3.49

$

In Stock, only 3 left!

0

38

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$4.99

$

In Stock, Qty 17

0

39

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 03434259

BAFFLE
(Superseded to 03434200)

$85.99

$

Usually ships in 4-12 days

0

41

Ariens 03434300

BAFFLE TAB
(Superseded to 03434351)

$

$

Not available

42

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

43

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.99

$

In Stock, Qty 20+

0

45

Ariens 01535500

WELDMENT-RIGHT FRONT
(Superseded to 01563659)

$

$

Not available

46

Ariens 01534600

CASTER FORK, WELDMENT
(Superseded to 01534659)

$67.99

$

In Stock, only 2 left!

0

47

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$2.49

$

In Stock, only 3 left!

0

48

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 12

0

49

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, Qty 8

0

50

Ariens 01528700

MOWER ADJUSTMENT TAB
(Superseded to 01528751)

$

$

Not available

51

Ariens 03667200

GUARD - FOOT - LH

Note: (302)

$

$

Not available

52

Ariens 03667300

GUARD - FOOT - RH

Note: (302)

$

$

Not available

53

Ariens 06202300

BLT-RDHDSQNK .31-18X1.50 PL
(Superseded to 06212100)

Note: (302)

$1.99

$

In Stock, Qty 12

0

54

Ariens 01529600

SPACER .375 X .625 X .500

Note: (302)

$

$

Not available

55

Ariens 06215900

BLT-RDHDSQNK .31-18X1.25
(Superseded to 06219200)

Note: (302)

$4.99

$

Usually ships in 4-12 days

0

56

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

Note: (302)

$8.49

$

In Stock, Qty 8

0
