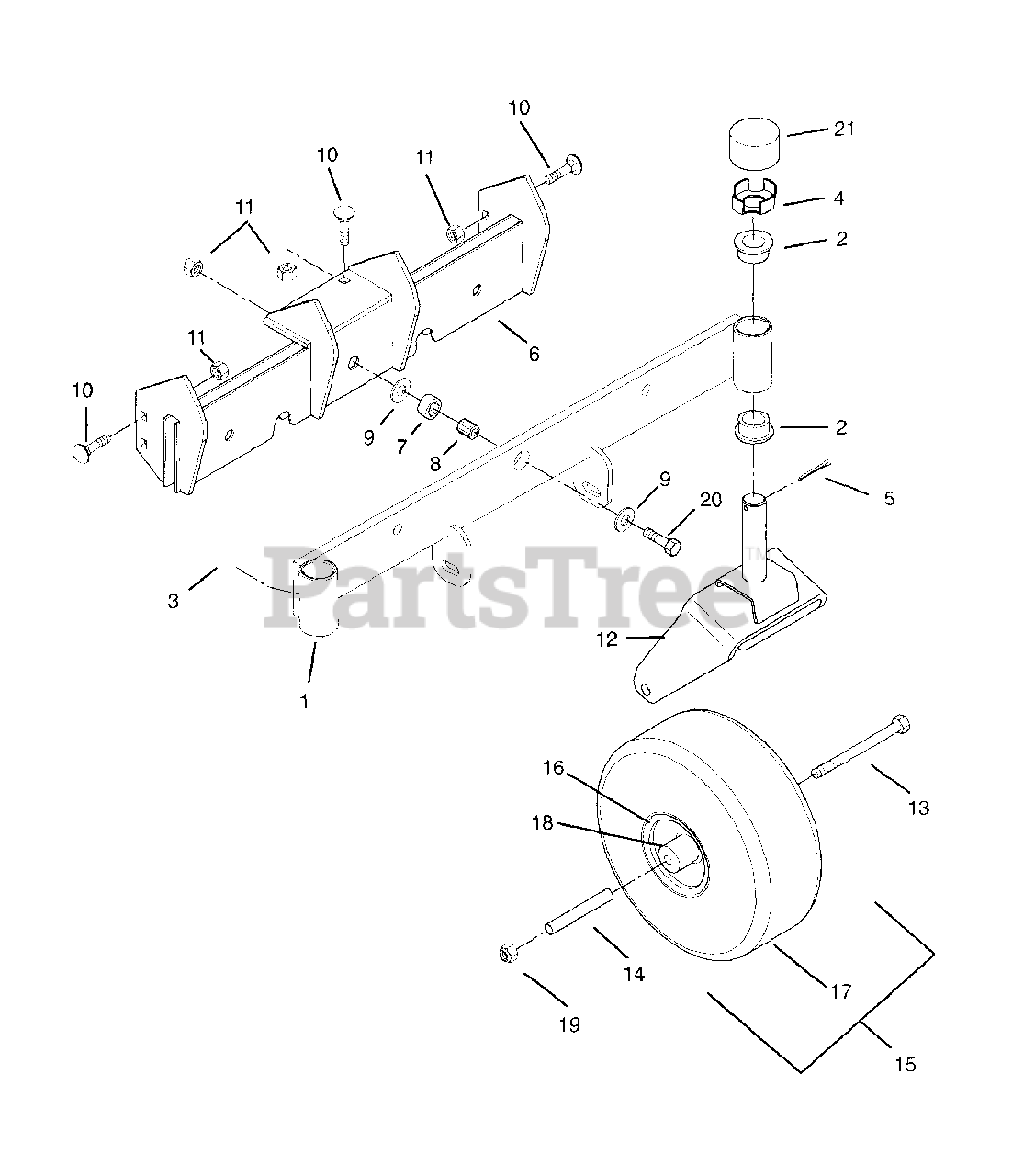

915009 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Front Axle Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

Front Axle Parts Diagram

  • Title

1

Ariens 01542900

AXLE WELDMENT

$

$

Not available

2

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$10.99

$

In Stock, Qty 20+

0

3

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

4

Ariens 01535100

SPINDLE CUP

$

$

Not available

5

Ariens 06712800

@PIN-CTR .18X1.50 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

6

Ariens 01538100

AXLE FRAME WELDMENT

$

$

Not available

7

Ariens 05522000

BSHG-SLV .626X1.000X.524 HEX

$90.99

$

Usually ships in 4-12 days

0

8

Ariens 05522700

BSHG-SLV .377X.623X.775 HEX

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 20+

0

10

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 01543000

CASTER FORK WELDMENT

$

$

Not available

13

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 18

0

14

Ariens 09105200

BUSH.,CASTER FORK

$37.99

$

Usually ships in 4-12 days

0

15

Ariens 07144100

T/WHL 11X4.00-5 RIBBED
(Superseded to 07100124)

Note: (Contains Items 16-18)

$74.99

$

Usually ships in 4-12 days

0

16

Ariens 07145200

RIM ASSY 11X4.00-5

$68.99

$

Usually ships in 4-12 days

0

17

Ariens 07145300

TIRE RIBBED 11X4.00-5
(Superseded to 07101235)

$56.99

$

In Stock, only 4 left!

0

18

Ariens 07145400

RIM BEARING-11X4.00-5 RIM
(Superseded to 05434900)

$13.99

$

In Stock, only 4 left!

0

19

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

20

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

21

Ariens 00337700

HUB CAP

$2.99

$

In Stock, only 2 left!

0
