915014 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 001103 & Above) Front Axle Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

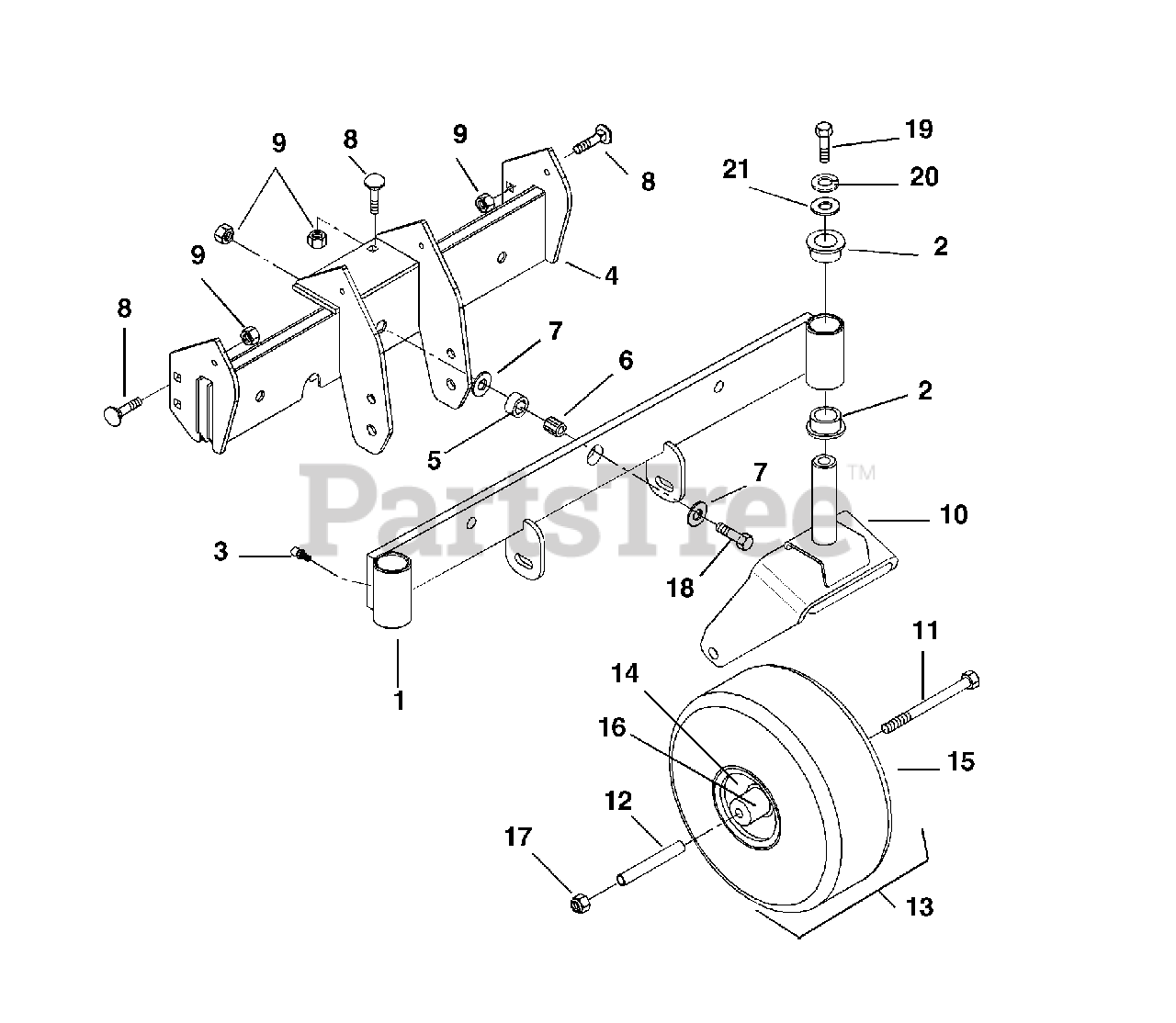

Front Axle Parts Diagram

  • Title

1

Ariens 01542959

AXLE WELDMENT

$85.99

$

Usually ships in 4-12 days

0

2

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 19

0

3

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

4

Ariens 01584959

WELDMENT, AXLE FRAME

$111.74

$

In Stock, only 1 left!

0

5

Ariens 05522000

BSHG-SLV .626X1.000X.524 HEX

$

$

Not available

6

Ariens 05522700

BSHG-SLV .377X.623X.775 HEX

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

8

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 6

0

9

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01547059

FORK - CASTER
(Superseded to 01547051)

$155.99

$

Usually ships in 4-12 days

0

11

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 9

0

12

Ariens 09105200

BUSH.,CASTER FORK

$39.99

$

In Stock, only 2 left!

0

13

Ariens 07144100

T/WHL 11X4.00-5 RIBBED
(Superseded to 07100124)

Note: (Contains Items 16-18)

$83.99

$

In Stock, Qty 5

0

14

Ariens 07145200

RIM ASSY 11X4.00-5

$75.99

$

Usually ships in 4-12 days

0

15

Ariens 07145300

TIRE RIBBED 11X4.00-5
(Superseded to 07101235)

$56.99

$

In Stock, Qty 7

0

16

Ariens 07145400

RIM BEARING-11X4.00-5 RIM
(Superseded to 05434900)

$15.99

$

In Stock, only 2 left!

0

17

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, only 3 left!

0

18

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, only 4 left!

0

19

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 5

0
