915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) 42" Mower Deck Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

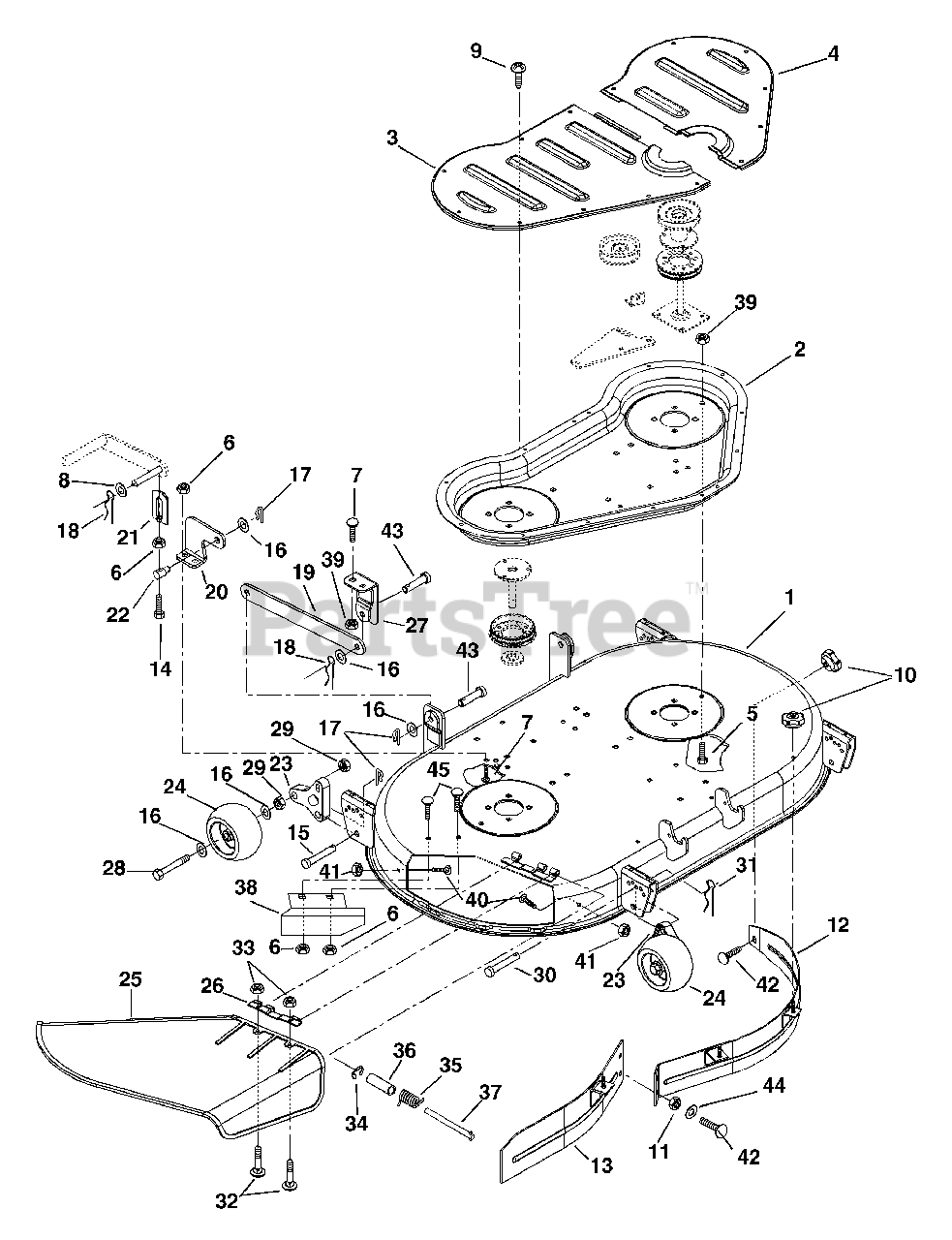

42" Mower Deck Parts Diagram

  • Title

1

Gravely 51503900

Mower-42" Gravely ZT with Decals
(Superseded to 51511400)

$

$

Not available

1

Gravely 51504100

Mower-42" Gravely ZT Assembly Complete

$

$

Not available

2

Gravely 01584251

Reinforcement-Deck
(Superseded to 01565651)

$

$

Not available

3

Gravely 01583300

Cover-Deck Reinforcement Right Hand

$

$

Not available

4

Gravely 01583200

Cover-Deck Reinforcement Left Hand

$65.99

$

Usually ships in 4-12 days

0

5

Gravely 05948700

Bolt-Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223900

Bolt Round Head Square Neck .38-16
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 06436100

Washer-Flat-Steel .640 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07411500

Screw-Tapping Hex Washer Head Thread Rolling .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07532700

Knob
(Superseded to 06543100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06529800

Nut-Lock-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 01584351

Weldment-Baffle Upper Left Hand

$62.99

$

Usually ships in 4-12 days

0

13

Gravely 01584451

Weldment-Baffle Upper Right Hand

$90.99

$

Usually ships in 4-12 days

0

14

Gravely 044609

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05943100)

$3.49

$

In Stock, only 3 left!

0

15

Gravely 06816300

Pin-Clevis .50 x 1.38

$9.49

$

In Stock, only 2 left!

0

16

Gravely 06436600

Washer-Flat-Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 06944800

Clip-Spring

$0.99

$

In Stock, only 2 left!

0

18

Gravely 06711900

Pin-Hair-External .12 x .31 x 2.37

$2.99

$

In Stock, only 3 left!

0

19

Gravely 01583451

Link-Lift

$38.99

$

Usually ships in 4-12 days

0

20

Gravely 01583651

Bracket-Lift

$22.99

$

Usually ships in 4-12 days

0

21

Gravely 03486400

Link-Adjustment

$43.99

$

In Stock, only 2 left!

0

22

Gravely 01582300

Trunnion

$45.99

$

Usually ships in 4-12 days

0

23

Gravely 01585100

Bracket-Roller Bracket Adjustment

$

$

Not available

24

Gravely 03471700

Wheel 5" x 3"
(Superseded to 03905600)

$15.99

$

In Stock, Qty 19

0

25

Gravely 01585500

Deflector-Chute 42"

$78.99

$

In Stock, Qty 5

0

26

Gravely 02709551

Hinge-Plate

$27.99

$

Usually ships in 4-12 days

0

27

Gravely 01583951

Weldment-Deck Stop Bracket

$

$

Not available

28

Gravely 05961900

Bolt-Hex .50-13 x 4.00
(Superseded to 05901734)

$3.99

$

In Stock, only 1 left!

0

29

Gravely 06519700

Nut-Locking-Center-Jam .50-13

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 06816200

Pin-Clevis .31 x 1.38

$

$

Not available

31

Gravely 036075

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06701000)

$2.49

$

In Stock, only 2 left!

0

32

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06530100

Nut-Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

34

Gravely 05706300

Ring-Retaining-External .312 x .025

$0.99

$

Usually ships in 4-12 days

0

35

Gravely 035996

Spring-Torsion .095 x .50 x 1.00
(Superseded to 08307200)

$20.99

$

Usually ships in 4-12 days

0

36

Gravely 035997

Bushing
(Superseded to 02202900)

$5.99

$

In Stock, Qty 6

0

37

Gravely 03624200

Pin

$51.99

$

In Stock, only 1 left!

0

38

Gravely 01582651

Deflector-Baffle

$25.99

$

Usually ships in 4-12 days

0

39

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

40

Gravely 05947000

Bolt-Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

41

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 11

0

43

Gravely 06816400

Pin-Clevis .50 x 1.00

$

$

Not available

44

Gravely 06435700

Washer-Flat-Steel .038 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

45

Gravely 05959400

Bolt-Hex .38-16 x .075
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0
