915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) 42" Mower Deck Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

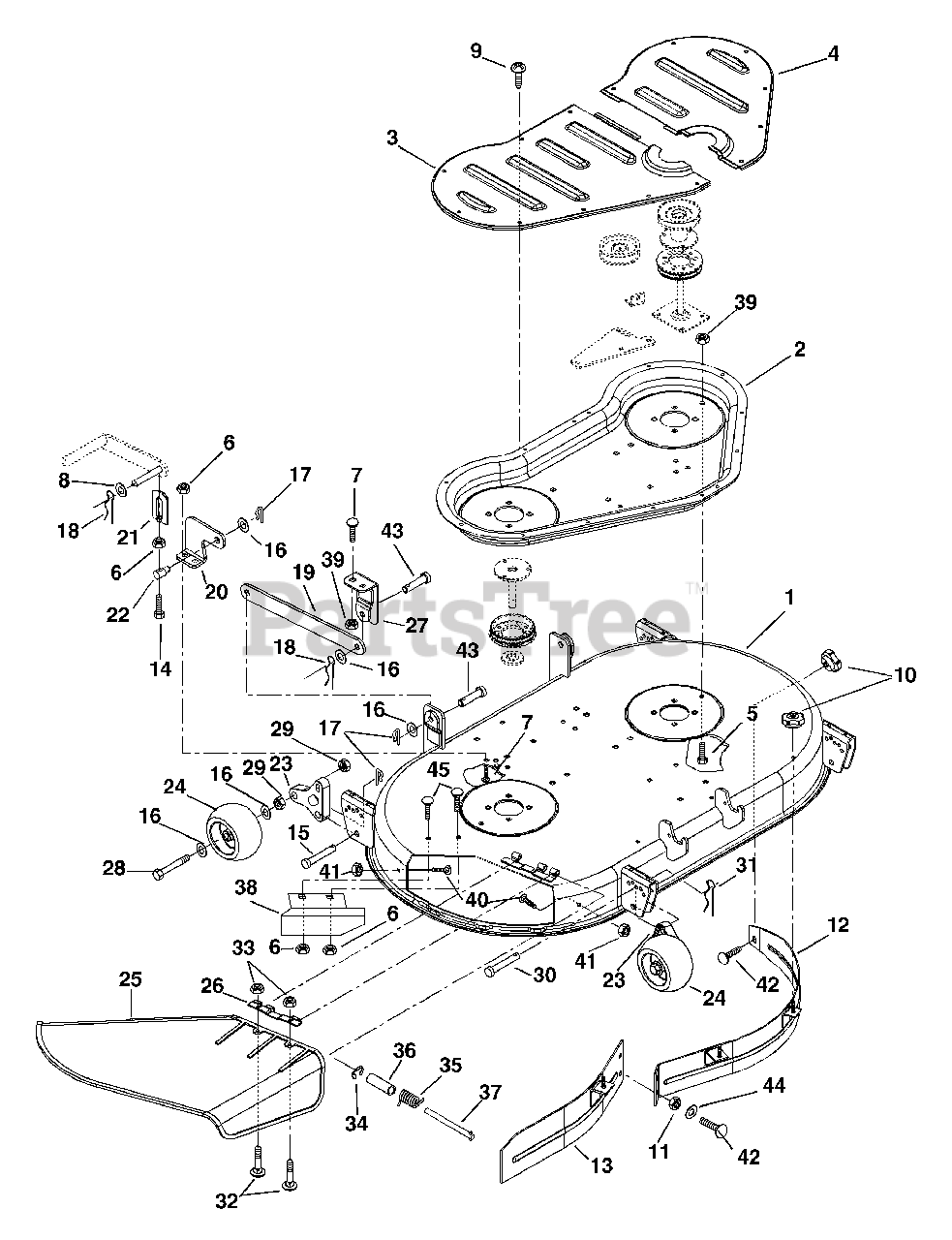

42" Mower Deck Parts Diagram

  • Title

1

Gravely 51503900

MWR, 42" GRAVELY ZT W/DECALS
(Superseded to 51511400)

$

$

Not available

Gravely 51504100

MWR,42"GRAVELY ZT ASSY COMPL.

$

$

Not available

2

Gravely 01584251

REINFORCEMENT, DECK
(Superseded to 01565651)

$

$

Not available

3

Gravely 01583300

BRACKET, BELT ADJUSTMENT

$

$

Not available

4

Gravely 01583200

ARM, BELT ADJUSTMENT

$67.99

$

Usually ships in 4-12 days

0

5

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

8

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07532700

KNOB
(Superseded to 06543100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01584351

WELDMENT, BAFFLE UPPER LH

$118.99

$

Usually ships in 4-12 days

0

13

Gravely 01584451

WELDMENT, BAFFLE UPPER RH

$92.99

$

Usually ships in 4-12 days

0

14

Gravely 044609

BLT-HEX .38-16X2.50 FTH YWZC
(Superseded to 05943100)

$3.99

$

In Stock, only 3 left!

0

15

Gravely 06816300

PIN-CLEV .50X1.38 YWZC

$13.99

$

Usually ships in 4-12 days

0

16

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

17

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

18

Gravely 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, Qty 10

0

19

Gravely 01583451

LINK, LIFT

$40.99

$

Usually ships in 4-12 days

0

20

Gravely 01583651

BRACKET, LIFT

$22.99

$

Usually ships in 4-12 days

0

21

Gravely 03486400

LINK, ADJUSTMENT

$44.99

$

In Stock, only 2 left!

0

22

Gravely 01582300

TRUNNION

$46.99

$

Usually ships in 4-12 days

0

23

Gravely 01585100

BRACKET, ROLLER ADJUST.

$

$

Not available

24

Gravely 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

25

Gravely 01585500

DEFLECTOR, CHUTE 42"

$80.99

$

In Stock, Qty 9

0

26

Gravely 02709551

HINGE PLATE

$28.99

$

In Stock, only 4 left!

0

27

Gravely 01583951

WELDMENT, DECK STOP BRACKET

$

$

Not available

28

Gravely 05961900

BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 06816200

PIN-CLEV .31X1.38 YWZC

$

$

Not available

31

Gravely 036075

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

32

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

34

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

In Stock, Qty 11

0

35

Gravely 035996

SG-TORS .095X.50X 1.0
(Superseded to 08307200)

$21.99

$

In Stock, only 4 left!

0

36

Gravely 035997

BSHG-SLV .334 X .502 X 1.437
(Superseded to 02202900)

$6.49

$

In Stock, only 4 left!

0

37

Gravely 03624200

PIN

$54.99

$

In Stock, only 2 left!

0

38

Gravely 01582651

DEFLECTOR (BAFFLE)

$25.99

$

Usually ships in 4-12 days

0

39

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

40

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

43

Gravely 06816400

PIN-CLEV .50X1.00 YWZC

$

$

Not available

44

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0
