915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Clutch Shaft - Hydro Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

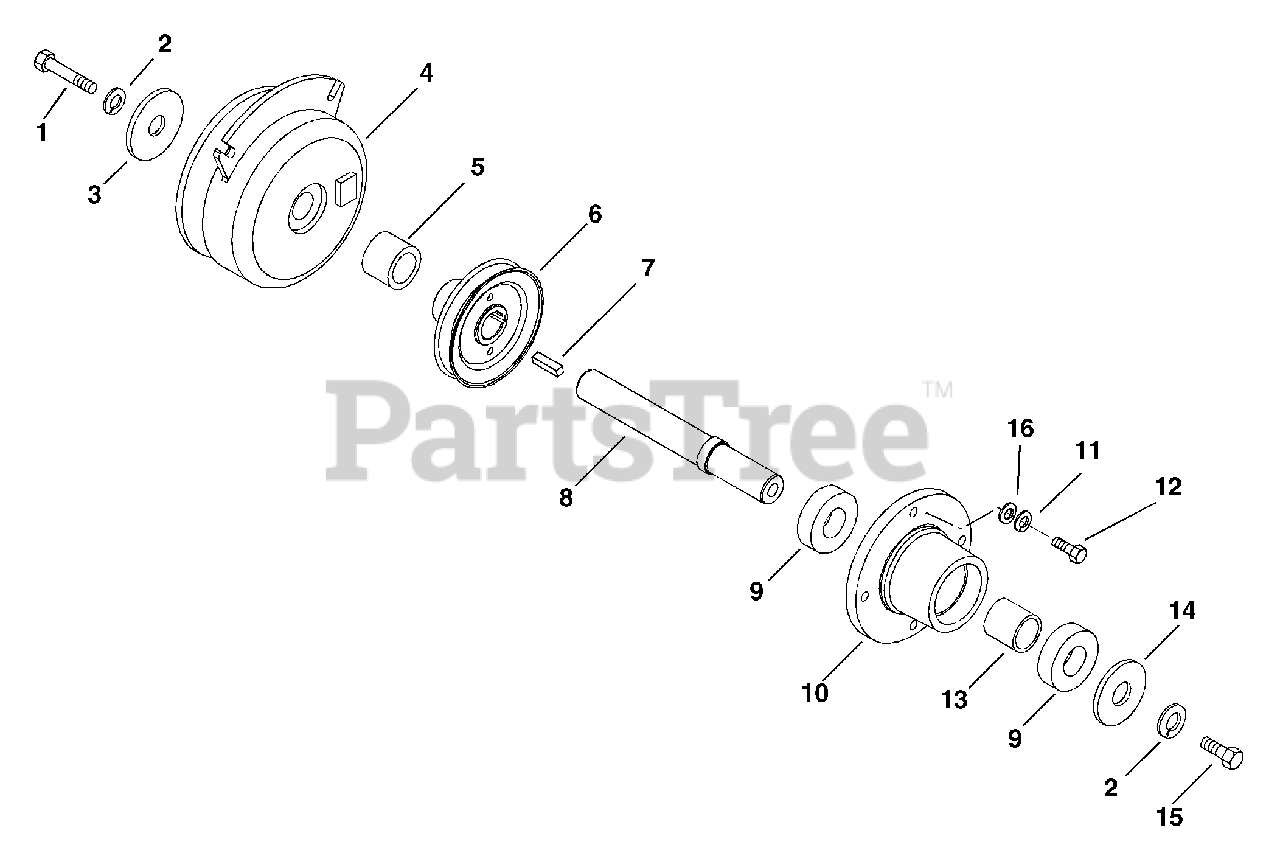

Clutch Shaft - Hydro Parts Diagram

  • Title

1

Gravely 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

Note: (Model 015)

$2.99

$

In Stock, Qty 7

0

Gravely 05965600

BLT-HEX .44-20X1.50 GR5 YWZC
(Superseded to 05902004)

Note: (Model 016)

$6.49

$

In Stock, Qty 10

0

2

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

4

Gravely 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

Note: (Model 015)

$266.99

$

Usually ships in 4-12 days

0

Gravely 03357900

CLUTCH, ELECTRIC - WARNER

Note: (Model 016)

$501.99

$

Usually ships in 4-12 days

0

5

Gravely 01531400

SPACER 1.004X1.500X.740

Note: (Model 016)

$31.99

$

In Stock, only 1 left!

0

6

Gravely 01557500

SHEAVE, JACKSHAFT 4.50

Note: (Model 015)

$58.99

$

Usually ships in 4-12 days

0

Gravely 01558100

SHEAVE, JACKSHAFT 4.50

Note: (Model 016)

$76.99

$

In Stock, only 1 left!

0

7

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

Note: (Model 015)

$3.99

$

In Stock, Qty 20+

0

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

Note: (Model 016)

$3.99

$

In Stock, Qty 13

0

8

Gravely 01557600

SHAFT - JACK

Note: (Model 015)

$159.99

$

Usually ships in 4-12 days

0

Gravely 01558000

SHAFT - JACK

Note: (Model 016)

$212.99

$

In Stock, only 4 left!

0

9

Gravely 019072

BRG-BALL .984X2.04X.59
(Superseded to 05421500)

$15.99

$

In Stock, Qty 6

0

10

Gravely 00506751

HOUSING, TRANS SPNDL, BLACK

$188.99

$

Usually ships in 4-12 days

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 00506800

SPACER 1.0X1.253X1.26

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$7.49

$

In Stock, only 2 left!

0

15

Gravely 05964500

BLT-HEX .44-20X1.00 GR5 YWZC

$

$

Not available

16

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0
