915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Frame Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

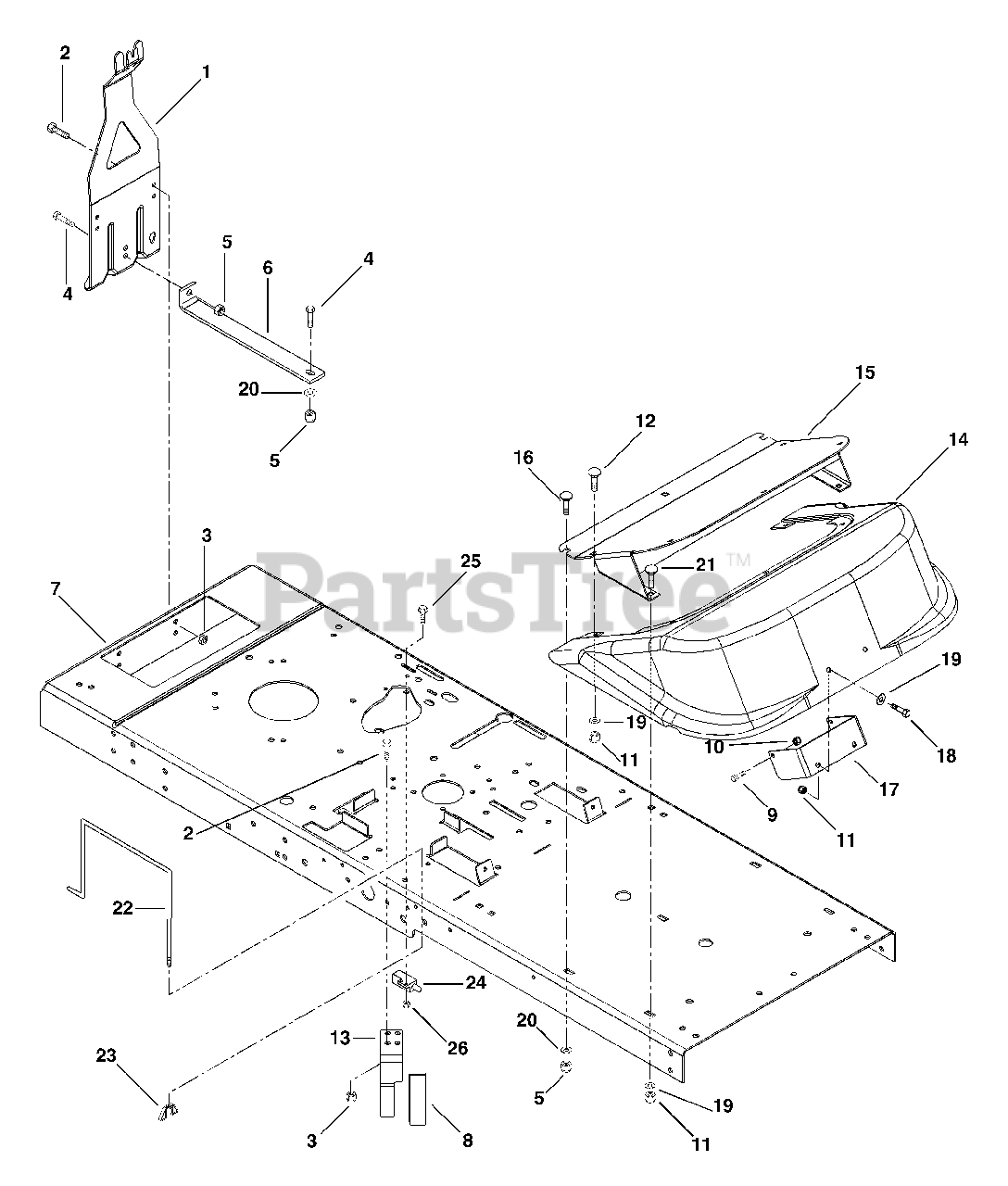

Frame Parts Diagram

  • Title

1

Gravely 01553553

HITCH, TRAILER
(Superseded to 01553551)

$

$

Not available

2

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 01541200

BRACE

$

$

Not available

7

Gravely 01553753

FRAME

$

$

Not available

8

Gravely 045374

GRIP
(Superseded to 07509400)

$

$

Not available

9

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

10

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

11

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

12

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 18

0

13

Gravely 01557851

STOP - CLUTCH

$

$

Not available

14

Gravely 01550053

SHROUD, FOOTREST

$82.99

$

Usually ships in 4-12 days

0

15

Gravely 01552851

FOOTREST, WLDM'T

$45.99

$

Usually ships in 4-12 days

0

16

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

17

Gravely 01554351

BRACKET, FOOTREST

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

23

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

24

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

25

Gravely 07049200

BLT-HEX FWH #10X.750 YWZC

$

$

Not available

26

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
