915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Idlers Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

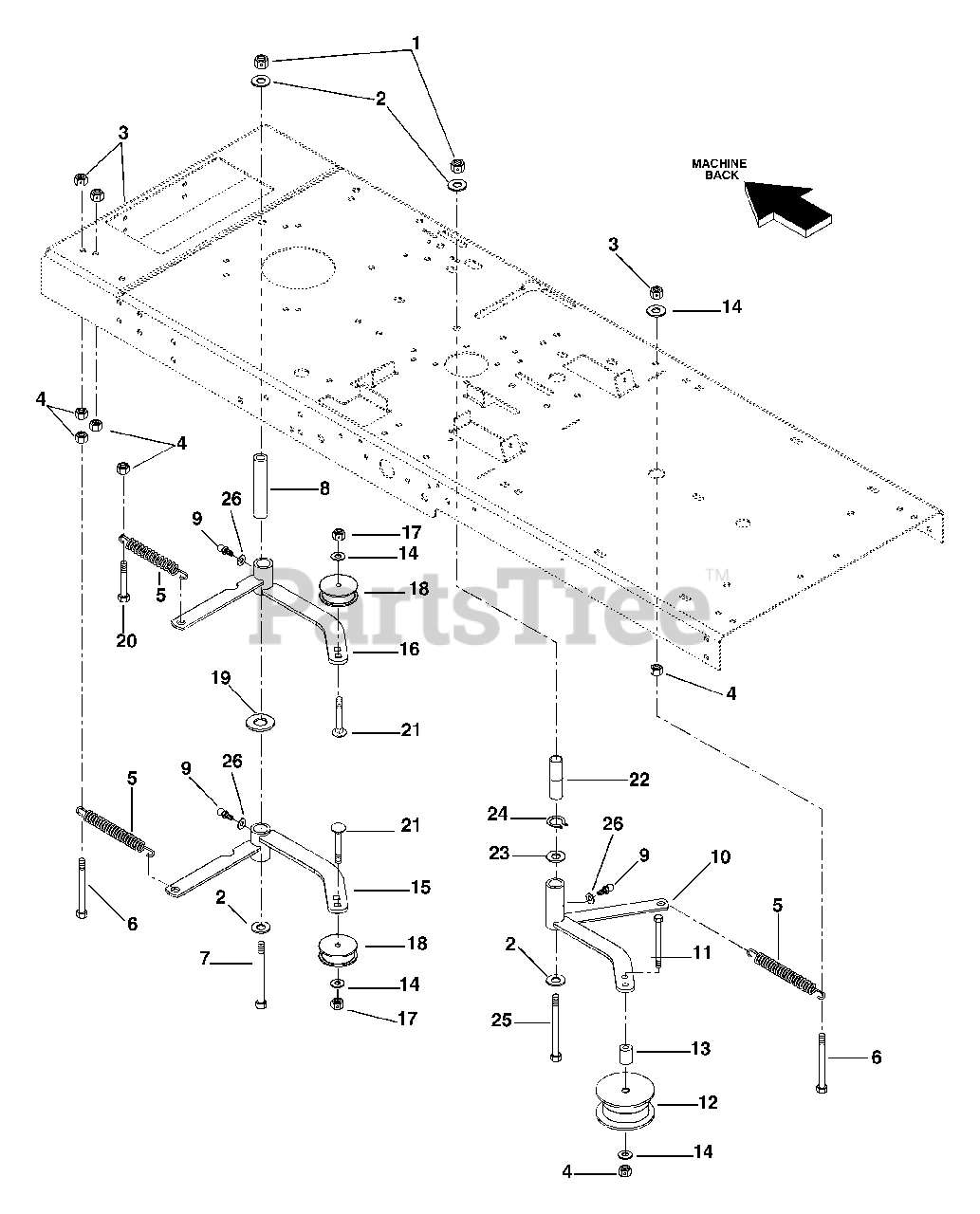

Idlers Parts Diagram

  • Title

1

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

2

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 08334700

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

6

Gravely 05965400

BLT-HEX .38-16X4.00 GR5 YWZC

$3.99

$

In Stock, only 1 left!

0

7

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

8

Gravely 01557200

SPACER, IDLER

$54.99

$

Usually ships in 4-12 days

0

9

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

10

Gravely 01548300

WELDMENT, DECK IDLER ARM

Note: (Model 016)

$

$

Not available

Gravely 01582700

WELDMENT, IDLER ARM

Note: (Model 015)

$169.99

$

Usually ships in 4-12 days

0

11

Gravely 05970400

BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

Note: (Model 016)

$5.49

$

In Stock, only 2 left!

0

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

Note: (Model 015)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 07324700

IDLER 4.0" DIA

$85.99

$

Usually ships in 4-12 days

0

13

Gravely 01544100

SPACER, IDLER - 48"

Note: (Models with 48" Decks)

$39.99

$

Usually ships in 4-12 days

0

14

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 01557300

IDLER ARM WLDM'T TRANSAXLE

$118.99

$

Usually ships in 4-12 days

0

16

Gravely 01557400

WLDM'T JACKSHAFT IDLER ARM

$

$

Not available

17

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07324600

IDLER 3.5" DIA

$40.99

$

In Stock, Qty 5

0

19

Gravely 06445500

WASHER, .937 X 2.25 YWZC

$6.49

$

Usually ships in 4-12 days

0

20

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06215300

BLT-RDHDSQNK .38-16X1.50 G2YZ
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 01548400

SPACER, IDLER

$

$

Not available

23

Gravely 06436900

WSHR-FL-STL .880X1.250X.062YWZ

$2.49

$

In Stock, Qty 20+

0

24

Gravely 05702600

RG-RTNG-EXT .875X.042

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 05962300

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 11

0

26

Gravely 06442300

WSHR-FL-STL.250X.56X.049 YWZC

$2.49

$

Usually ships in 4-12 days

0
