915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Parking Brake And Dump Valves Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

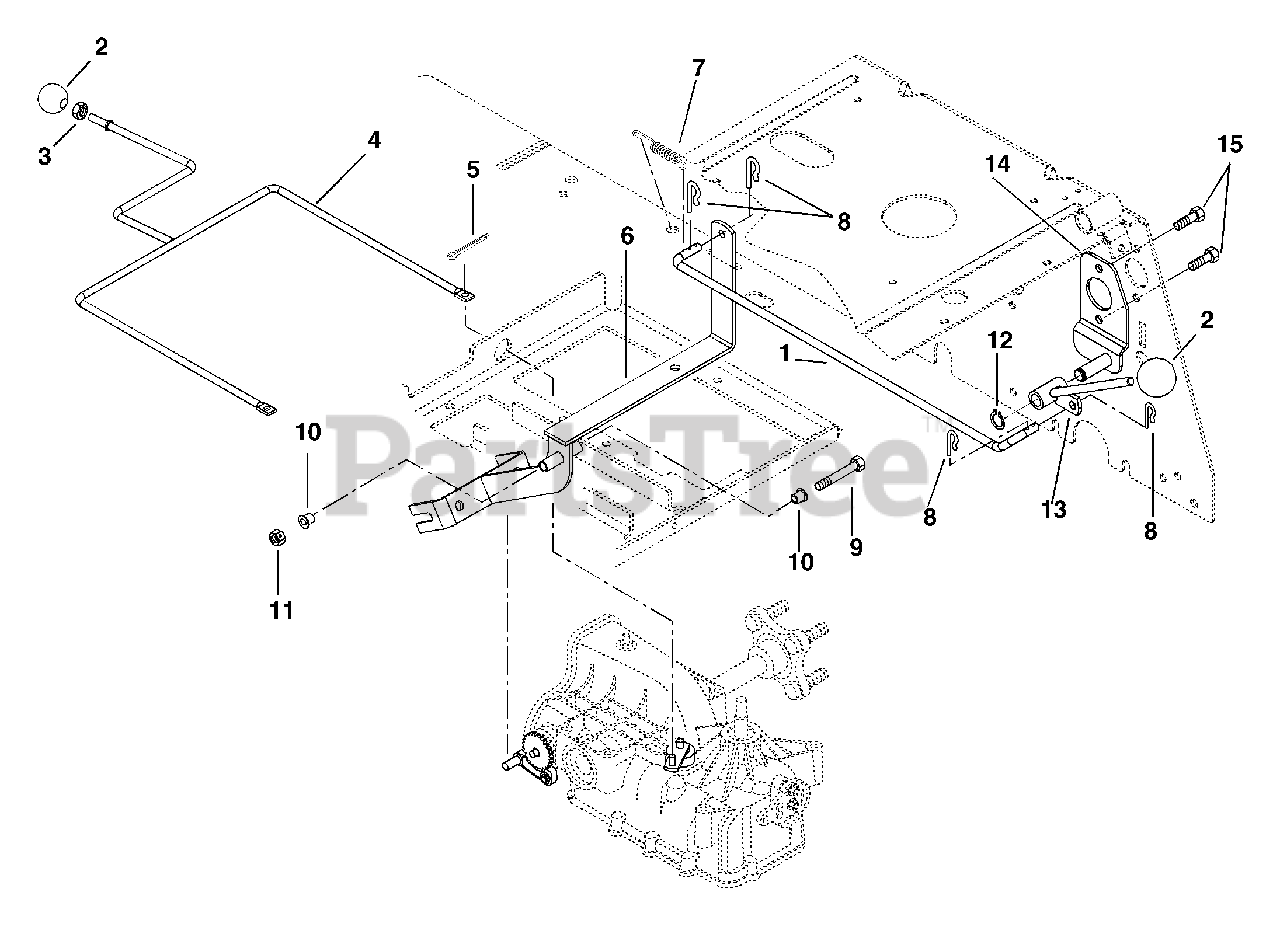

Parking Brake And Dump Valves Parts Diagram

  • Title

1

Gravely 01555600

ROD - BRAKE

$

$

Not available

2

Gravely 07515900

KNOB, BALL 5/16-18 X 1.5

$22.99

$

In Stock, only 1 left!

0

3

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

4

Gravely 01540100

DUMP VALVE WELDMENT

$

$

Not available

5

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 01545300

BRAKE WELDMENT
(Superseded to 01560551)

$73.99

$

Usually ships in 4-12 days

0

7

Gravely 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$6.49

$

In Stock, only 2 left!

0

8

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05966300

BLT-HEX .25-20X3.00 YWZC
(Superseded to 05902128)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 041244

BSHG-FLG .257X.38X1.080 NYL
(Superseded to 05521000)

$

$

Not available

11

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 01555951

BRAKE LEVER
(Superseded to 01555900)

$

$

Not available

14

Gravely 01555800

PIVOT - BRAKE LEVER

$

$

Not available

15

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0
