915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 000619) 48" Mower Spindle Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

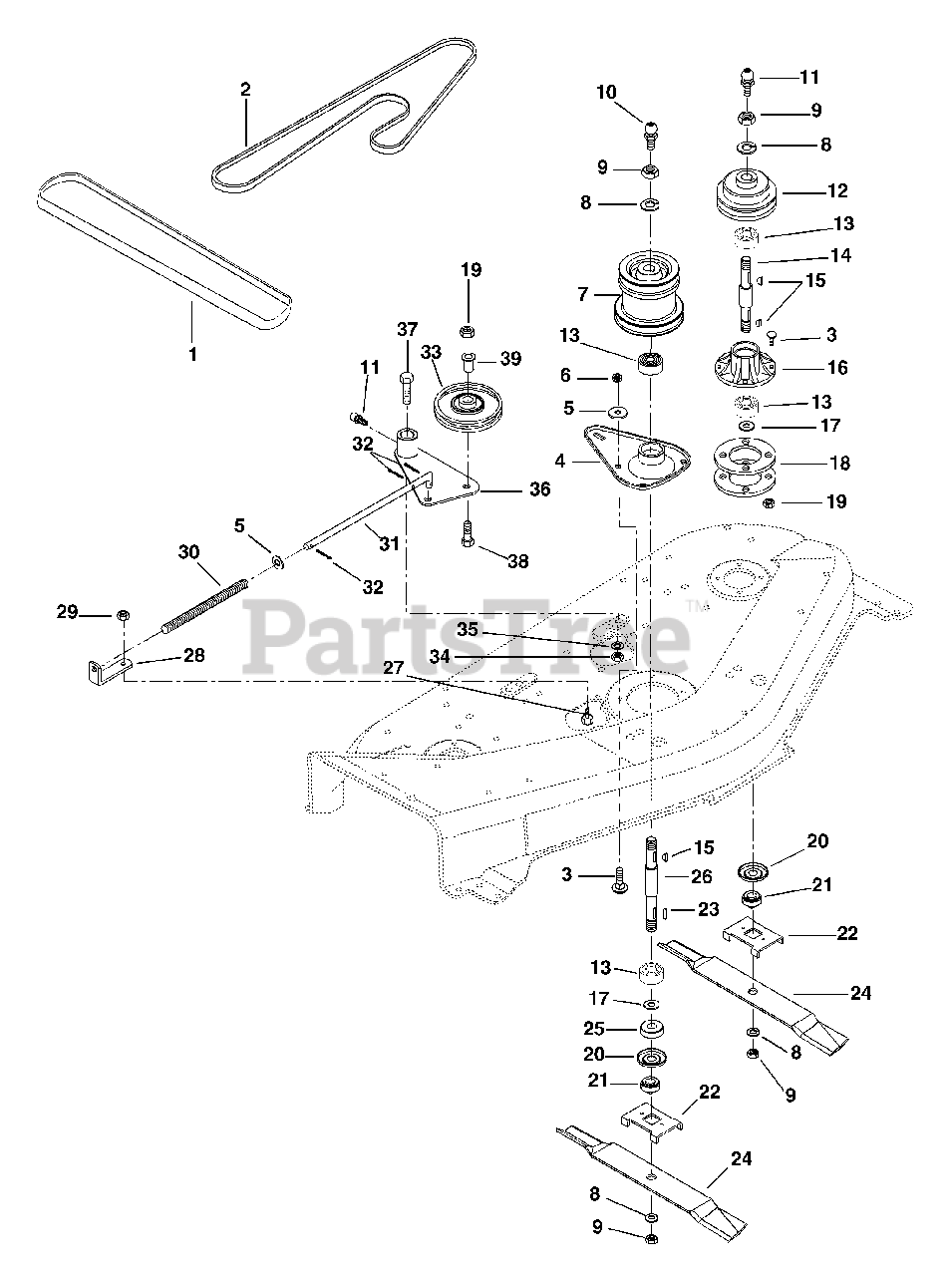

48" Mower Spindle Parts Diagram

  • Title

1

Gravely 07234500

V-BELT, HA-WRAPPED

$39.99

$

In Stock, Qty 5

0

2

Gravely 07234400

V-BELT, HA-RAW EDGE

$96.99

$

In Stock, only 3 left!

0

3

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

4

Gravely 03434951

HOUSING, SPINDLE

$

$

Not available

5

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 01543300

SHEAVE, 48" DECK

$

$

Not available

8

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0

9

Gravely 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

10

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$4.99

$

In Stock, Qty 12

0

11

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

12

Gravely 03401800

SHEAVE

$191.99

$

Usually ships in 4-12 days

0

13

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

14

Gravely 039552

SPINDLE SHAFT W/ZERK
(Superseded to 53115100)

$75.99

$

In Stock, only 2 left!

0

15

Gravely 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.99

$

In Stock, Qty 12

0

16

Gravely 039595

SPINDLE HOUSING
(Superseded to 03433500)

$

$

Not available

17

Gravely 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 9

0

18

Gravely 039596

SPACER, SPINDLE
(Superseded to 03433600)

$

$

Not available

19

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 7

0

21

Gravely 039559

RETAINER HUB
(Superseded to 03037500)

$73.99

$

In Stock, only 1 left!

0

22

Gravely 03485500

BLADE TRAY 48

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 035893

KEY-SQ .188X.625X.188 SAE 61
(Superseded to 06601700)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 03123751

BLADE
(Superseded to 03123700)

$23.99

$

In Stock, Qty 13

0

25

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 53402400

SPINDLE SHAFT W/ZERK & KEY

$81.99

$

In Stock, Qty 5

0

27

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

28

Gravely 03418851

BRACKET

$79.99

$

Usually ships in 4-12 days

0

29

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 039609

SG-COMP .106X.63X 12.0 WLD 62
(Superseded to 08301800)

$

$

Not available

31

Gravely 039599

ROD-IDLER SPRING
(Superseded to 03433900)

$98.99

$

Usually ships in 4-12 days

0

32

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

33

Gravely 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$38.99

$

In Stock, Qty 6

0

34

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

35

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

36

Gravely 03433751

IDLER ARM
(Superseded to 53401000)

$104.99

$

In Stock, only 4 left!

0

37

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

38

Gravely 039451

BLT-BTHD .38-16X1.25 GR5
(Superseded to 07006300)

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 036849

SPACER -FLANGED .390X.500X.781
(Superseded to 03114500)

$10.99

$

In Stock, Qty 12

0
