915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 000619) Clutch Shaft - Hydro Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

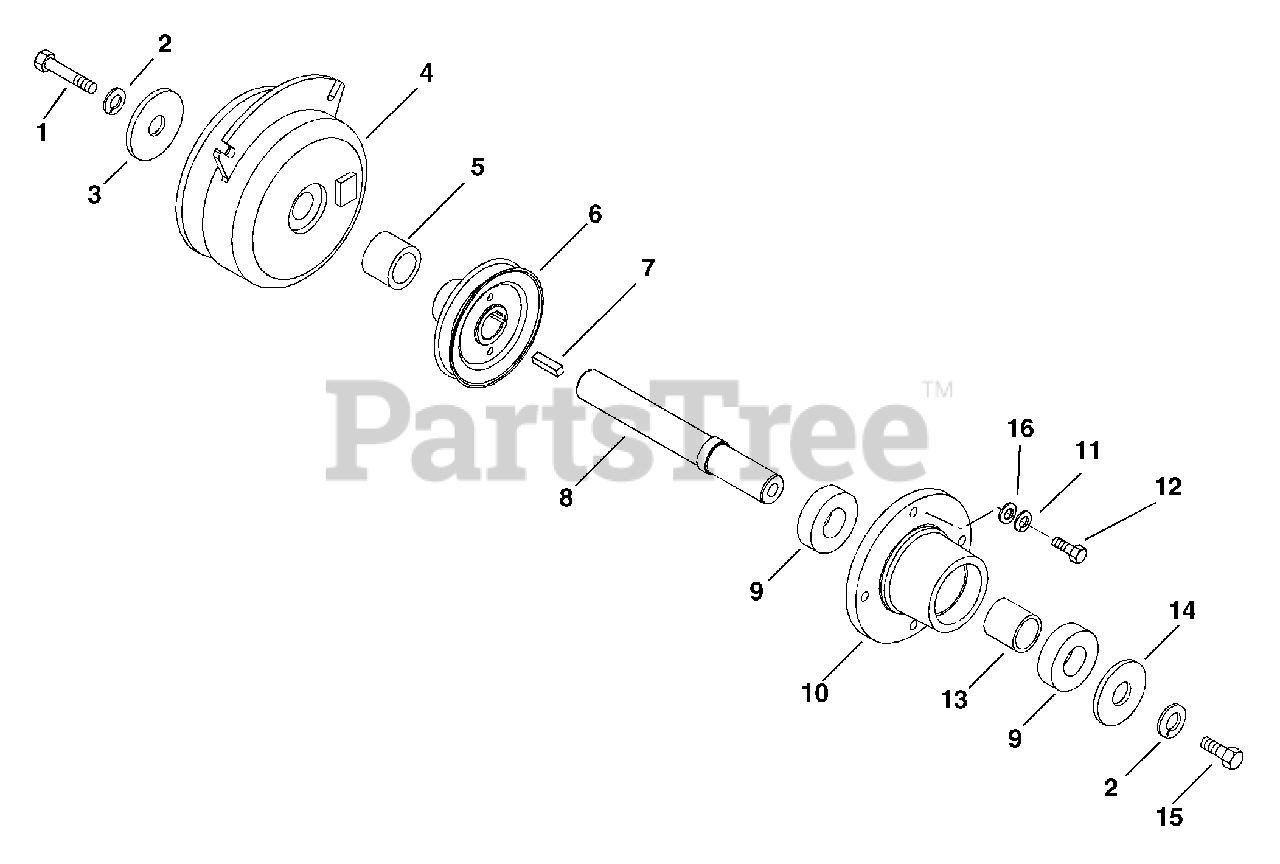

Clutch Shaft - Hydro Parts Diagram

  • Title

1

Gravely 05964600

Bolt-Hex .44-20 x 2.50 Grade 5
(Superseded to 05902017)

Note: (Model 015)

$2.99

$

In Stock, only 2 left!

0

1

Gravely 05965600

Bolt-Hex .44-20 x 1.50 Grade 5
(Superseded to 05902004)

Note: (Model 016)

$6.49

$

In Stock, only 2 left!

0

2

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 06443600

Washer-Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$7.99

$

In Stock, Qty 14

0

4

Gravely 03643100

Clutch-Electric/Brake

Note: (Model 015)

$266.99

$

Usually ships in 4-12 days

0

4

Gravely 03357900

Clutch-Electric/Brake

Note: (Model 016)

$501.99

$

In Stock, only 1 left!

0

5

Gravely 01531400

Spacer 1.004 x 1.500 x .740

Note: (Model 016)

$31.99

$

In Stock, only 1 left!

0

6

Gravely 01557500

Sheave- Jackshaft 4.50

Note: (Model 015)

$58.99

$

Usually ships in 4-12 days

0

6

Gravely 01558100

Sheave- Jackshaft 4.50

Note: (Model 016)

$76.99

$

In Stock, only 1 left!

0

7

Gravely 06602700

Key-Square .25 x 1.00 x .25 SAE

Note: (Model 015)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 06602200

Key-Square .25 x 1.00 x .25 SAE

Note: (Model 016)

$3.99

$

In Stock, Qty 15

0

8

Gravely 01557600

Shaft-Jack

Note: (Model 015)

$159.99

$

Usually ships in 4-12 days

0

8

Gravely 01558000

Shaft-Jack

Note: (Model 016)

$212.99

$

In Stock, only 4 left!

0

9

Gravely 019072

Bearing-Ball .984 x 2.04 x .59
(Superseded to 05421500)

$15.99

$

In Stock, Qty 8

0

10

Gravely 00506751

Housing-Transmission Spindle

$188.99

$

Usually ships in 4-12 days

0

11

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 14

0

12

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 00506800

Spacer 1.00 x .253 x 1.26

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 06443500

Washer-Flat-Steel .463 x 1.38 x .25

$7.49

$

In Stock, only 2 left!

0

15

Gravely 05964500

Bolt-Hex .44-20 x 1.00 Grade 5

$

$

Not available

16

Gravely 06437500

Washer-Flat-Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

Usually ships in 4-12 days

0
