915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 000619) Controls Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

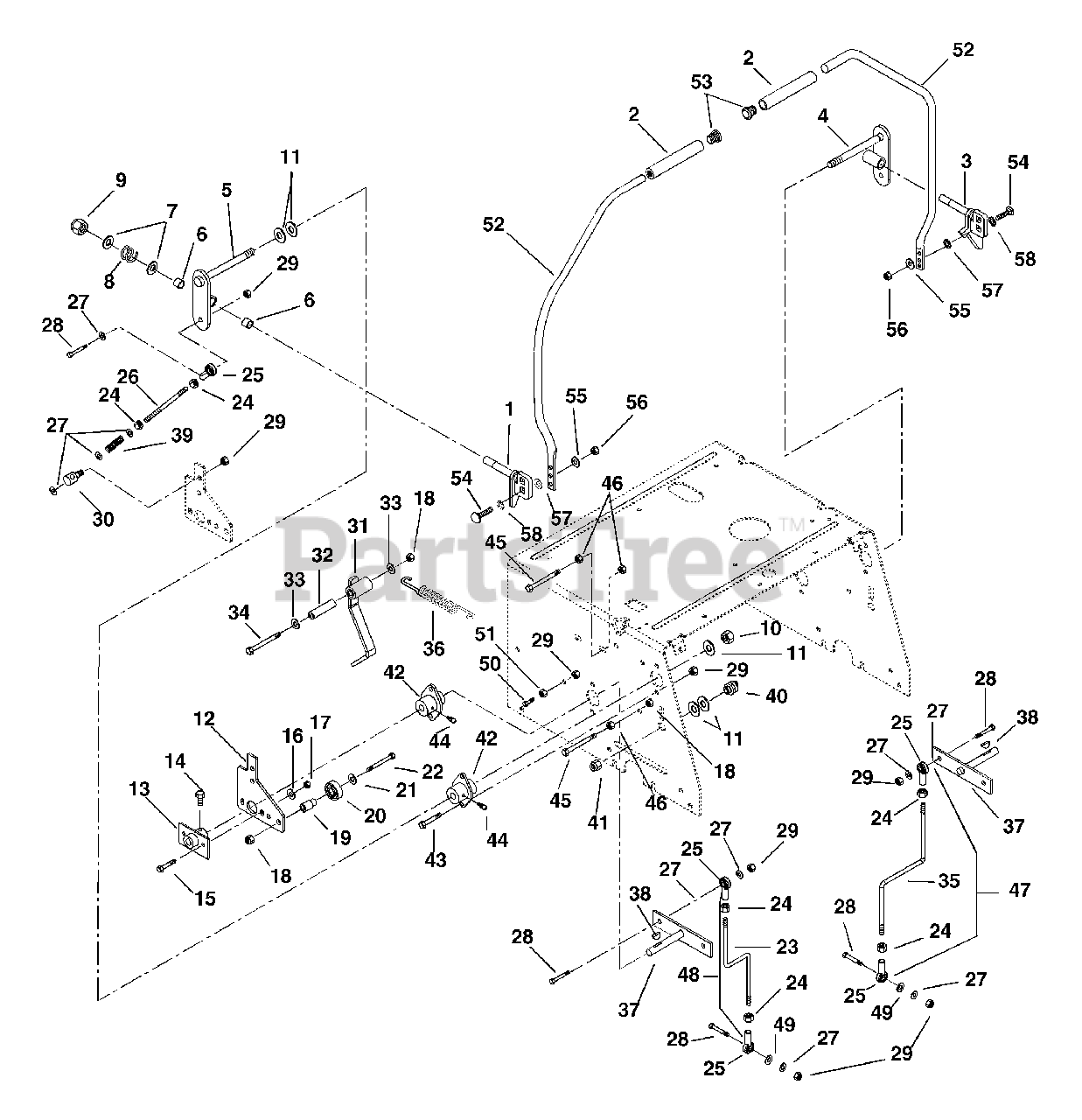

Controls Parts Diagram

  • Title

1

Gravely 01547200

RH LEVER, WELDMENT
(Superseded to 01572100)

$143.99

$

Usually ships in 4-12 days

0

2

Gravely 09246800

GRIP - HANDLEBAR

$13.99

$

In Stock, Qty 20+

0

3

Gravely 01547300

LH LEVER, WELDMENT
(Superseded to 01572200)

$

$

Not available

4

Gravely 01538900

CONTROL WELDMENT LH YWZC

$

$

Not available

5

Gravely 01538800

CONTROL WELDMENT RH YWZC

$

$

Not available

6

Gravely 00510500

BUSHING, NYLON .5 X .62 X .5LG

$

$

Not available

7

Gravely 00515700

WASHER, PLASTIC .12X.53.1.12

$

$

Not available

8

Gravely 00516200

SPRING, COMPRESSION

$

$

Not available

9

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

10

Gravely 06530000

NUT-LK-CTR .50-20 YWZC

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 01539700

ARM, SPEED CONTROL

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 01525500

ARM, SPEED CONTROL

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

15

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

16

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09107200

HUB, BRG. MOUNT

$

$

Not available

20

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 01539900

ROD, TRANSAXLE RH
(Superseded to 01542800)

$

$

Not available

24

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

25

Gravely 01542600

ROD END, FEMALE 5/16
(Superseded to 03787100)

$18.99

$

In Stock, only 1 left!

0

26

Gravely 01536000

ROD

$

$

Not available

27

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 01539000

PIVOT, ROD YWZC

$

$

Not available

31

Gravely 09107400

WLDM'T, NEUTRAL DETENT

$

$

Not available

32

Gravely 049022

BUSH.,S.385X.610X1.80 ST
(Superseded to 08831500)

$6.49

$

In Stock, only 2 left!

0

33

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

35

Gravely 01539800

ROD, TRANSAXLE LH
(Superseded to 01542700)

$

$

Not available

36

Gravely 08320200

SG-TENS .085X.60X5.13 WLD8.3

$40.99

$

In Stock, only 3 left!

0

37

Gravely 01541100

PUMP CONTROL WELDMENT RH

$6.99

$

Usually ships in 4-12 days

0

38

Gravely 122547

Key-Woodruff .13 x .75

$

$

Not available

39

Gravely 08333400

SG, VARIBLE RATE

$

$

Not available

40

Gravely 01526100

SWITCH, NEUTRAL START N.O.

$

$

Not available

41

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 01522000

BUSHING, FLANGED

$35.99

$

In Stock, only 1 left!

0

43

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

45

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

46

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 01542800

TRANSAXLE ROD ASSEMBLY, RH

Note: (Contains Item 23 & two each of Items 24 & 25)

$

$

Not available

48

Gravely 01542700

TRANSAXLE ROD ASSEMBLY, LH

Note: (Contains Item 35 & two each of Items 24 & 25)

$

$

Not available

49

Gravely 06439700

WSHR-FL-STL .344X1.375X.075YWZ
(Superseded to 06446900)

$2.99

$

In Stock, Qty 5

0

50

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

51

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

52

Gravely 00568700

HANDLEBAR, LARGE FRAME

$

$

Not available

53

Gravely 09211400

CAPLUG - HANDLEBAR

$3.49

$

In Stock, Qty 20+

0

54

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

55

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

56

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

57

Gravely 06307200

WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, Qty 9

0

58

Gravely 06304000

WSHR-LK-INT .438 YWZC

$3.99

$

Usually ships in 4-12 days

0
