915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 000619) Hanger Arm (48" Decks Only) Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

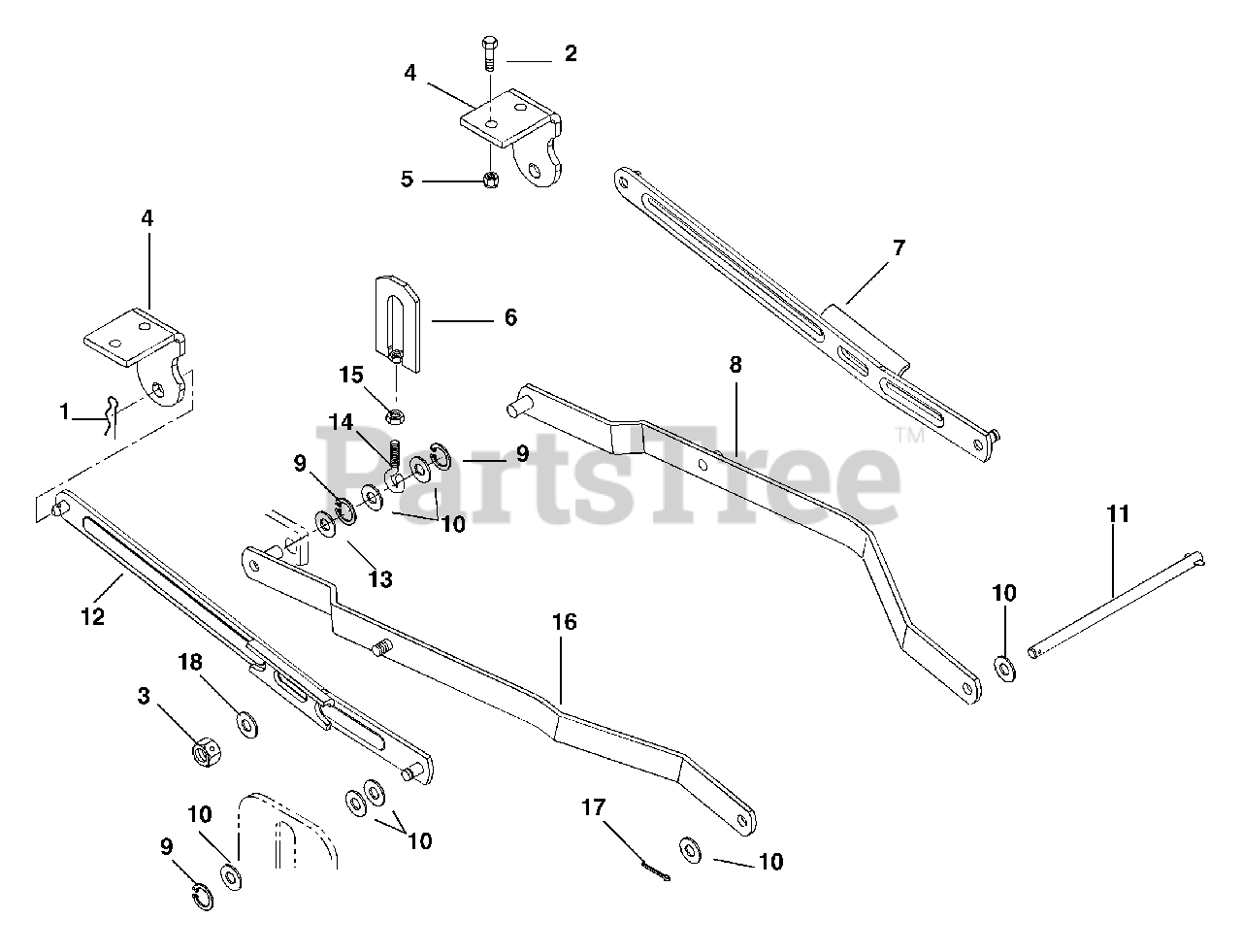

Hanger Arm (48" Decks Only) Parts Diagram

  • Title

1

Gravely 06711900

Pin-Hair External .12 x .31 x 2.37

$2.99

$

In Stock, only 3 left!

0

2

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 06535300

Nut-Locking-Center .625-11

$2.99

$

In Stock, only 1 left!

0

4

Gravely 01519551

Rear Hanger

$

$

Not available

5

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03486400

Adjuster Link

$43.99

$

In Stock, only 2 left!

0

7

Gravely 01534900

Rear Hanger, Left Hand
(Superseded to 51504200)

$

$

Not available

8

Gravely 01545700

Left Hand Lift Arm
(Superseded to 51504400)

$

$

Not available

9

Gravely 05717100

Ring-Retaining-External .500 x .050

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06442800

Washer-Flat-Steel .656 x .312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 01535900

Pin

$39.99

$

Usually ships in 4-12 days

0

12

Gravely 01535000

Rear Hanger, Right Hand
(Superseded to 51504300)

$

$

Not available

13

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 07030000

Hanger

$7.99

$

In Stock, only 1 left!

0

15

Gravely 06535900

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 10

0

16

Gravely 01545800

Right Hand Lift Arm
(Superseded to 51504500)

$93.99

$

In Stock, only 1 left!

0

17

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 12

0

18

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0
