915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 000619) Hanger Arm (48" Decks Only) Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

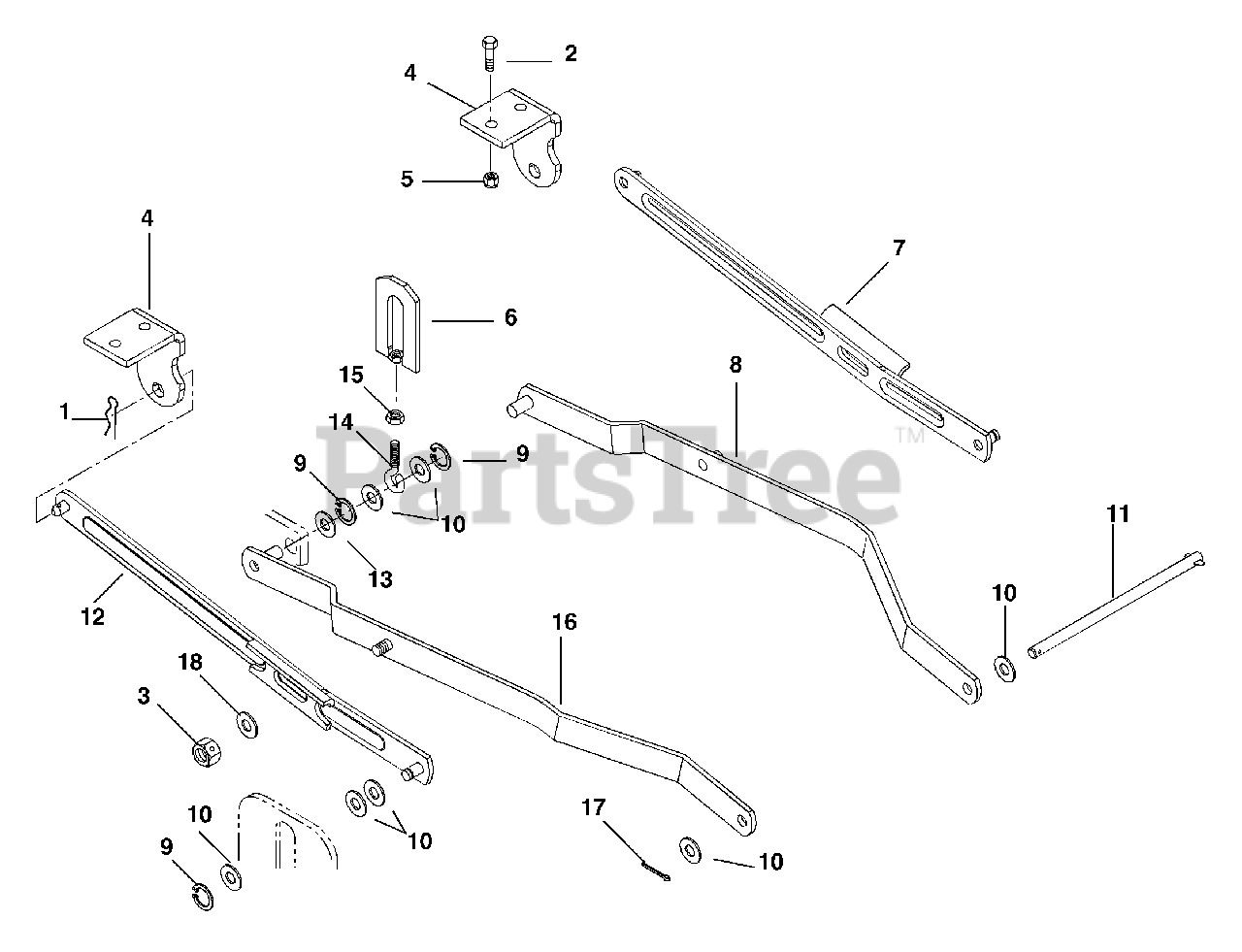

Hanger Arm (48" Decks Only) Parts Diagram

  • Title

1

Gravely 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, Qty 10

0

2

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

3

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

4

Gravely 01519551

REAR HANGER

$

$

Not available

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03486400

LINK, ADJUSTMENT

$44.99

$

In Stock, only 2 left!

0

7

Gravely 01534900

REAR HANGER, L.H.
(Superseded to 51504200)

$

$

Not available

8

Gravely 01545700

ARM, LH LIFT
(Superseded to 51504400)

$

$

Not available

9

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 01535900

PIN

$

$

Not available

12

Gravely 01535000

REAR HANGER, R.H.
(Superseded to 51504300)

$

$

Not available

13

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$8.49

$

In Stock, Qty 6

0

15

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 01545800

ARM, RH LIFT
(Superseded to 51504500)

$

$

Not available

17

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

18

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0
