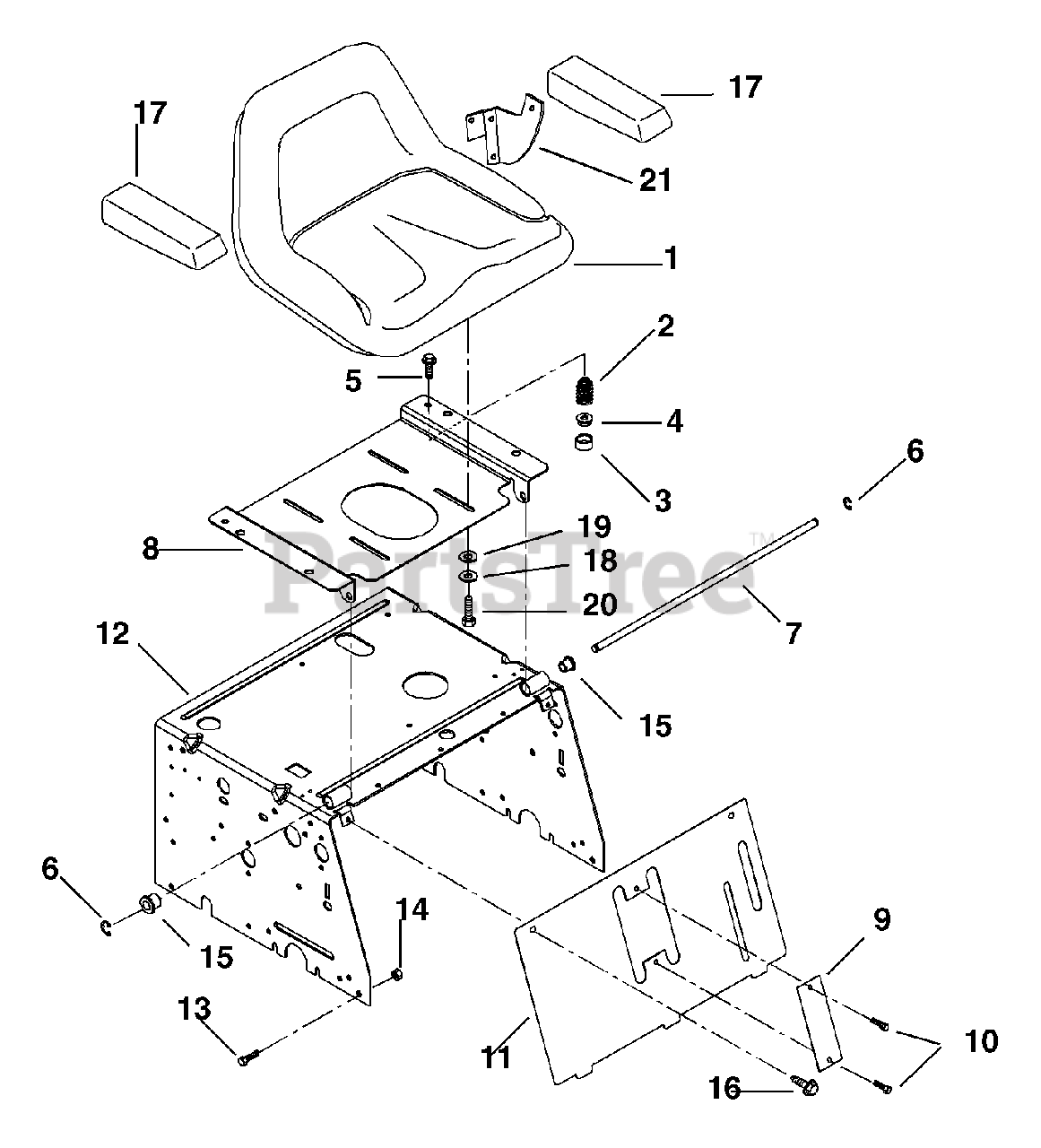

915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 000619) Seat And Support Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

Seat And Support Parts Diagram

  • Title

1

Gravely 01546100

Seat

$

$

Not available

2

Gravely 00571600

Spring-Compression 2.9L x 2.02 OD

$

$

Not available

3

Gravely 00571500

Boot-Seat Spring

$

$

Not available

4

Gravely 06534800

Nut-Locking, Flange .375-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07028500

Bolt-Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, only 1 left!

0

6

Gravely 05710200

Ring-Retaining-External .500 x .042

$0.99

$

In Stock, Qty 20+

0

7

Gravely 01168900

Axle-Front

$64.99

$

Usually ships in 4-12 days

0

8

Gravely 01554451

Plate-Seat

$

$

Not available

9

Gravely 01555453

Plate

$

$

Not available

10

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

11

Gravely 01556253

Panel-Weldment

$81.99

$

Usually ships in 4-12 days

0

12

Gravely 01553653

Support-Seat Weldment

$74.99

$

Usually ships in 4-12 days

0

13

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06529600

Nut-Locking .375-16 Grade A
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 034738

Bushing-Flange
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

16

Gravely 07414400

Screw, Tapping .31-18 x .75
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

17

Gravely 01552900

Arm Rest

$

$

Not available

18

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

20

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

21

Gravely 01553100

Bracket-Left Hand Armrest

$25.99

$

Usually ships in 4-12 days

0

21

Gravely 01553000

Bracket-Right Hand Armrest

$

$

Not available

21

Gravely 01553200

Hardware Pack, Armrest Kit

$

$

Not available
