915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000620 & Above) 48" Mower Pan Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

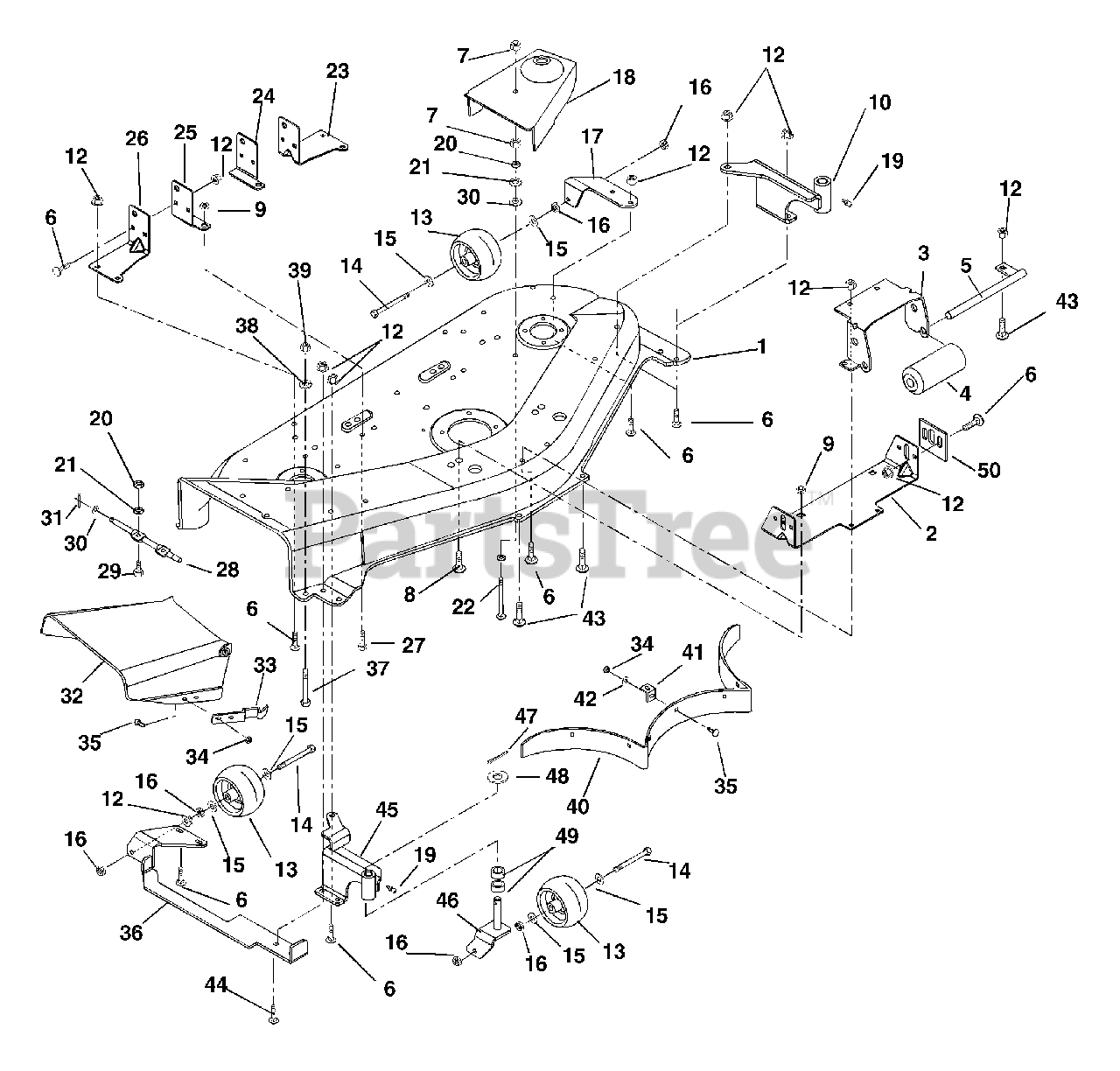

48" Mower Pan Parts Diagram

  • Title

1

Gravely 51503400

MOWER PAN, W/DECALS 48" - RED

Note: (Model 016)

$

$

Not available

2

Gravely 01521251

FRONT HANGER

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 03435151

BRACKET, ROLLER

$83.99

$

Usually ships in 4-12 days

0

4

Gravely 039563

ROLLER
(Superseded to 03114100)

$23.99

$

In Stock, Qty 20+

0

5

Gravely 039601

ROLLER SHAFT
(Superseded to 03435200)

$52.99

$

Usually ships in 4-12 days

0

6

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06224600

BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

10

Gravely 01535653

WELDMENT-LEFT FRONT

$

$

Not available

11

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 18

0

12

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 050825

ROLLER
(Superseded to 02745400)

$16.99

$

In Stock, Qty 20+

0

14

Gravely 05960900

BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 01535353

BRACKET-LEFT REAR

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 03095853

R.H. BELT COVER
(Superseded to 03095851)

$74.99

$

Usually ships in 4-12 days

0

Gravely 03095953

COVER, LEFT HAND

$

$

Not available

19

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

20

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

21

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06223500

BLT-RDHDSQNK .312-18X3.25 YWZC

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 01535851

LH REAR HANGER

$40.99

$

Usually ships in 4-12 days

0

24

Gravely 01521651

LEFT HAND REAR HANGER SUPPORT

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 01521451

RH REAR HANGER SUPPORT

$47.99

$

Usually ships in 4-12 days

0

26

Gravely 01535751

RH REAR HANGER
(Superseded to 01535700)

$58.99

$

Usually ships in 4-12 days

0

27

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

28

Gravely 03405800

HINGE PIN

$48.99

$

Usually ships in 4-12 days

0

29

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

32

Gravely 03034953

CHUTE EXTENSION

$

$

Not available

33

Gravely 00318553

FLAT SPRING - RED

$

$

Not available

34

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

36

Gravely 01535453

WELDMENT-RIGHT REAR

$25.99

$

Usually ships in 4-12 days

0

37

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 20+

0

38

Gravely 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

39

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 03434251

BAFFLE
(Superseded to 03434200)

$85.99

$

In Stock, only 2 left!

0

41

Gravely 03434351

BAFFLE TAB

$

$

Not available

42

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

44

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 01535553

WELDMENT-RIGHT FRONT
(Superseded to 01563653)

$176.99

$

Usually ships in 4-12 days

0

46

Gravely 01534653

WELDMENT-CASTER FORK

$

$

Not available

47

Gravely 06712700

PIN-CTR .18X1.25 EXTPRSQCT YZ

$2.49

$

In Stock, only 2 left!

0

48

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

49

Gravely 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, Qty 14

0

50

Gravely 01528751

MOWER ADJUSTMENT TAB

$

$

Not available
