915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) 42" Mower Brackets And Rollers Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

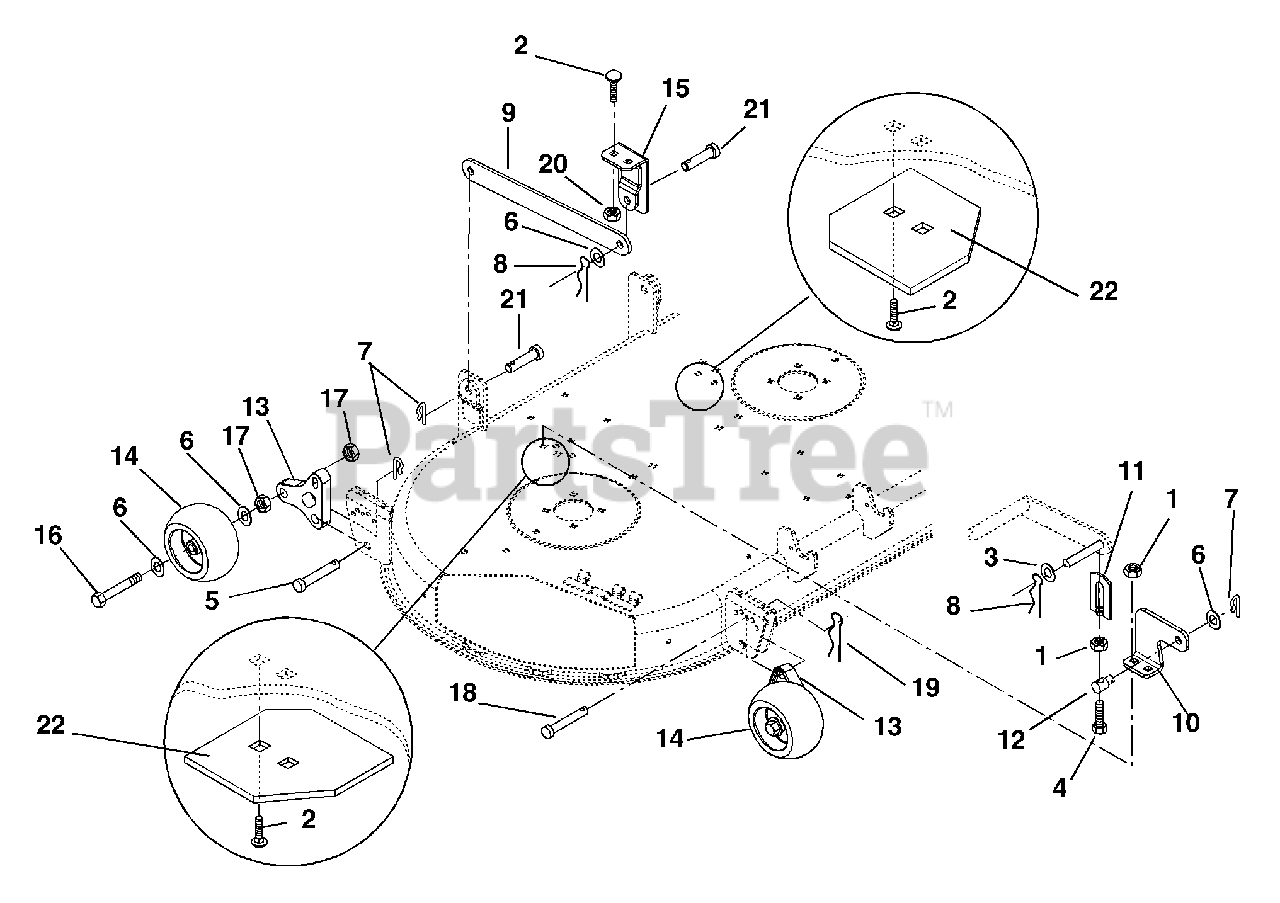

42" Mower Brackets And Rollers Parts Diagram

  • Title

1

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06223900

Bolt Round Head Square Neck .38-16
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

4

Gravely 044609

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05943100)

$3.49

$

In Stock, only 3 left!

0

5

Gravely 06816300

Pin-Clevis .50 x 1.38

$9.49

$

In Stock, only 2 left!

0

6

Gravely 06436600

Washer-Flat-Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 06944800

Clip-Spring

$0.99

$

In Stock, only 2 left!

0

8

Gravely 06711900

Pin-Hair-External .12 x .31 x 2.37

$2.99

$

In Stock, only 3 left!

0

9

Gravely 01583451

Link-Lift

$38.99

$

Usually ships in 4-12 days

0

10

Gravely 01583651

Bracket-Lift

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 01563300

Link-Adjustment

$51.99

$

Usually ships in 4-12 days

0

12

Gravely 01582300

Trunnion

$45.99

$

Usually ships in 4-12 days

0

13

Gravely 01585100

Bracket-Roller Bracket Adjustment

$

$

Not available

14

Gravely 03471700

Wheel 5" x 3"
(Superseded to 03905600)

$15.99

$

In Stock, Qty 19

0

15

Gravely 01583951

Weldment-Deck Stop Bracket

$

$

Not available

16

Gravely 05961900

Bolt-Hex .50-13 x 4.00
(Superseded to 05901734)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 06519700

Nut-Locking-Center-Jam .50-13

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 06816200

Pin-Clevis .31 x 1.38

$

$

Not available

19

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

20

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

21

Gravely 06816400

Pin-Clevis .50 x 1.00

$

$

Not available

22

Gravely 01586700

Reforcement, Deck Lift
(Superseded to 01586751)

$5.99

$

Usually ships in 4-12 days

0
