915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) 42" Mower Brackets And Rollers Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

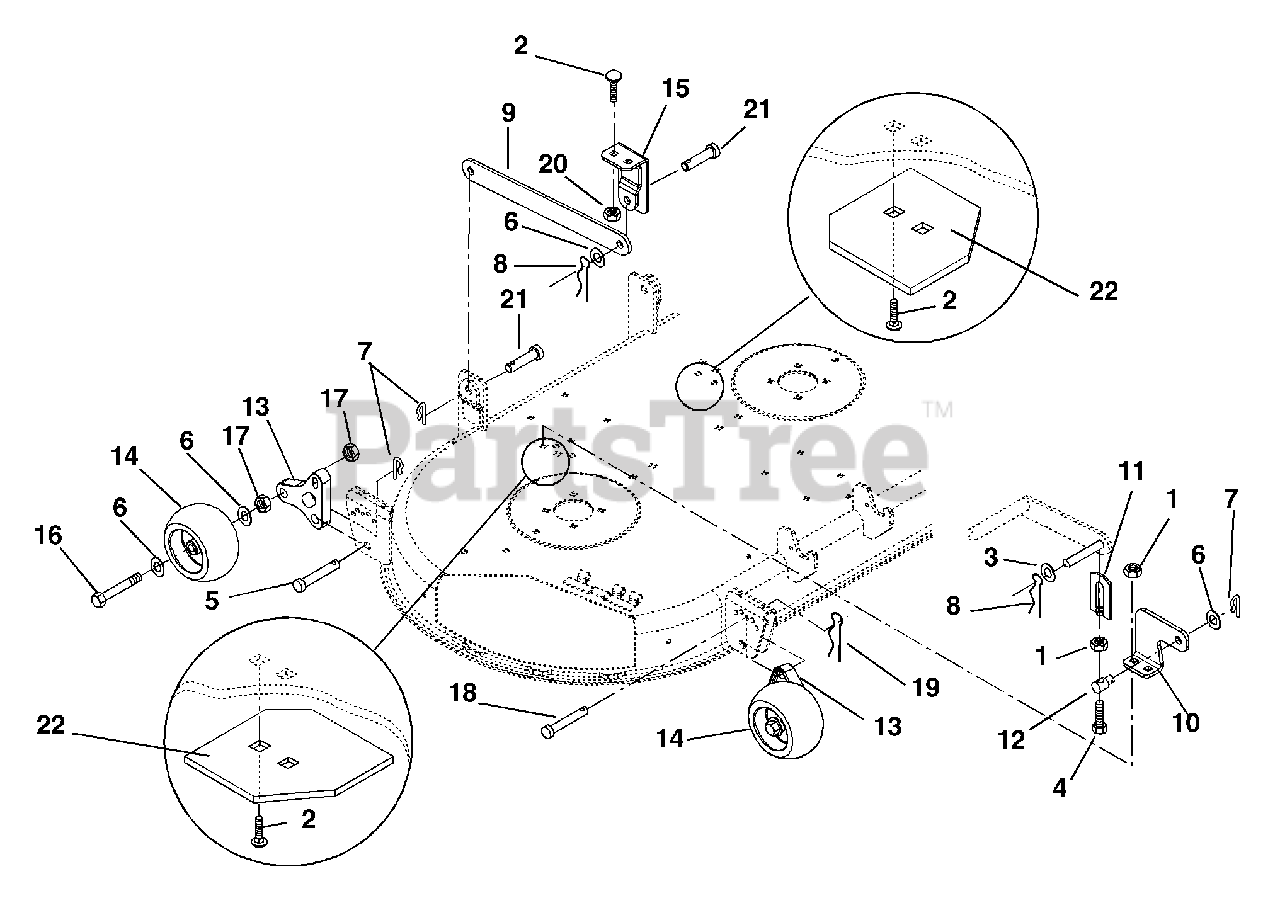

42" Mower Brackets And Rollers Parts Diagram

  • Title

1

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

3

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 044609

BLT-HEX .38-16X2.50 FTH YWZC
(Superseded to 05943100)

$3.99

$

In Stock, only 3 left!

0

5

Gravely 06816300

PIN-CLEV .50X1.38 YWZC

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

7

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

8

Gravely 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, Qty 10

0

9

Gravely 01583451

LINK, LIFT

$40.99

$

Usually ships in 4-12 days

0

10

Gravely 01583651

BRACKET, LIFT

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 01563300

WELDMENT, ADJUSTMENT LINK

$52.99

$

Usually ships in 4-12 days

0

12

Gravely 01582300

TRUNNION

$46.99

$

Usually ships in 4-12 days

0

13

Gravely 01585100

BRACKET, ROLLER ADJUST.

$

$

Not available

14

Gravely 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

15

Gravely 01583951

WELDMENT, DECK STOP BRACKET

$

$

Not available

16

Gravely 05961900

BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 06816200

PIN-CLEV .31X1.38 YWZC

$

$

Not available

19

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

21

Gravely 06816400

PIN-CLEV .50X1.00 YWZC

$

$

Not available

22

Gravely 01586700

REINFORCEMENT, DECK LIFT
(Superseded to 01586751)

$5.99

$

Usually ships in 4-12 days

0
