915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) 42" Mower Deck Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

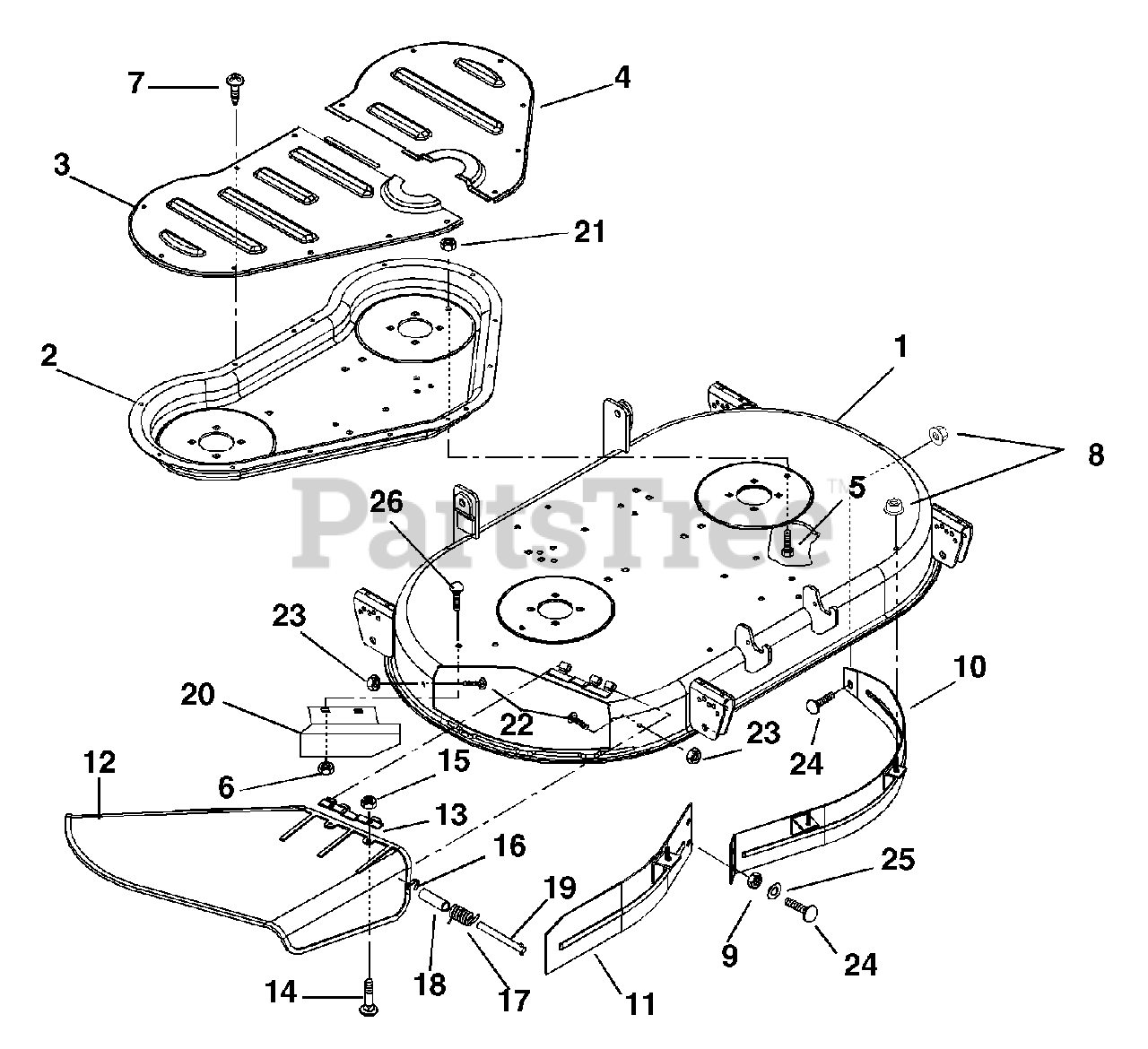

42" Mower Deck Parts Diagram

  • Title

1

Gravely 51503900

MWR, 42" GRAVELY ZT W/DECALS
(Superseded to 51511400)

$

$

Not available

Gravely 51504100

MWR,42"GRAVELY ZT ASSY COMPL.

$

$

Not available

2

Gravely 01584251

REINFORCEMENT, DECK
(Superseded to 01565651)

$

$

Not available

3

Gravely 01585300

COVER, RH DECK REINFORCEMENT

$105.99

$

Usually ships in 4-12 days

0

4

Gravely 01585200

COVER, LH DECK REINFORCEMENT

$175.99

$

Usually ships in 4-12 days

0

5

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 01584351

WELDMENT, BAFFLE UPPER LH

$118.99

$

Usually ships in 4-12 days

0

11

Gravely 01584451

WELDMENT, BAFFLE UPPER RH

$92.99

$

Usually ships in 4-12 days

0

12

Gravely 01585500

DEFLECTOR, CHUTE 42"

$80.99

$

In Stock, Qty 9

0

13

Gravely 02709551

HINGE PLATE

$28.99

$

In Stock, only 4 left!

0

14

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

In Stock, Qty 11

0

17

Gravely 035996

SG-TORS .095X.50X 1.0
(Superseded to 08307200)

$21.99

$

In Stock, only 4 left!

0

18

Gravely 035997

BSHG-SLV .334 X .502 X 1.437
(Superseded to 02202900)

$6.49

$

In Stock, only 4 left!

0

19

Gravely 03624200

PIN

$54.99

$

In Stock, only 2 left!

0

20

Gravely 01582651

DEFLECTOR (BAFFLE)

$25.99

$

Usually ships in 4-12 days

0

21

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

22

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0
