915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Cover Assembly, Solenoid And Switches Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

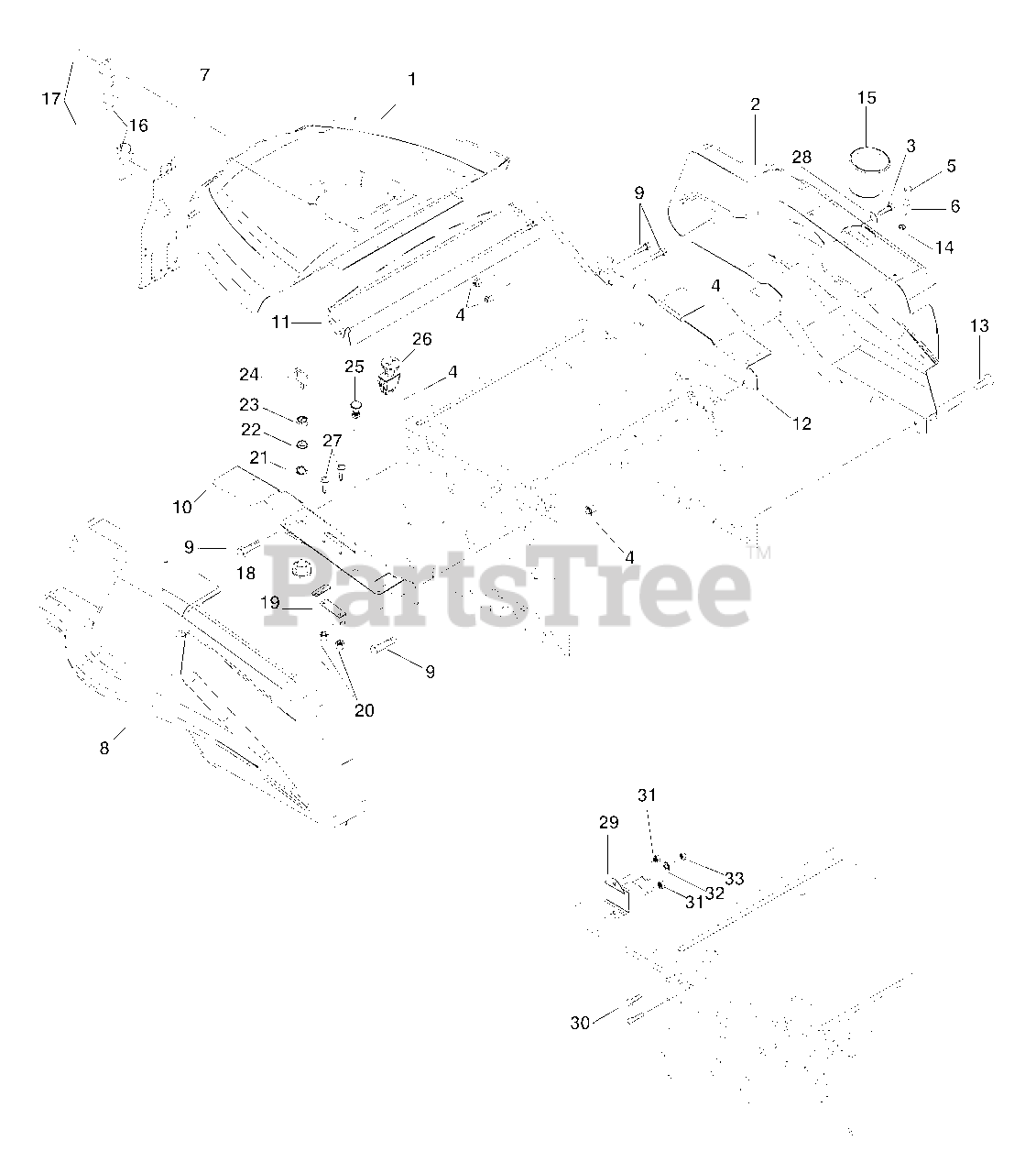

Cover Assembly, Solenoid And Switches Parts Diagram

  • Title

1

Gravely 01549351

Shroud, Top
(Superseded to 01567451)

Note: (Models 016, 019)

$210.99

$

Usually ships in 4-12 days

0

2

Gravely 01553453

Shroud, Side Left Hand

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

4

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 01555200

Snap-Cap Top Cap
(Superseded to 07411000)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 07415800

Screw-Tapping 10-24 x .50
(Superseded to 07400130)

$2.49

$

In Stock, Qty 7

0

7

Gravely 07010500

Rivet-Burr .125 x .505 x.048

Note: (Models 016, 019)

$5.49

$

In Stock, only 3 left!

0

8

Gravely 01553353

Shroud-Side Right Hand

$145.99

$

Usually ships in 4-12 days

0

9

Gravely 05947000

Bolt-Hex .312-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

10

Gravely 01554051

Bracket-Control

$

$

Not available

11

Gravely 01553851

Bracket-Hood

Note: (Models 016, 019)

$

$

Not available

12

Gravely 01553951

Bracket-Fuel Tank

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 07414400

Screw-Tapping .312-18 x .75 Hex Washer Head
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

14

Gravely 01555300

Snap-Cap Washer
(Superseded to 07411000)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 01528500

Cupholder

$15.99

$

In Stock, only 3 left!

0

16

Gravely 035294

Latch, Flexible
(Superseded to 08704700)

Note: (Models 016, 019)

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 06804400

Rivet-Pop .125 x .357 Dome

Note: (Models 016, 019)

$2.49

$

In Stock, only 1 left!

0

18

Gravely 03602300

Key Switch

$26.99

$

In Stock, Qty 9

0

19

Gravely 06942100

Cable-Throttle
(Superseded to 06948300)

Note: (Models 016, 019)

$

$

Not available

19

Gravely 06942200

Cable-Throttle

$60.99

$

Usually ships in 4-12 days

0

20

Gravely 06536000

Nut-Locking-Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

21

Gravely 06310900

Washer-Lock-Internal .563 x .040

$2.49

$

In Stock, only 3 left!

0

22

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$13.99

$

Usually ships in 4-12 days

0

23

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 7

0

24

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 13

0

24

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

25

Gravely 06942300

Cable-Choke

Note: (Models 016, 019)

$39.99

$

Usually ships in 4-12 days

0

25

Gravely 00529900

Plug-Hole Plastic .44

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 01545600

Switch-Clutch

$23.99

$

In Stock, Qty 12

0

27

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

29

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 10

0

30

Gravely 05947900

Bolt-Hex .25-20 x .50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

31

Gravely 06529700

Nut-Locking-Center .25-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06310500

Washer-Lock-Internal .31

$0.99

$

In Stock, only 3 left!

0

33

Gravely 06536700

Nut-Jam .312-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0
