915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust And Belts Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

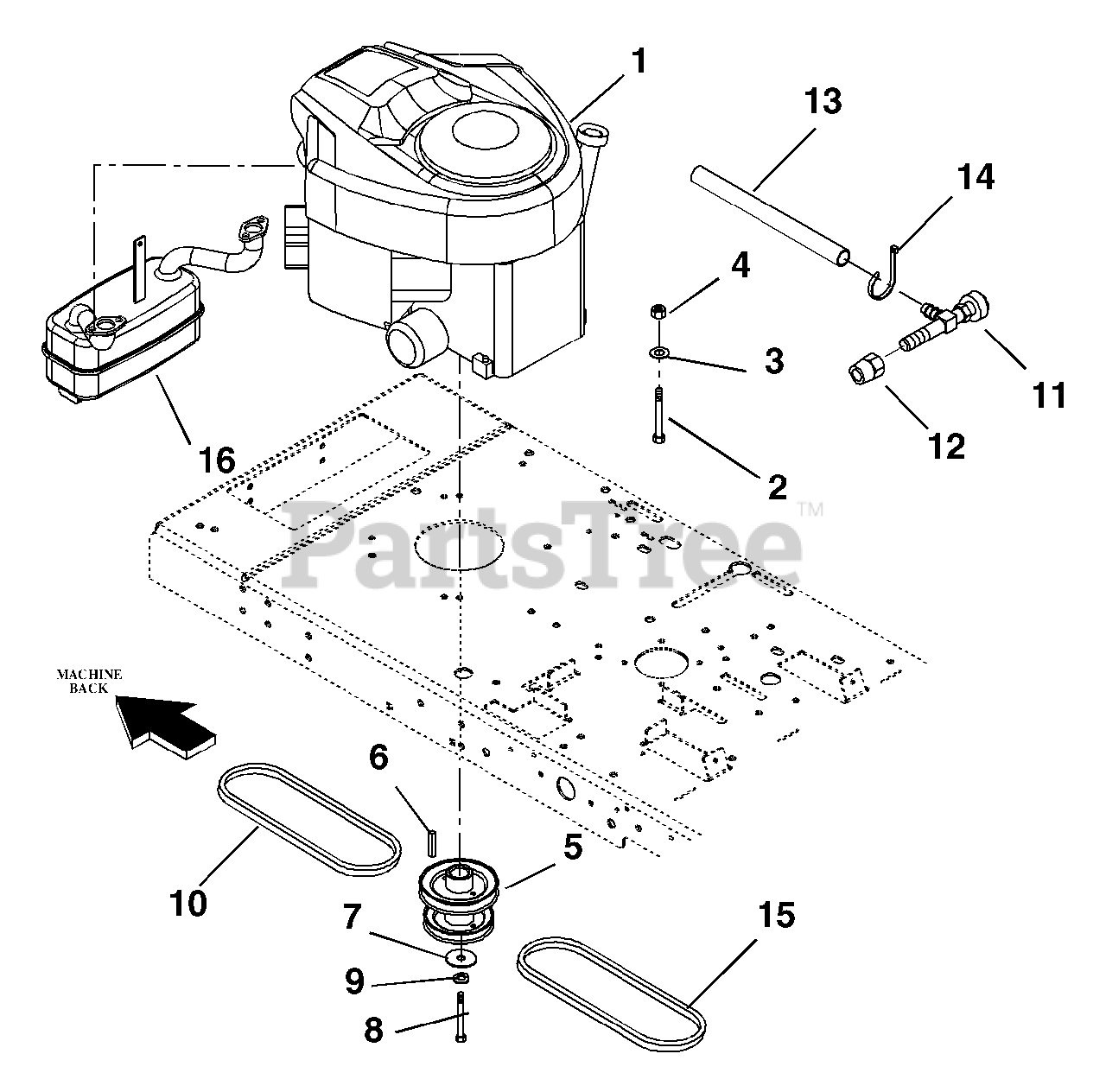

Engine, Exhaust And Belts Parts Diagram

  • Title

1

Gravely 08259200

ENGINE, B&S INTEK 20HP V TWIN

Note: (Model 016)

$

$

Not available

Gravely 08259100

ENGINE, B&S INTEK 18HP V TWIN

Note: (Model 019)

$

$

Not available

2

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.49

$

In Stock, Qty 9

0

3

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

5

Gravely 01557700

ENGINE SHEAVE 4.50

$111.99

$

In Stock, only 4 left!

0

6

Gravely 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

8

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.99

$

In Stock, Qty 10

0

9

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

10

Gravely 040371

V-BELT, 4L-RAW EDGE
(Superseded to 07212300)

$50.99

$

In Stock, Qty 10

0

11

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$43.99

$

In Stock, only 2 left!

0

12

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 01523400

TUBE OIL DRAIN

$

$

Not available

14

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.99

$

Usually ships in 4-12 days

0

15

Gravely 07235700

V-BELT, HB-WRAPPED

$54.99

$

In Stock, Qty 11

0

16

Gravely 01557000

MUFFLER ASSEMBLY

$178.99

$

In Stock, only 1 left!

0
