915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Transaxle And Wheels Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

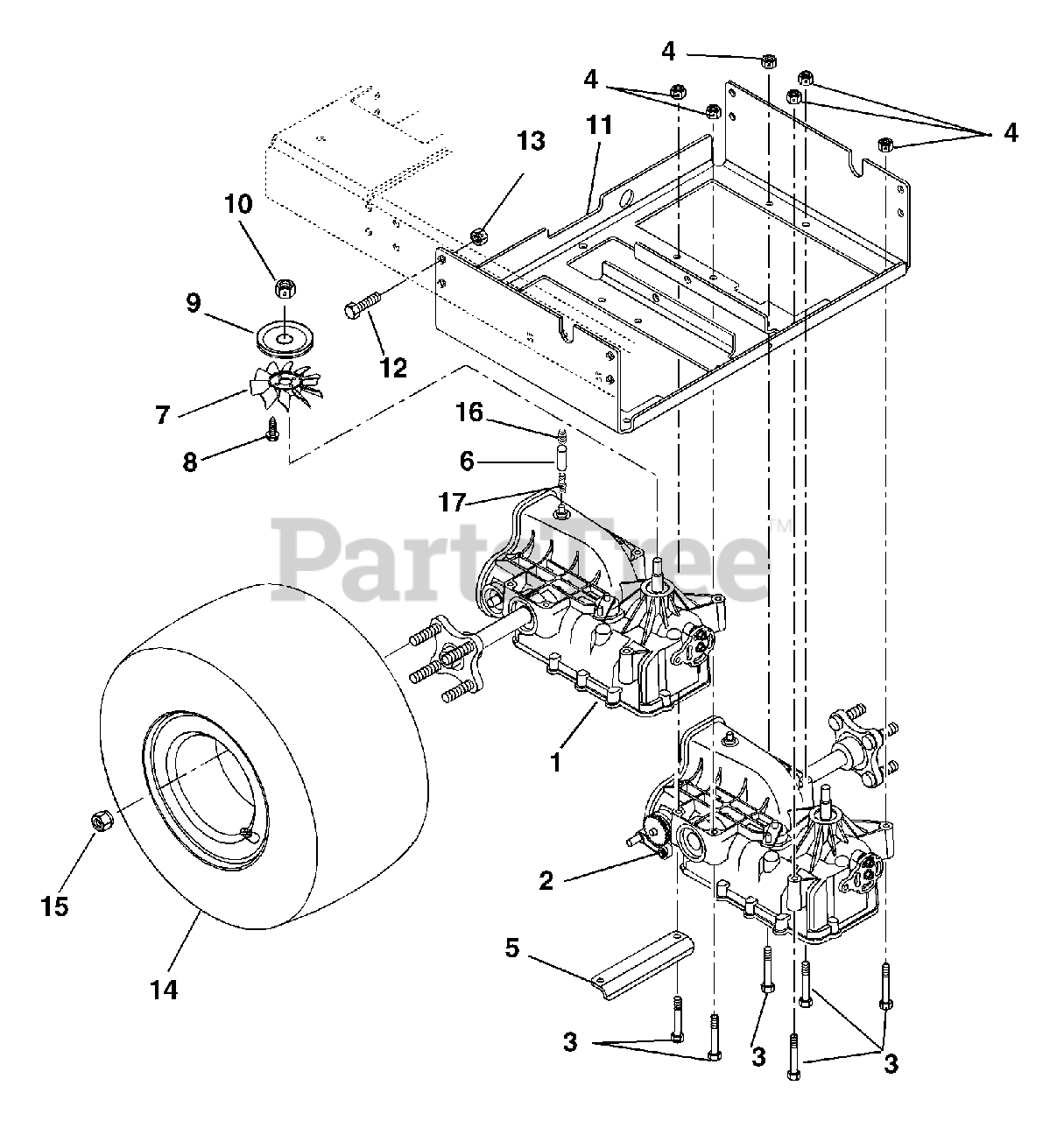

Transaxle And Wheels Parts Diagram

  • Title

1

Gravely 01540300

TRANS-AXLE HYDRO-GEAR RH
(Superseded to 51507400)

$

$

Not available

2

Gravely 01540400

TRANS-AXLE HYDRO-GEAR LH
(Superseded to 51507300)

$

$

Not available

3

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 01543900

BRACKET, TRANSAXLE
(Superseded to 01543951)

$

$

Not available

6

Gravely 01543100

HOSE - VENT

$9.99

$

In Stock, only 2 left!

0

7

Gravely 045321

FAN
(Superseded to 03570000)

$36.99

$

In Stock, only 2 left!

0

8

Gravely 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 5

0

9

Gravely 07321400

SHEAVE - TRANSAXLE
(Superseded to 01569100)

$58.99

$

In Stock, only 3 left!

0

10

Gravely 06517200

NUT-LK-TOP .50-20 GR C YWZC

$

$

Not available

11

Gravely 01540900

TRANSMISSION CRADLE

$

$

Not available

12

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07144600

T/WHL ASSY 18X8.50-8

$

$

Not available

Gravely 07144900

RIM FOR 18X8.50-800 TIRE

$

$

Not available

Gravely 07145100

TIRE 18X8.50-8
(Superseded to 07101220)

$105.99

$

In Stock, only 1 left!

0

15

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 07026400

CAP-VENT .50

$17.99

$

In Stock, only 2 left!

0

17

Gravely 07026300

FTG-STR .50 O-RING

$26.99

$

In Stock, only 2 left!

0
