915020 (EZR 1540) - Ariens 40" Zero-Turn Mower, 15hp Briggs & Stratton (SN: 000101 & Above) Attachment Lift Parts Diagram

40" Zero-Turn Mower, 15hp Briggs & Stratton

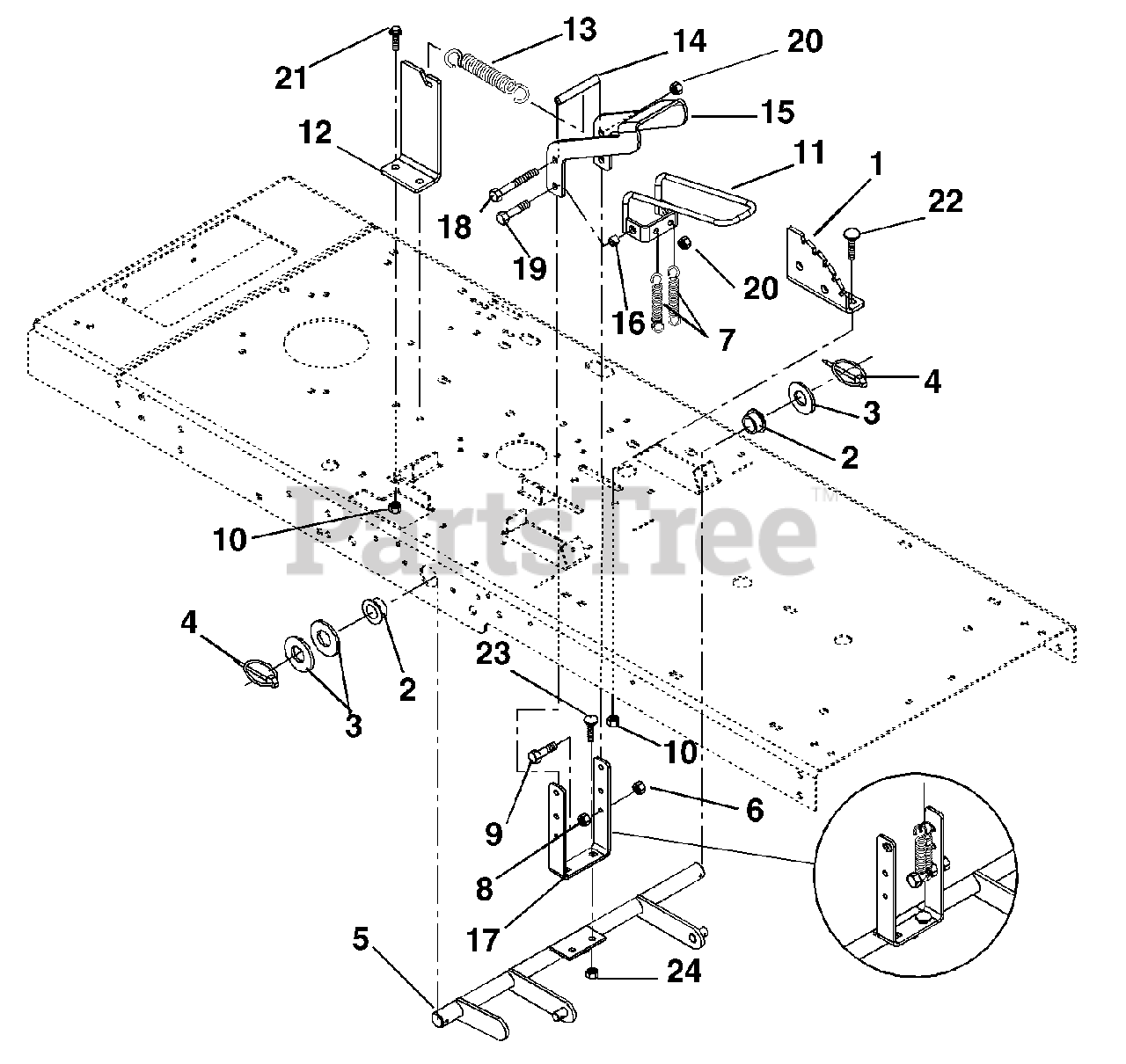

Attachment Lift Parts Diagram

  • Title

1

Ariens 01556500

DETENT, PLATE

$38.99

$

Usually ships in 4-12 days

0

2

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 20+

0

3

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

In Stock, Qty 20+

0

4

Ariens 07015400

PIN-KLIK .25X1.75

$6.49

$

Usually ships in 4-12 days

0

5

Ariens 01558651

LIFT, WLDM'T

Note: (020, 021, 023)

$

$

Not available

Ariens 01556151

LIFT, WLDM'T

Note: (013, 022, 308)

$148.99

$

Usually ships in 4-12 days

0

6

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

8

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

9

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 01554700

RELEASE WLDM'T

$64.99

$

Usually ships in 4-12 days

0

12

Ariens 01554251

BRACKET, LIFT

$10.99

$

Usually ships in 4-12 days

0

13

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$46.99

$

In Stock, only 2 left!

0

14

Ariens 01554500

SPACER .328 X .462 X 3.14

$

$

Not available

15

Ariens 01566800

HANDLE, COATED DECK LIFT
(Superseded to 01556451)

$14.99

$

Usually ships in 4-12 days

0

16

Ariens 01554600

SPACER .328 X .462 X .410

$

$

Not available

17

Ariens 01556351

BRACKET, HANDLE

$9.49

$

Usually ships in 4-12 days

0

18

Ariens 05973900

@BLT-HEX .31-18X4.50 GR5 YWZC

$

$

Not available

19

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

20

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

22

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, only 1 left!

0

23

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

24

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
