915023 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Spindle Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

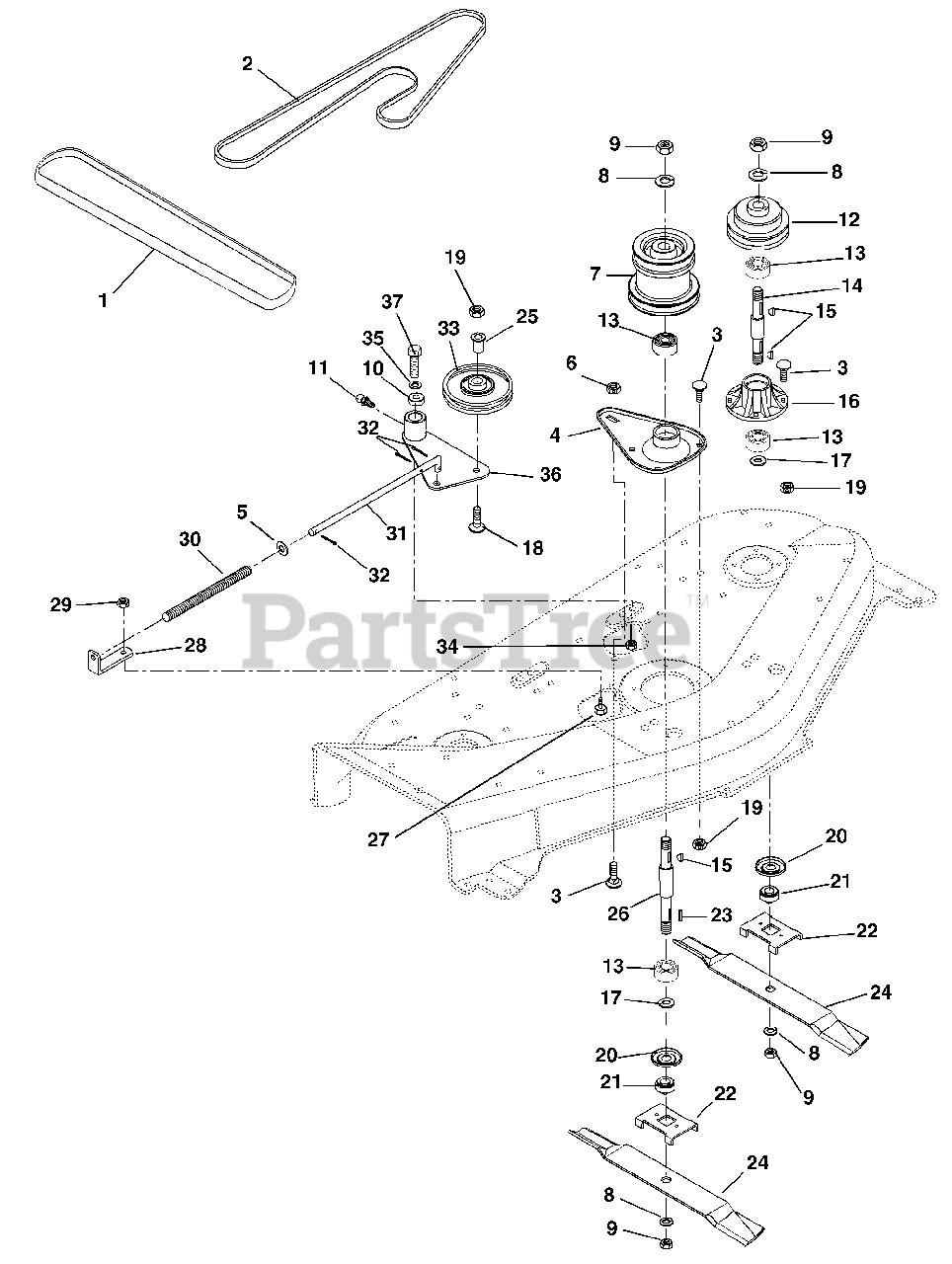

48" Mower Spindle Parts Diagram

  • Title

1

Ariens 07234500

V-BELT, HA-WRAPPED

$42.99

$

In Stock, only 4 left!

0

2

Ariens 07234400

V-BELT, HA-RAW EDGE

$101.99

$

In Stock, only 1 left!

0

3

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 03434951

HOUSING, SPINDLE

$

$

Not available

5

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 01543300

SHEAVE, 48" DECK

$

$

Not available

8

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$2.49

$

In Stock, Qty 10

0

9

Ariens 06537700

NUT-JAM .75-10 YWZC

$3.99

$

In Stock, Qty 20+

0

10

Ariens 03433800

SPACER, PIVOT .500X.750X1.805

$

$

Not available

11

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

12

Ariens 03401800

SHEAVE

$200.99

$

Usually ships in 4-12 days

0

13

Ariens 05412000

BRG-BALL .750X1.781X.61

$15.99

$

In Stock, Qty 15

0

14

Ariens 03032400

SPINDLE SHAFT
(Superseded to 53115100)

$78.99

$

In Stock, only 2 left!

0

15

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$3.49

$

In Stock, Qty 10

0

16

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

17

Ariens 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$3.49

$

In Stock, Qty 9

0

18

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 8

0

21

Ariens 03037500

RETAINER HUB

$

$

Not available

22

Ariens 03485500

BLADE TRAY 48

$21.99

$

Usually ships in 4-12 days

0

23

Ariens 06601700

KEY-SQ .188X.625X.188 SAE 61

$4.99

$

Usually ships in 4-12 days

0

24

Ariens 03123700

BLADE

$25.99

$

In Stock, Qty 13

0

25

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$10.99

$

In Stock, Qty 12

0

26

Ariens 03441300

SHAFT-SPINDLE
(Superseded to 53402400)

$85.99

$

In Stock, Qty 5

0

27

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$2.49

$

In Stock, Qty 5

0

28

Ariens 03418851

BRACKET

$82.99

$

Usually ships in 4-12 days

0

29

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 08301800

SG-COMP .106X.63X 12.0 WLD 62

$

$

Not available

31

Ariens 03433900

ROD-IDLER SPRING

$103.99

$

Usually ships in 4-12 days

0

32

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$1.49

$

In Stock, Qty 20+

0

33

Ariens 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$39.99

$

In Stock, only 3 left!

0

34

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

35

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$4.99

$

In Stock, Qty 20+

0

36

Ariens 03433751

IDLER ARM
(Superseded to 53401000)

$109.99

$

In Stock, only 4 left!

0

37

Ariens 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.99

$

Usually ships in 4-12 days

0
