915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) 42" Mower Brackets And Rollers Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

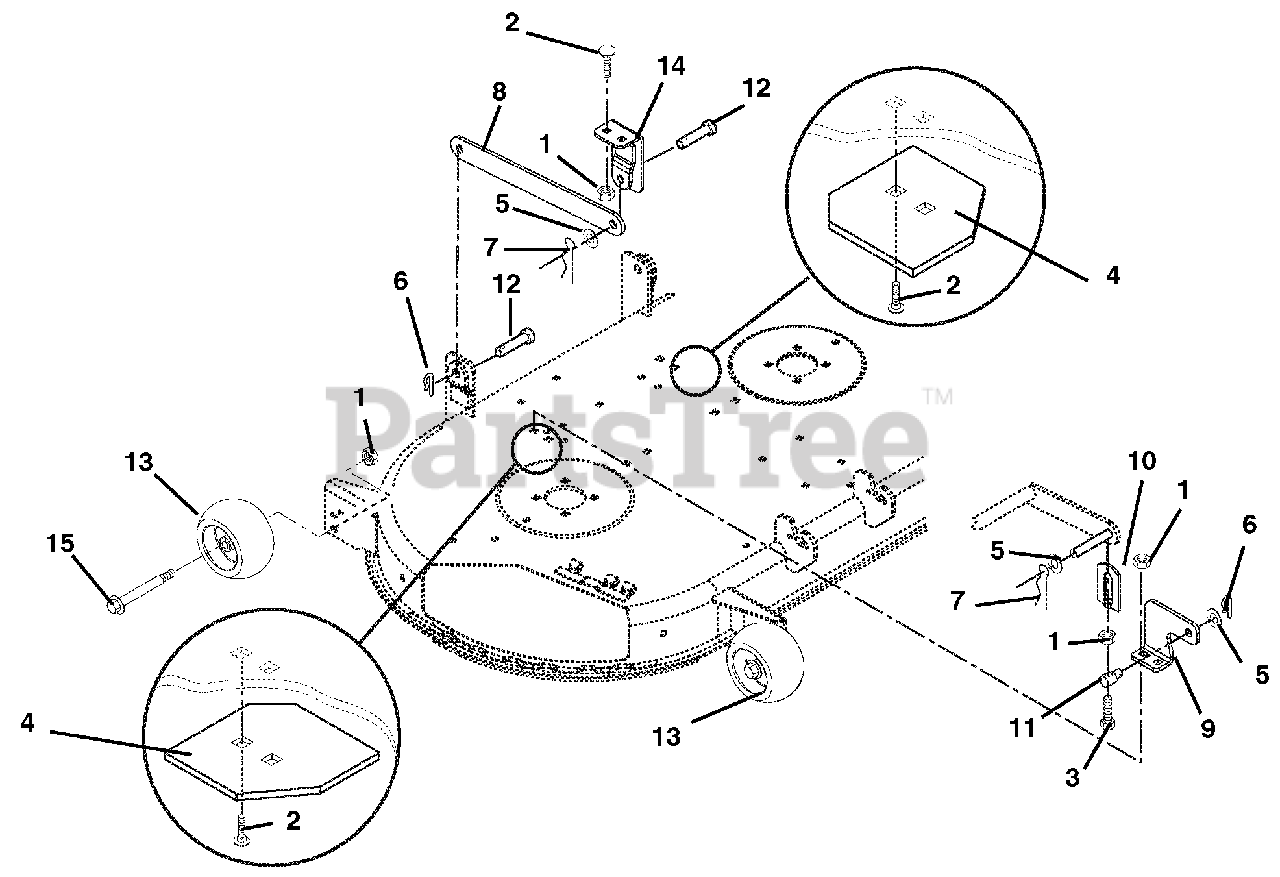

42" Mower Brackets And Rollers Parts Diagram

  • Title

1

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06223900

Bolt Round Head Square Neck .38-16
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 044609

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05943100)

$3.49

$

In Stock, only 3 left!

0

4

Gravely 01586751

Reforcement, Deck Lift

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 06436600

Washer-Flat-Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 06944800

Clip-Spring

$0.99

$

In Stock, only 2 left!

0

7

Gravely 06711900

Pin-Hair-External .12 x .31 x 2.37

$2.99

$

In Stock, only 3 left!

0

8

Gravely 01583451

Link-Lift

$38.99

$

Usually ships in 4-12 days

0

9

Gravely 01583651

Bracket-Lift

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 01563300

Link-Adjustment

$51.99

$

Usually ships in 4-12 days

0

11

Gravely 01582300

Trunnion

$45.99

$

Usually ships in 4-12 days

0

12

Gravely 06816400

Pin-Clevis .50 x 1.00

$

$

Not available

13

Gravely 03471700

Wheel 5" x 3"
(Superseded to 03905600)

$15.99

$

In Stock, Qty 17

0

14

Gravely 01583951

Weldment-Deck Stop Bracket

$

$

Not available

15

Gravely 07056800

Bolt-Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$6.99

$

In Stock, Qty 20+

0
