915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) 42" Mower Brackets And Rollers Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

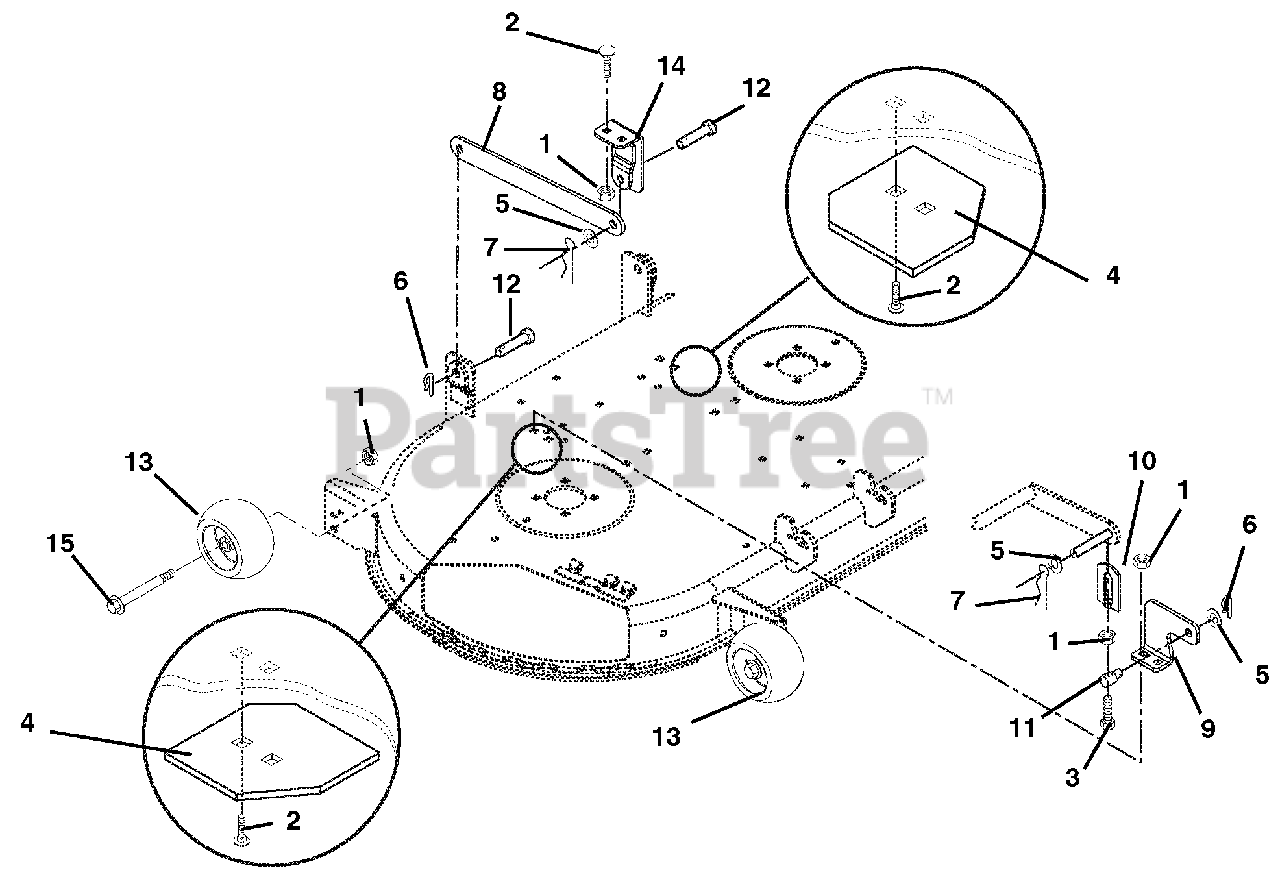

42" Mower Brackets And Rollers Parts Diagram

  • Title

1

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

3

Gravely 044609

BLT-HEX .38-16X2.50 FTH YWZC
(Superseded to 05943100)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 01586751

REINFORCEMENT, DECK LIFT

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

6

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

7

Gravely 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, Qty 10

0

8

Gravely 01583451

LINK, LIFT

$40.99

$

Usually ships in 4-12 days

0

9

Gravely 01583651

BRACKET, LIFT

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 01563300

WELDMENT, ADJUSTMENT LINK

$52.99

$

Usually ships in 4-12 days

0

11

Gravely 01582300

TRUNNION

$46.99

$

Usually ships in 4-12 days

0

12

Gravely 06816400

PIN-CLEV .50X1.00 YWZC

$

$

Not available

13

Gravely 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

14

Gravely 01583951

WELDMENT, DECK STOP BRACKET

$

$

Not available

15

Gravely 07056800

BLT-SHLDR .38-16X2.50 HWH G5YZ

$7.49

$

In Stock, Qty 20+

0
