915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) 42" Mower Spindle Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

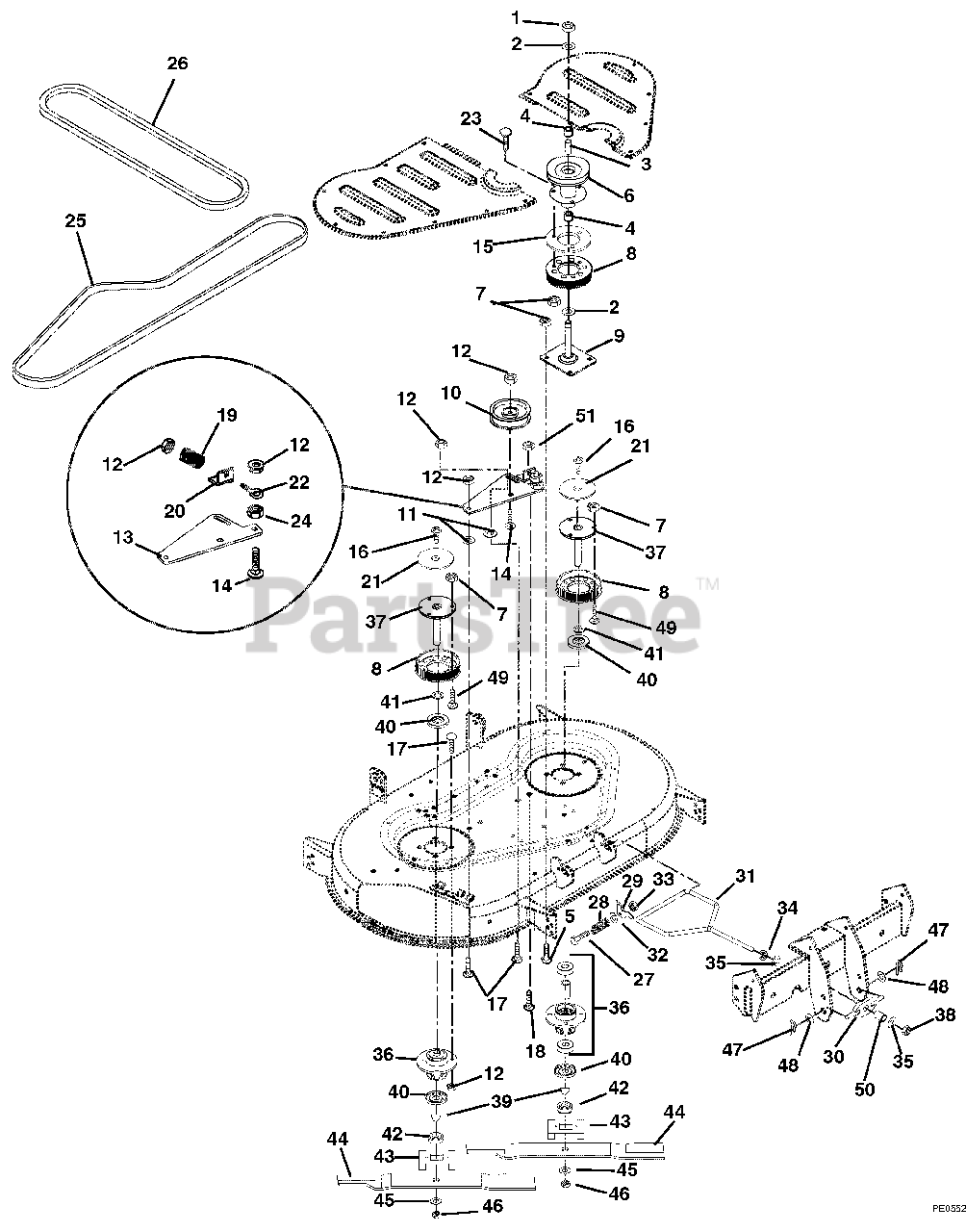

42" Mower Spindle Parts Diagram

  • Title

1

Gravely 06530300

NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 8

0

2

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 01583100

SPACER, .640X.88X4.069

$26.99

$

In Stock, only 3 left!

0

4

Gravely 05435100

BRG-BALL .625X1.375X.43

$16.99

$

In Stock, Qty 20+

0

5

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 01587700

JACKSHAFT - EZR
(Superseded to 07331467)

$158.99

$

In Stock, only 4 left!

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01583700

SPROCKET, DRIVE

$94.99

$

Usually ships in 4-12 days

0

9

Gravely 01582951

WELDMENT, PLATE MOUNT

$79.99

$

In Stock, only 2 left!

0

10

Gravely 053125

IDLER, FLAT .377X4.0X.96W POLY
(Superseded to 07320800)

$35.99

$

In Stock, Qty 19

0

11

Gravely 06447200

WSHR-FL-STL .38"X1.5"X.188"

$9.99

$

Usually ships in 4-12 days

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 01583200

ARM, BELT ADJUSTMENT

$67.99

$

Usually ships in 4-12 days

0

14

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

15

Gravely 03692000

SPACER, SPROCKET

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

19

Gravely 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, only 3 left!

0

20

Gravely 01583300

BRACKET, BELT ADJUSTMENT

$

$

Not available

21

Gravely 03695500

RETAINER, BELT

$20.99

$

Usually ships in 4-12 days

0

22

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$8.49

$

In Stock, Qty 6

0

23

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 07237500

COG-BELT X8M

$64.99

$

In Stock, Qty 7

0

26

Gravely 07239500

V-BELT, 5L-WRAPPED

$52.99

$

In Stock, Qty 6

0

27

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

28

Gravely 08321700

SG-COMP .058X.68X.75

$9.99

$

Usually ships in 4-12 days

0

29

Gravely 01583500

RETAINER, BRACE

$

$

Not available

30

Gravely 01586800

WELDMENT, FRONT MOUNT

$

$

Not available

31

Gravely 01584600

ROD, LINK

$35.99

$

In Stock, Qty 5

0

32

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

34

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

35

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

36

Gravely 01583800

ASSEMBLY, SPINDLE HOUSING

$116.99

$

In Stock, Qty 12

0

37

Gravely 01582400

WELDMENT, SPINDLE SHAFT

$174.99

$

In Stock, Qty 5

0

38

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 06604200

KEY-WDRF .188X.625X.31 SAE9MOD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 7

0

41

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

42

Gravely 01582100

HUB, RETAINER

$45.99

$

In Stock, Qty 6

0

43

Gravely 01582200

TRAY, BLADE

$23.99

$

In Stock, only 2 left!

0

44

Gravely 01584500

BLADE, 22"

Note: (024)

$31.99

$

In Stock, Qty 8

0

45

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0

46

Gravely 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

47

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

48

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

50

Gravely 05533100

BSHG-SLV .50X.74X.53

$16.99

$

Usually ships in 4-12 days

0

51

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0
