915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Bumpers And Steps Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

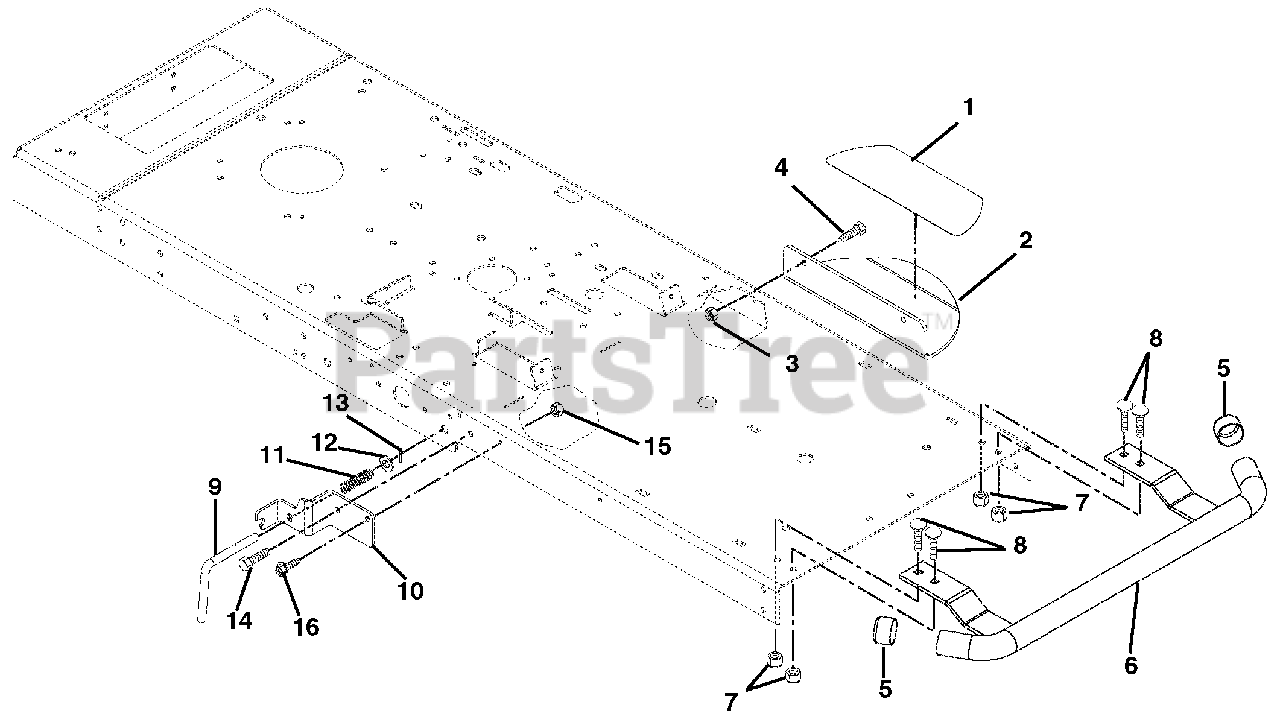

Bumpers And Steps Parts Diagram

  • Title

1

Gravely 01564300

NON-SKID COVER

Note: (024, 025)

$

$

Not available

2

Gravely 01564251

BRACKET, STEP

Note: (024, 025)

$

$

Not available

3

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (024, 025)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07415700

SCR-TAP .31-18X.88 HWH YWZC

Note: (024, 025)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 01555100

SLEEVE CAP

Note: (024, 025)

$

$

Not available

6

Gravely 01555751

BUMPER, WLDM'T

Note: (024, 025)

$

$

Not available

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (024, 025)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (024, 025)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 01558800

PIN-INDEX

$

$

Not available

10

Gravely 01558751

BRACKET-STOP

$

$

Not available

11

Gravely 051650

SPRG, COMP .058X.65X2.13 WLD15
(Superseded to 08325900)

$

$

Not available

12

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 12

0

14

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 4 left!

0

15

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 12

0
