915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Bumpers And Steps Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

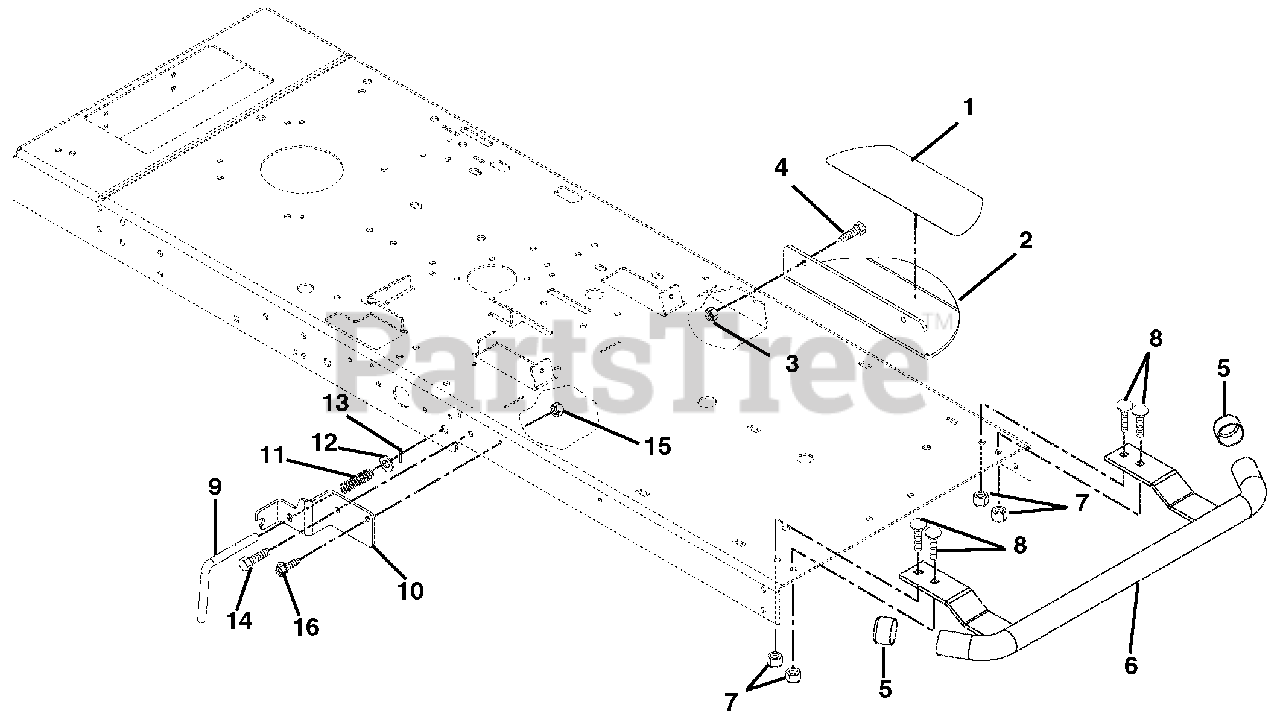

Bumpers And Steps Parts Diagram

  • Title

1

Gravely 01564300

Non-Skid Cover

Note: (024, 025)

$

$

Not available

2

Gravely 01564251

Bracket, Step

Note: (024, 025)

$

$

Not available

3

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

Note: (024, 025)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07415700

Screw-Tapping .31-18 x .88 Hex Washer Head

Note: (024, 025)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 01555100

Cap-Sleeve

Note: (024, 025)

$

$

Not available

6

Gravely 01555751

Weldment-Bumper

Note: (024, 025)

$

$

Not available

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

Note: (024, 025)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06223600

Bolt-Round Head Square Neck .375-16 x 1.00 Grade 5
(Superseded to 06200313)

Note: (024, 025)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 01558800

Pin-Index

$

$

Not available

10

Gravely 01558751

Bracket-Stop

$

$

Not available

11

Gravely 051650

Spring-Compression
(Superseded to 08325900)

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05802900

Pin-Roll .156 x 1.00

$0.99

$

In Stock, Qty 5

0

14

Gravely 07028500

Bolt-Screw Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, only 1 left!

0

15

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07414400

Screw-Tapping .31-18 x .75 Hex Washer Head
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0
