915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Seat And Support Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

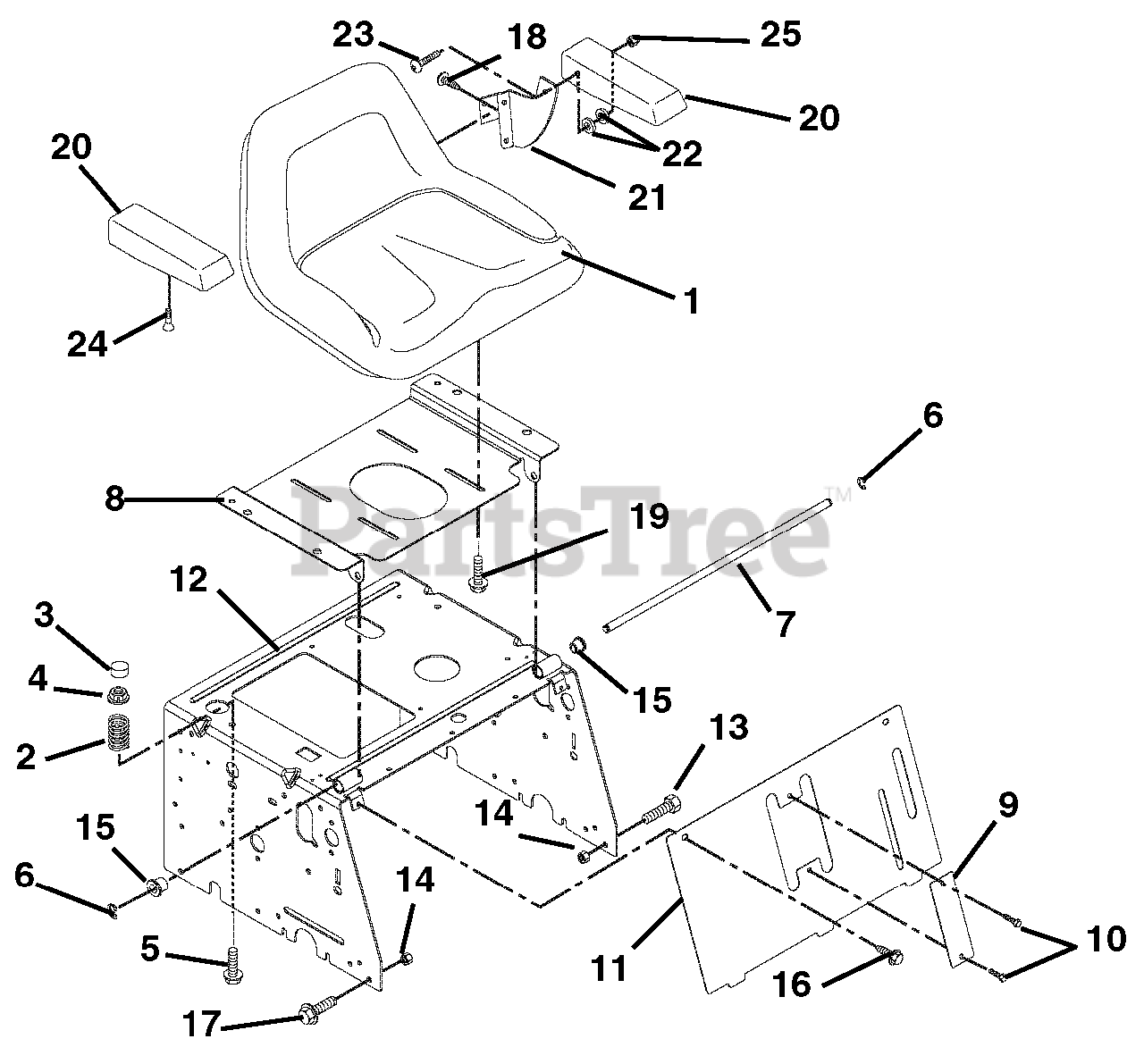

Seat And Support Parts Diagram

  • Title

1

Gravely 01546100

SEAT

$

$

Not available

2

Gravely 00571600

SG. COMP 2.9L X 2.02OD 200LB

$37.99

$

Usually ships in 4-12 days

0

3

Gravely 00571500

BOOT, SEAT SPRING

$

$

Not available

4

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 01168900

FRONT AXLE

$68.99

$

Usually ships in 4-12 days

0

8

Gravely 01554451

SEAT PLATE

$

$

Not available

9

Gravely 01555453

PLATE

$

$

Not available

10

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 01556253

PANEL, WLDM'T

$98.99

$

Usually ships in 4-12 days

0

12

Gravely 01567751

SUPPORT, SEAT WLDM'T

$

$

Not available

13

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 07416500

SCR-RDHDSKTAP .31-18 X .62 G8

$

$

Not available

19

Gravely 07047100

BLT SERHFWH .31-18X.62 GR5YWZC

$2.49

$

In Stock, only 3 left!

0

20

Gravely 01552900

ARM REST

$

$

Not available

21

Gravely 01553100

BRACKET, L.H. ARMREST

$25.99

$

Usually ships in 4-12 days

0

21

Gravely 01553000

BRACKET, R.H. ARMREST

$

$

Not available

22

Gravely 01563400

SPACER

$

$

Not available

23

Gravely 05977500

BLT-RDHDSK .38-16 X 1.50 G8

$

$

Not available

24

Gravely 05977600

BLT-FLTHDSK .38-16 X .50 G8

$

$

Not available

25

Gravely 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0
