915025 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Pan Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

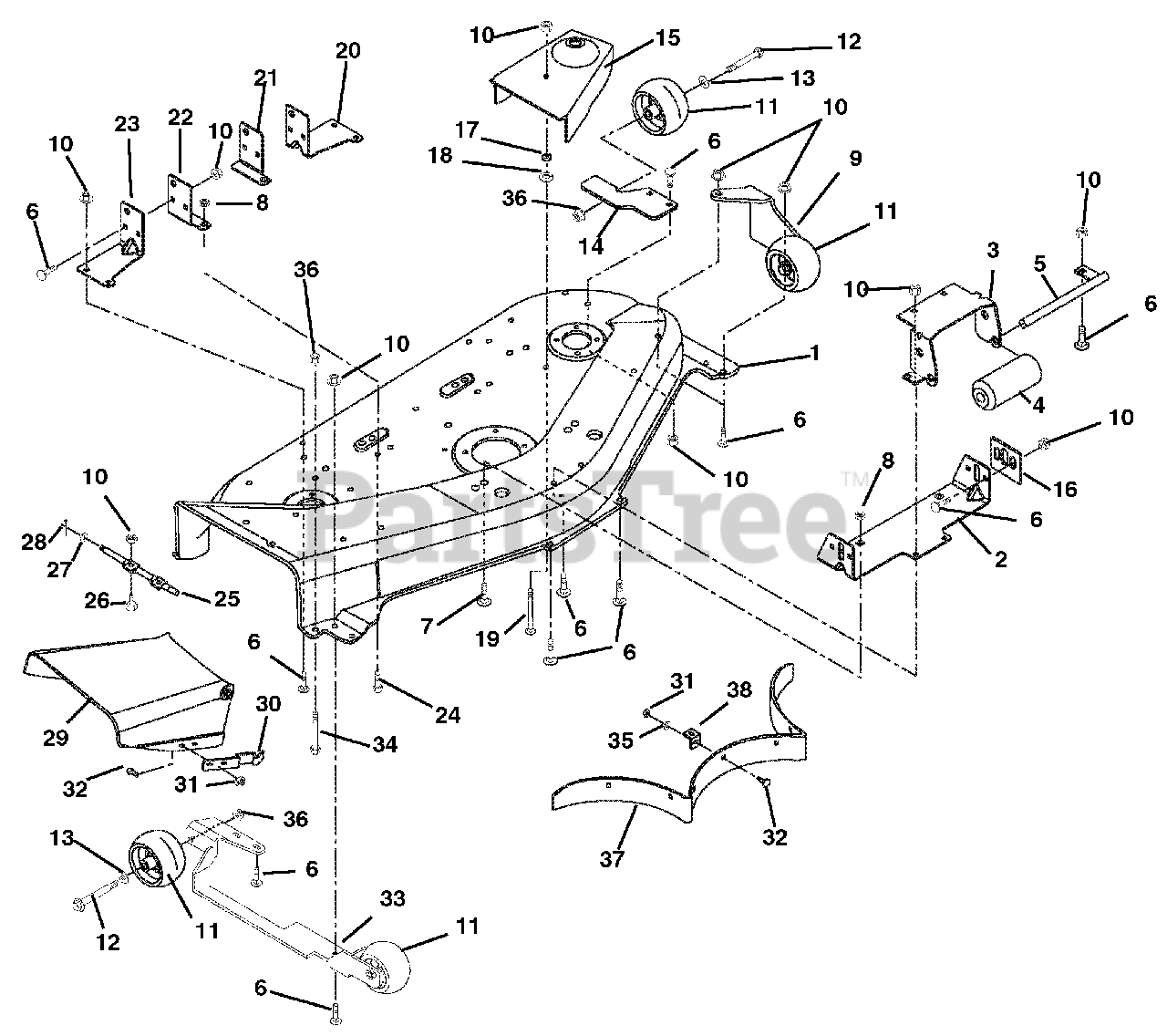

48" Mower Pan Parts Diagram

  • Title

1

Gravely 51503400

Mower Pan Head w/Decals 48"

Note: (025)

$

$

Not available

2

Gravely 01521251

Front Hanger

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 03435151

Bracket, Roller

$81.99

$

Usually ships in 4-12 days

0

4

Gravely 039563

Roller
(Superseded to 03114100)

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 039601

Roller Shaft
(Superseded to 03435200)

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 15

0

7

Gravely 06224600

Bolt-Round Head Square Neck .50-13 x .75 - Short Neck
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 01533853

Bracket-Left Front
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

10

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 13

0

12

Gravely 07056800

Bolt-Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$6.99

$

In Stock, Qty 20+

0

13

Gravely 06443300

Washer-Flat-Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 19

0

14

Gravely 01534153

Bracket-Left Rear

$

$

Not available

15

Gravely 03095851

Belt Cover Right Hand 48"

$59.99

$

Usually ships in 4-12 days

0

15

Gravely 03095951

Belt Cover Left Hand 48"

$

$

Not available

16

Gravely 01528751

Mower Adjustment Tab

$

$

Not available

17

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

18

Gravely 06307400

Washer-Locking .31 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

19

Gravely 06223500

Bolt-Round Head Square Neck .31-18 x 3.25

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 01535851

Left Hand Rear Hanger

$38.99

$

Usually ships in 4-12 days

0

21

Gravely 01521651

Left Hand Rear Hanger Support

$17.99

$

Usually ships in 4-12 days

0

22

Gravely 01521451

Right Hand Rear Hanger Support

$46.99

$

Usually ships in 4-12 days

0

23

Gravely 01535751

Right Hand Rear Hanger
(Superseded to 01535700)

$56.99

$

Usually ships in 4-12 days

0

24

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

25

Gravely 03405800

Hinge Pin

$46.99

$

Usually ships in 4-12 days

0

26

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

27

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

29

Gravely 03034951

Chute Extension
(Superseded to 53402500)

$114.99

$

Usually ships in 4-12 days

0

30

Gravely 00318551

Flat Spring
(Superseded to 01597751)

$20.99

$

Usually ships in 4-12 days

0

31

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

33

Gravely 01533953

Mount- Roller
(Superseded to 01533900)

$

$

Not available

34

Gravely 06224400

Bolt-Round Head Square Neck .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$3.99

$

In Stock, only 2 left!

0

35

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

36

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 03434251

Baffle
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

38

Gravely 03434351

Baffle Tab

$

$

Not available
