915025 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Hydrostatic Transaxle - Left S/N 000101 - 000999 Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

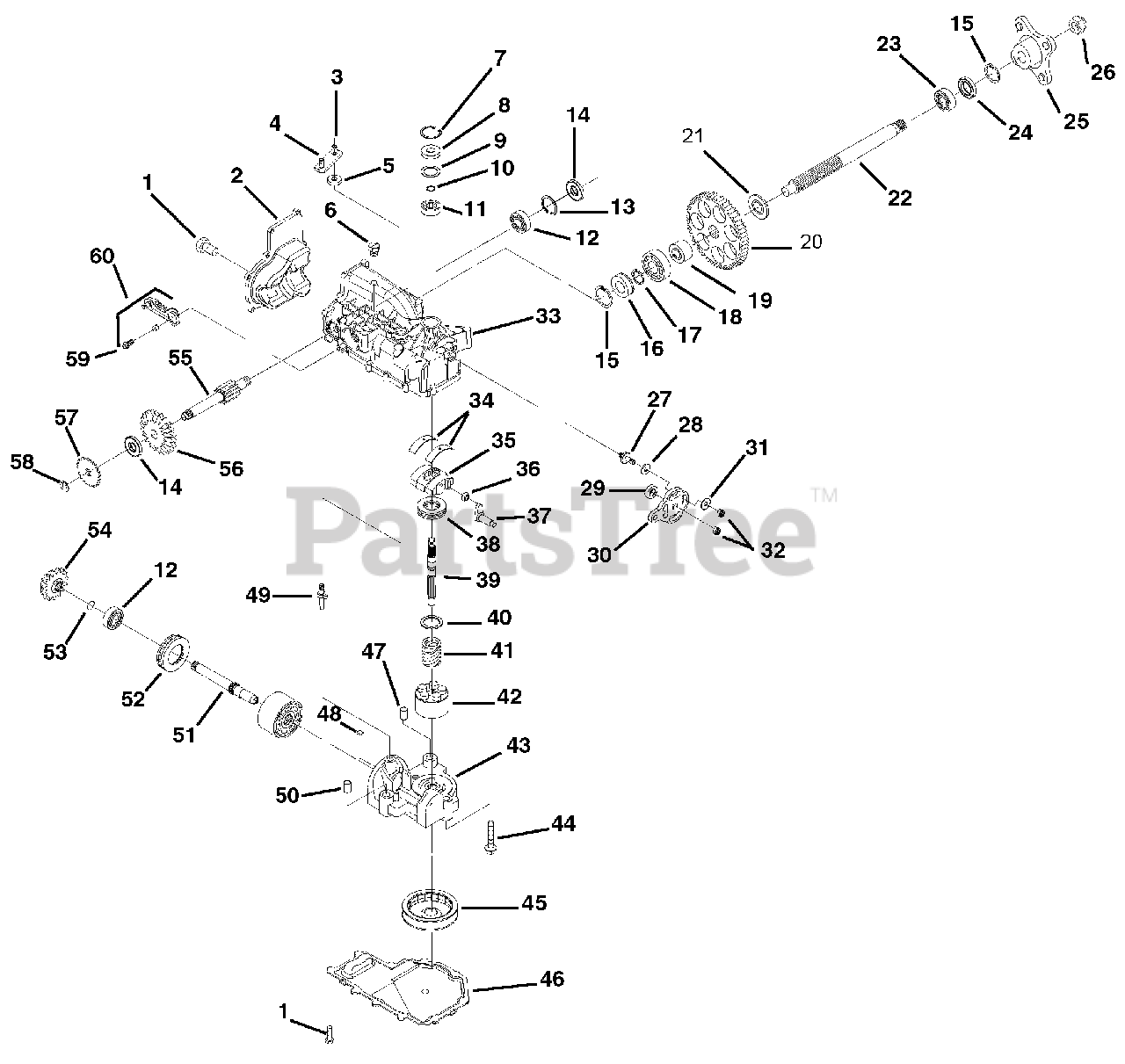

Hydrostatic Transaxle - Left S/N 000101 - 000999 Parts Diagram

  • Title

1

Screw .25-20 x .75

Note: Hydro-Gear p/n 50437

$

$

Not available

2

Gravely 21543984

COVER, END IZT

Note: Hydro-Gear p/n 50891RM

$

$

Not available

3

Gravely 08611400

RING. RETAINING1

Note: Hydro-Gear p/n 44870

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 08611100

ARM. BYPASS

Note: Hydro-Gear p/n 50270

$

$

Not available

5

Gravely 08613800

SEAL, LIP

Note: Hydro-Gear p/n 45074

$

$

Not available

6

Plug-Plastic

Note: Hydro-Gear p/n 9005200-5600

$

$

Not available

7

Gravely 08608800

RING. RETAINING

Note: Hydro-Gear p/n 2003052

$

$

Not available

8

Gravely 21543998

SEAL, LIP 15X35X7

Note: Hydro-Gear p/n 9008000-0128

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 21543964

WASHER .98X1.37X.04

Note: Hydro-Gear p/n 2003018

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 08613300

RING, WIRE RETAINING

Note: Hydro-Gear p/n 2003016

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 08613200

BEARING, SHAFT BALL

Note: Hydro-Gear p/n 2003043

$

$

Not available

12

Gravely 21543738

BRG, BALL 17X40X12

Note: Hydro-Gear p/n 50315

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$7.49

$

Usually ships in 4-12 days

0

14

Seal-Brake Shaft

Note: Hydro-Gear p/n 50735

$

$

Not available

15

Gravely 21543763

RING, RET 1.87 INT

Note: Hydro-Gear p/n 50760

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 21543780

PLUG, SEAL 1.86

Note: Hydro-Gear p/n 50995

$8.49

$

Usually ships in 4-12 days

0

17

Gravely 21543762

RING, RET .75 EXT

Note: Hydro-Gear p/n 50759

$

$

Not available

18

Gravely 21543753

BRG, BALL 20X47X14

Note: Hydro-Gear p/n 50743

$

$

Not available

19

Bushing-Axle

Note: Hydro-Gear p/n 50942-1

$

$

Not available

20

Gravely 21543756

GEAR, SPUR 53T

Note: Hydro-Gear p/n 50746

$

$

Not available

21

Bushing-Axle

Note: Hydro-Gear p/n 50942-2

$

$

Not available

22

Gravely 21543757

AXLE, 1.0X12.3

Note: Hydro-Gear p/n 50748

$160.99

$

In Stock, only 1 left!

0

23

Gravely 21543752

BRG, BALL 25X47X12

Note: Hydro-Gear p/n 50740

$30.99

$

In Stock, only 2 left!

0

24

Gravely 21543758

SEAL, LIP 25X47X7

Note: Hydro-Gear p/n 50751

$7.99

$

In Stock, only 3 left!

0

25

Assembly-Hub

Note: Hydro-Gear p/n 70314

$

$

Not available

26

Nut-Hex 3/4-16

Note: Hydro-Gear p/n 50863

$

$

Not available

27

Gravely 08611000

STUD. SHORT 5/16-24

Note: Hydro-Gear p/n 50426

$

$

Not available

28

Gravely 08613000

PACK, FRICTION

Note: Hydro-Gear p/n 50281

$

$

Not available

29

Seal, Lip

Note: Hydro-Gear p/n 90080000-0126

$

$

Not available

30

Arm-Control

Note: Hydro-Gear p/n 50749

$

$

Not available

31

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

32

Gravely 21543740

NUT, HEX 5/16-24 NYLON

Note: Hydro-Gear p/n 50317

$

$

Not available

33

Assembly-Upper Housing

Note: Hydro-Gear p/n 70329

$

$

Not available

34

Bearing-Cradle

Note: Hydro-Gear p/n 2003023

$

$

Not available

35

Gravely 08609000

SWASHPLATE. VARIABLE

Note: Hydro-Gear p/n 2003087

$

$

Not available

36

Gravely 08610700

GUIDE. SLOT

Note: Hydro-Gear p/n 2000015

$

$

Not available

37

Gravely 08610800

ARM. TRUNNION TAPERED SQUARE

Note: Hydro-Gear p/n 50807

$58.99

$

Usually ships in 4-12 days

0

38

Gravely 08611000

STUD. SHORT 5/16-24

Note: Hydro-Gear p/n 50551

$

$

Not available

39

Gravely 21543719

SHAFT, INPUT

Note: Hydro-Gear p/n 50005

$92.99

$

Usually ships in 4-12 days

0

40

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

41

Gravely 08621500

SPRING. BLOCK

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

42

Gravely 21543889

KIT, 10 CC BLOCK

Note: Hydro-Gear p/n 70331

$103.99

$

Usually ships in 4-12 days

0

43

Assembly-Center Section

Note: Hydro-Gear p/n 70340

$

$

Not available

44

Gravely 21543721

HFHCS 3/8-24X2.5 (PATCH)

Note: Hydro-Gear p/n 50016

$

$

Not available

45

Gravely 21543779

FILTER

Note: Hydro-Gear p/n 50990

$73.99

$

Usually ships in 4-12 days

0

46

Gravely 21543983

HSG, IZT LOWER

Note: Hydro-Gear p/n 50890RM

$

$

Not available

47

Gravely 21543718

PIN-HOLLOW .39X.5X1.

Note: Hydro-Gear p/n 50002

$

$

Not available

48

Bypass Plate

Note: Hydro-Gear p/n 2003554

$

$

Not available

49

Gravely 08609800

ACTUATOR, BYPASS

Note: Hydro-Gear p/n 2003555

$

$

Not available

50

Assembly-Cylinder Block 21cc

Note: Hydro-Gear p/n 70082

$

$

Not available

51

Gravely 21543761

SHAFT, MOTOR

Note: Hydro-Gear p/n 50757

$67.99

$

Usually ships in 4-12 days

0

52

Gravely 08611000

STUD. SHORT 5/16-24

Note: Hydro-Gear p/n 50552

$

$

Not available

53

Gravely 21543960

RING, RET WIRE .561 ID

Note: Hydro-Gear p/n 2000022

$1.99

$

In Stock, only 2 left!

0

54

Gravely 21543754

GEAR, BEVEL 14T

Note: Hydro-Gear p/n 50744

$

$

Not available

55

Kit, Brake Shaft

Note: Hydro-Gear p/n 70393

$

$

Not available

56

Gravely 21543755

GEAR, BEVEL 19T

Note: Hydro-Gear p/n 50745

$

$

Not available

57

Gravely 21543760

BRAKE, PARK SPLINE

Note: Hydro-Gear p/n 50754

$14.99

$

Usually ships in 4-12 days

0

58

Ring-Retaining

Note: Hydro-Gear p/n 70394

$

$

Not available

59

Gravely 21543791

HFHCS 1/4-20X.875

Note: Hydro-Gear p/n 51076

$

$

Not available

60

Gravely 00372000

BRAKE ARM,RH IZT
(Superseded to 51514200)

Note: Hydro-Gear p/n 70391

$56.99

$

In Stock, Qty 5

0
