915026 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) 40" Mower Deck, Belts And Blades Parts Diagram

40" Zero-Turn Mower, 17hp Briggs & Stratton

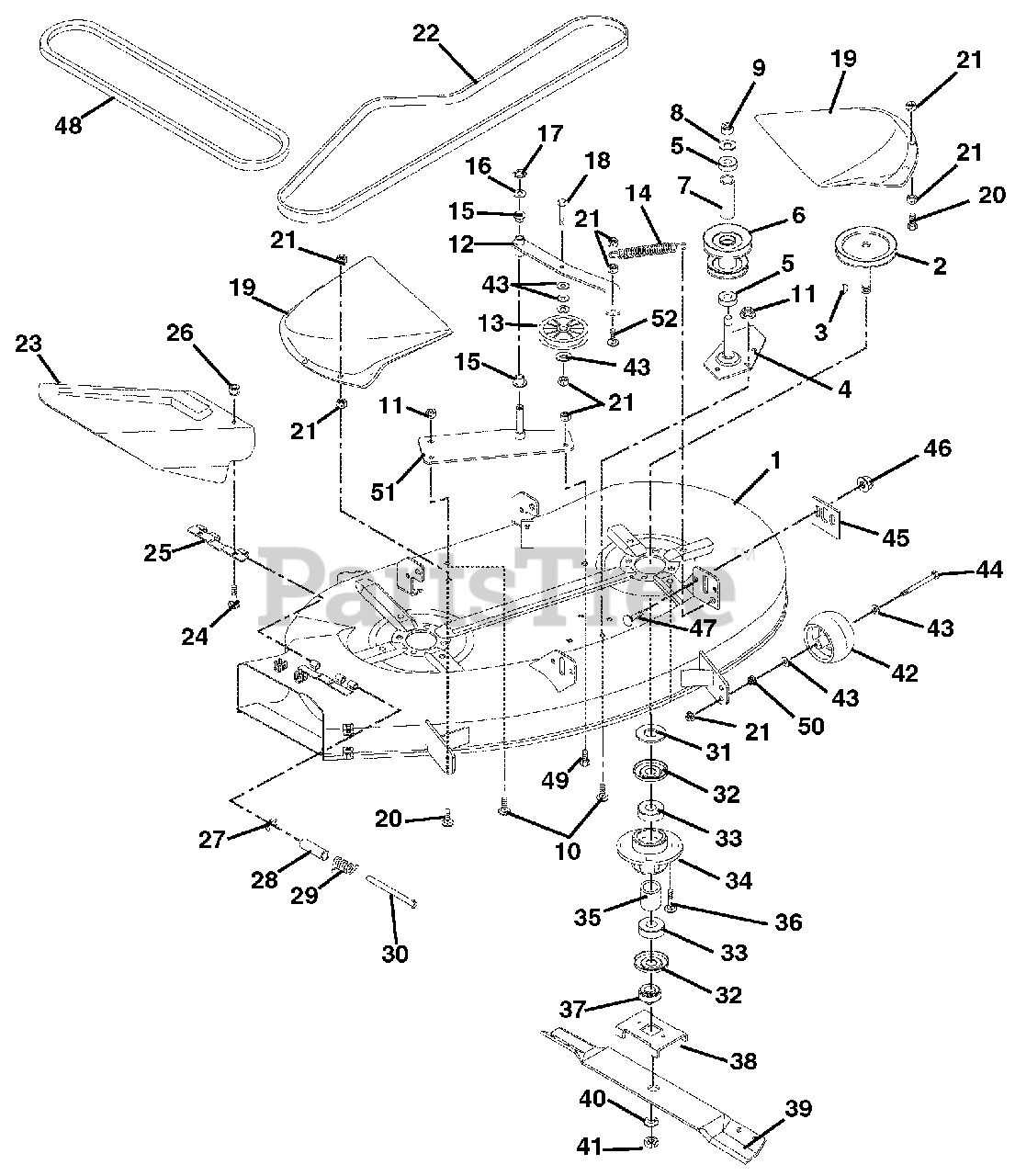

40" Mower Deck, Belts And Blades Parts Diagram

  • Title

1

Gravely 51506100

MWR, 40" GRAVELY ZT W/DECALS

$

$

Not available

1

Gravely 51506200

MWR, 40" GRAVELY ZT COMPLETE

$

$

Not available

2

Gravely 01545000

SPINDLE, 40" PAN

$99.99

$

Usually ships in 4-12 days

0

3

Gravely 06604200

KEY-WDRF .188X.625X.31 SAE9MOD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 01547951

PLATE, MOUNT 40"

$111.99

$

Usually ships in 4-12 days

0

5

Gravely 05435100

BRG-BALL .625X1.375X.43

$16.99

$

In Stock, Qty 20+

0

6

Gravely 03602200

JACKSHAFT PULLEY

$224.99

$

Usually ships in 4-12 days

0

7

Gravely 03615500

SPACER .640X.880X2.545

$29.99

$

In Stock, only 4 left!

0

8

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06530300

NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 8

0

10

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01547851

WELDMENT, IDLER ARM

$67.99

$

Usually ships in 4-12 days

0

13

Gravely 07324600

IDLER 3.5" DIA

$40.99

$

In Stock, Qty 5

0

14

Gravely 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

15

Gravely 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.99

$

In Stock, Qty 5

0

16

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

17

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 01520100

COVER

$69.99

$

Usually ships in 4-12 days

0

20

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07235500

V-BELT, HA-RAW EDGE

$45.99

$

In Stock, Qty 6

0

23

Gravely 03609800

40IN. CHUTE DEFLECTOR

$91.99

$

Usually ships in 4-12 days

0

24

Gravely 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.99

$

In Stock, only 3 left!

0

25

Gravely 02709551

HINGE PLATE

$28.99

$

In Stock, only 4 left!

0

26

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

27

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

In Stock, Qty 11

0

28

Gravely 02202900

BSHG-SLV .334 X .502 X 1.437

$6.49

$

In Stock, only 4 left!

0

29

Gravely 08307200

SG-TORS .095X.50X 1.0

$21.99

$

In Stock, only 4 left!

0

30

Gravely 03624200

PIN

$54.99

$

In Stock, only 2 left!

0

31

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

32

Gravely 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 7

0

33

Gravely 05412000

BRG-BALL .750X1.781X.61

$15.99

$

In Stock, Qty 20+

0

34

Gravely 03625000

SPINDLE HOUSING

$171.99

$

Usually ships in 4-12 days

0

35

Gravely 02526400

SPACER .753X1.000X1.140

$26.99

$

Usually ships in 4-12 days

0

36

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 03037500

RETAINER HUB

$73.99

$

In Stock, only 1 left!

0

38

Gravely 03485500

BLADE TRAY 48

$21.99

$

Usually ships in 4-12 days

0

39

Gravely 03624700

BLADE

$33.99

$

In Stock, Qty 10

0

40

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0

41

Gravely 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

42

Gravely 050825

ROLLER
(Superseded to 02745400)

$16.99

$

In Stock, Qty 20+

0

43

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$4.99

$

In Stock, Qty 20+

0

45

Gravely 01528751

MOWER ADJUSTMENT TAB

$

$

Not available

46

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

48

Gravely 07234300

V-BELT, HA-WRAPPED

$39.99

$

In Stock, Qty 11

0

49

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

50

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 01547751

WELDMENT, IDLER MOUNT

$

$

Not available

52

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0
