915026 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Cover Assembly, Solenoid And Switches Parts Diagram

40" Zero-Turn Mower, 17hp Briggs & Stratton

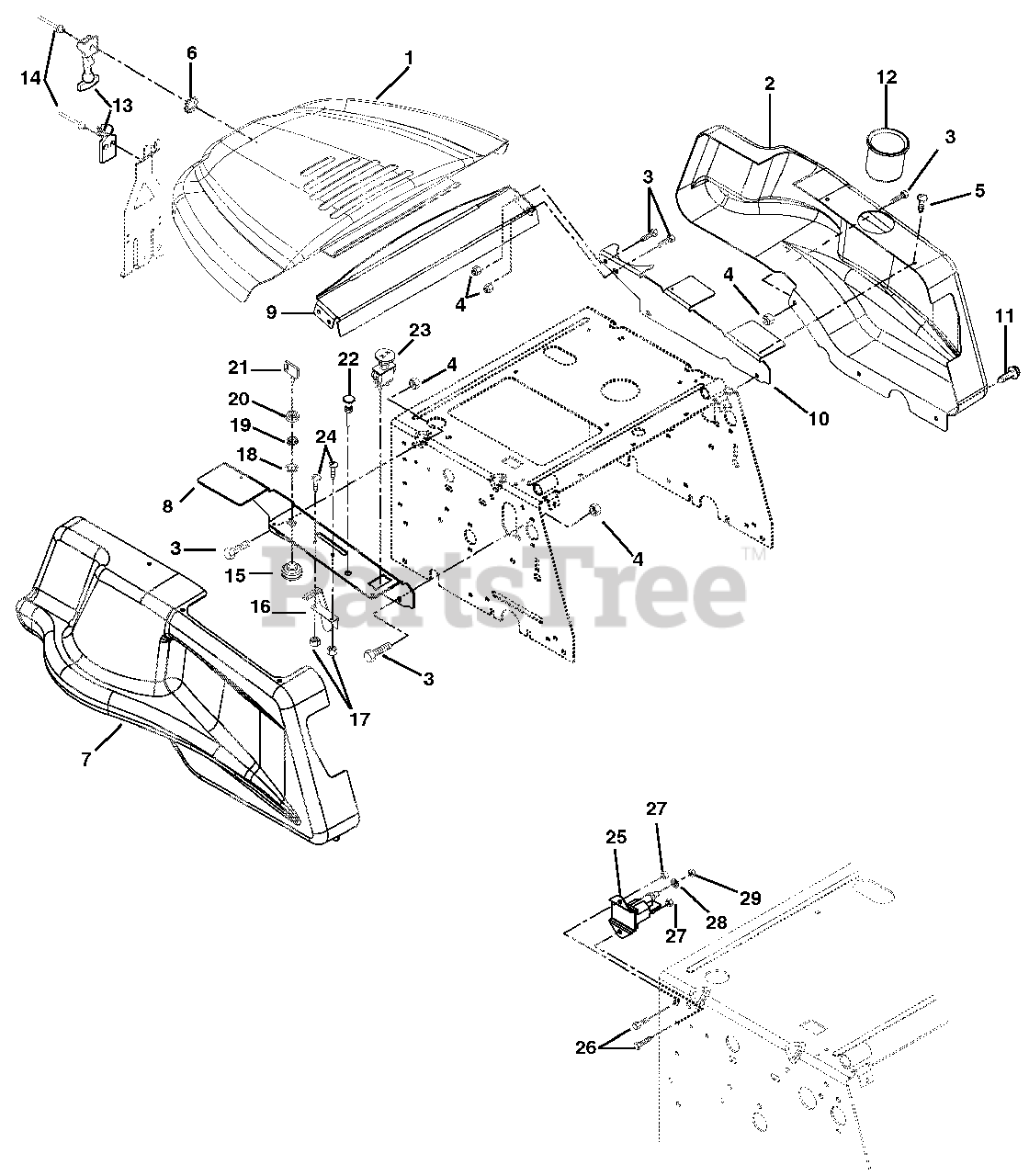

Cover Assembly, Solenoid And Switches Parts Diagram

  • Title

1

Gravely 01567451

SHROUD, TOP

$

$

Not available

2

Gravely 01553453

SHROUD, SIDE LH

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 07047100

BLT SERHFWH .31-18X.62 GR5YWZC

$1.99

$

In Stock, only 3 left!

0

4

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07411000

SCR-TAP #10-16 X .625 HWH

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 07010500

RVT-BURR .125X.505X.048

$5.49

$

Usually ships in 4-12 days

0

7

Gravely 01553353

SHROUD, SIDE RH

$145.99

$

Usually ships in 4-12 days

0

8

Gravely 01554051

CONTROL, BRACKET

$

$

Not available

9

Gravely 01553851

HOOD, BRACKET

$

$

Not available

10

Gravely 01553951

FUEL TANK, BRACKET

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01528500

CUPHOLDER

$15.99

$

In Stock, only 2 left!

0

13

Gravely 035294

LATCH,FLEXIBLE
(Superseded to 08704700)

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 06804400

RVT-POP.125 X .357 DOME PL

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 01563700

SWITCH KEY 5Y463A ALT GRDNG

$35.99

$

In Stock, Qty 5

0

16

Gravely 06948300

CABLE, THROTTLE 30.12

Note: (024, 025)

$

$

Not available

16

Gravely 06942200

CABLE, THROTTLE 19.5

Note: (026)

$

$

Not available

17

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06310900

WSHR-LK-INT .563X.040 YWZC

$2.49

$

In Stock, only 1 left!

0

19

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

20

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

21

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

21

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

22

Gravely 06942300

CABLE, CHOKE

Note: (024, 025)

$40.99

$

Usually ships in 4-12 days

0

22

Gravely 00529900

HOLE PLUG, PLASTIC .44 HOLE

Note: (026)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

24

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

26

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

27

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

29

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0
