915026 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust And Belts Parts Diagram

40" Zero-Turn Mower, 17hp Briggs & Stratton

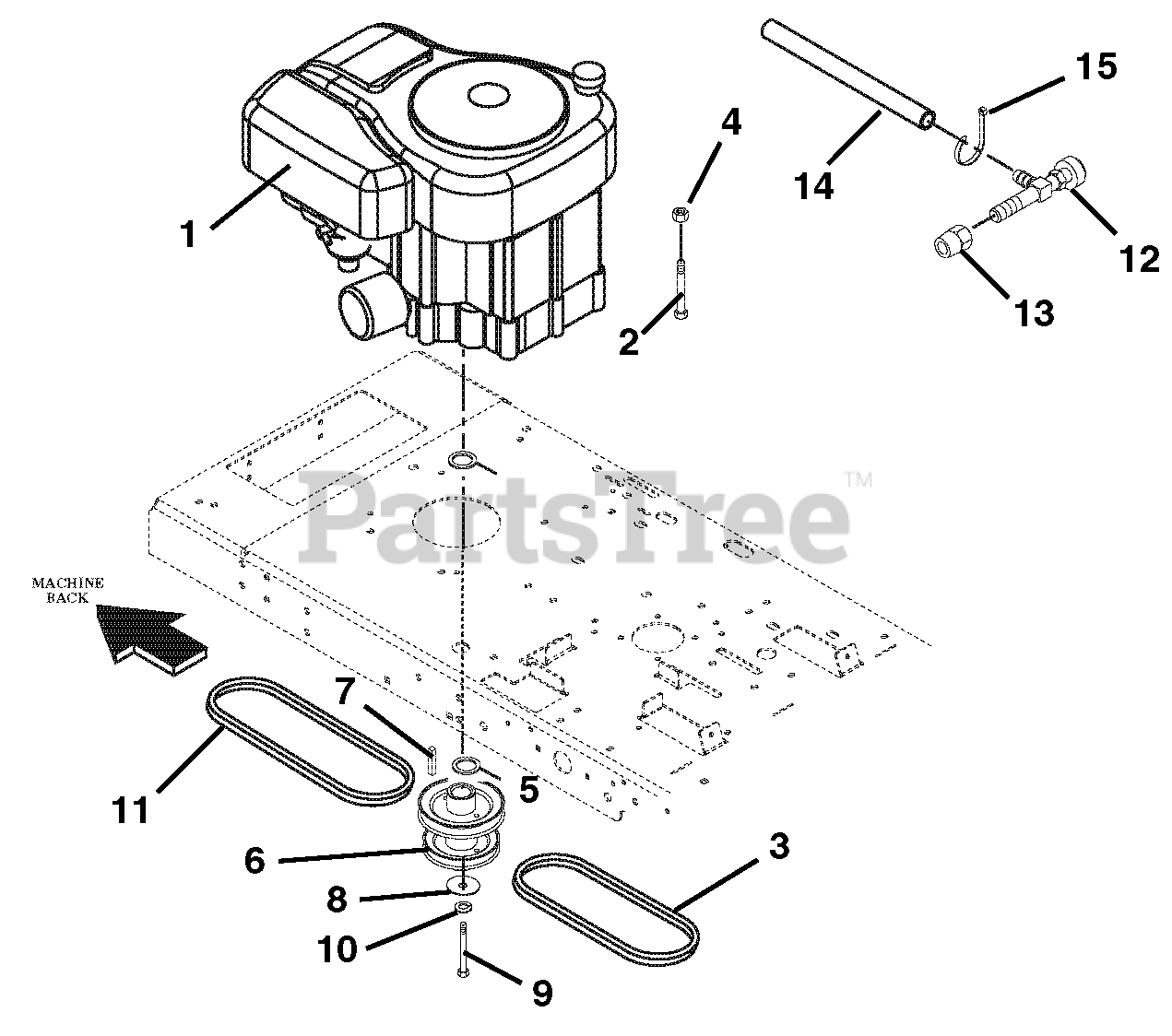

Engine, Exhaust And Belts Parts Diagram

  • Title

1

Gravely 51506700

Engine Group, Briggs & Stratton 15.5HP

Note: (026)

$

$

Not available

2

Gravely 07415300

Screw-Tapping .31-18 x 1.50 Hex Washer Head

$

$

Not available

3

Gravely 07235700

Belt-5L x 47.1 Engine to Jackshaft

$52.99

$

In Stock, only 4 left!

0

4

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 01558200

Spacer

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 01557700

Engine Sheave 4.50

$107.99

$

In Stock, only 2 left!

0

7

Gravely 06602600

Key-Square .25 x 2.50 x .25

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 06443600

Washer-Special .469 x 2.000 x .250
(Superseded to 06401111)

$7.99

$

In Stock, Qty 14

0

9

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$7.49

$

In Stock, Qty 8

0

10

Gravely 06309300

Washer-Lock .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

11

Gravely 07213600

V-Belt, Transmission Drive

$38.99

$

In Stock, only 3 left!

0

12

Gravely 03493200

Cock, Oil Drain
(Superseded to 00429000)

$40.99

$

In Stock, only 2 left!

0

13

Gravely 03493100

Adapter, Oil Drain

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 01523400

Tube, Oil Drain

$

$

Not available

15

Gravely 07517300

Cable Tie

$1.49

$

Usually ships in 4-12 days

0
