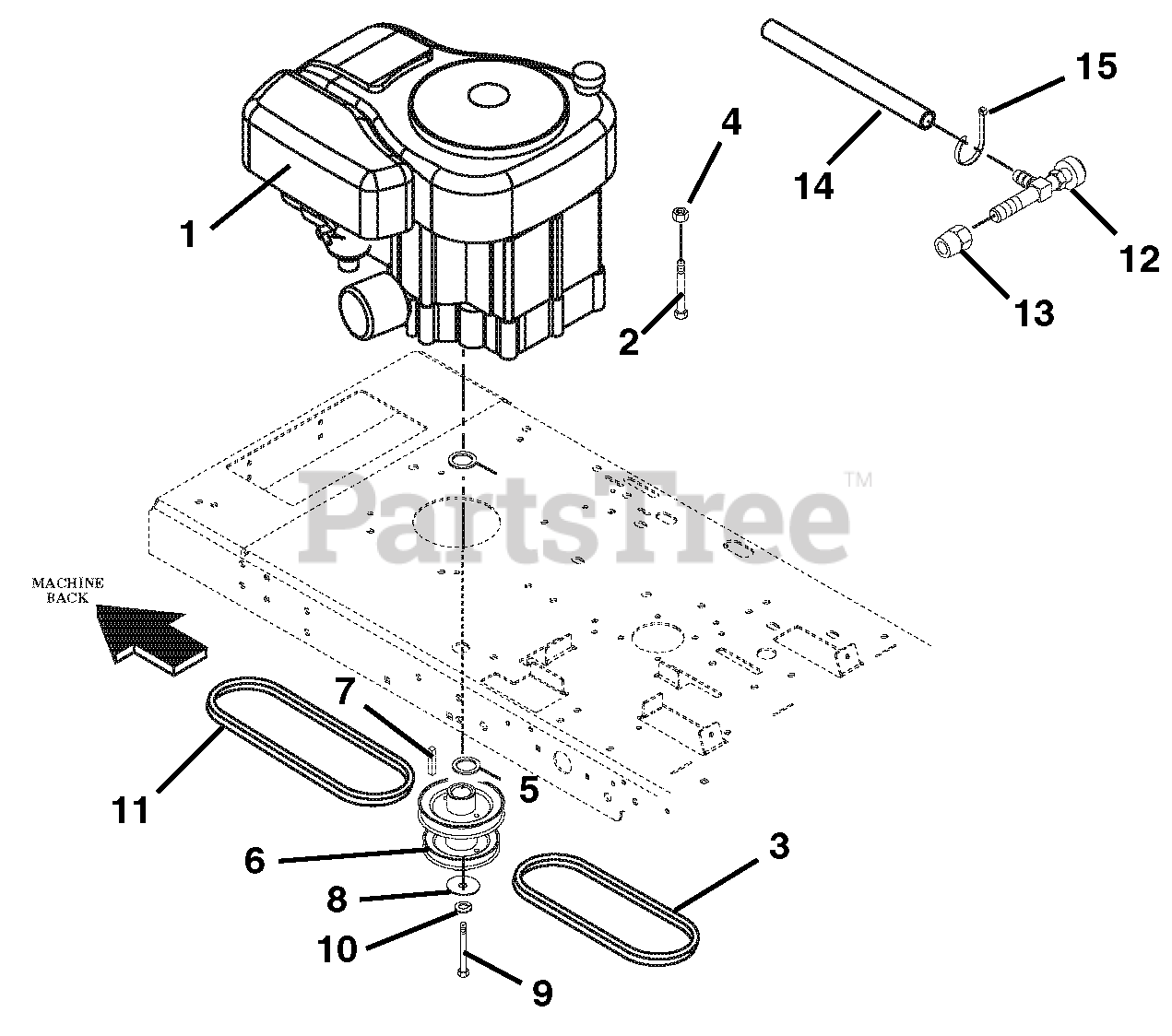

915026 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust And Belts Parts Diagram

40" Zero-Turn Mower, 17hp Briggs & Stratton

Engine, Exhaust And Belts Parts Diagram

  • Title

1

Gravely 51506700

ENGINE GROUP - 17.5HP GRAVELY

Note: (026)

$

$

Not available

2

Gravely 07415300

SCR-TAP .31-18X1.50 HWH TR YZ

$

$

Not available

3

Gravely 07235700

V-BELT, HB-WRAPPED

$52.99

$

In Stock, Qty 13

0

4

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 01558200

SPACER 1.09 X 1.50 X .105

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 01557700

ENGINE SHEAVE 4.50

$107.99

$

In Stock, only 4 left!

0

7

Gravely 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$6.49

$

In Stock, only 2 left!

0

8

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 13

0

10

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 07213600

V-BELT, HA-WRAPPED

$38.99

$

In Stock, only 3 left!

0

12

Gravely 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

13

Gravely 03493100

ADAPTER, OIL DRAIN

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 01523400

TUBE OIL DRAIN

$

$

Not available

15

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0
