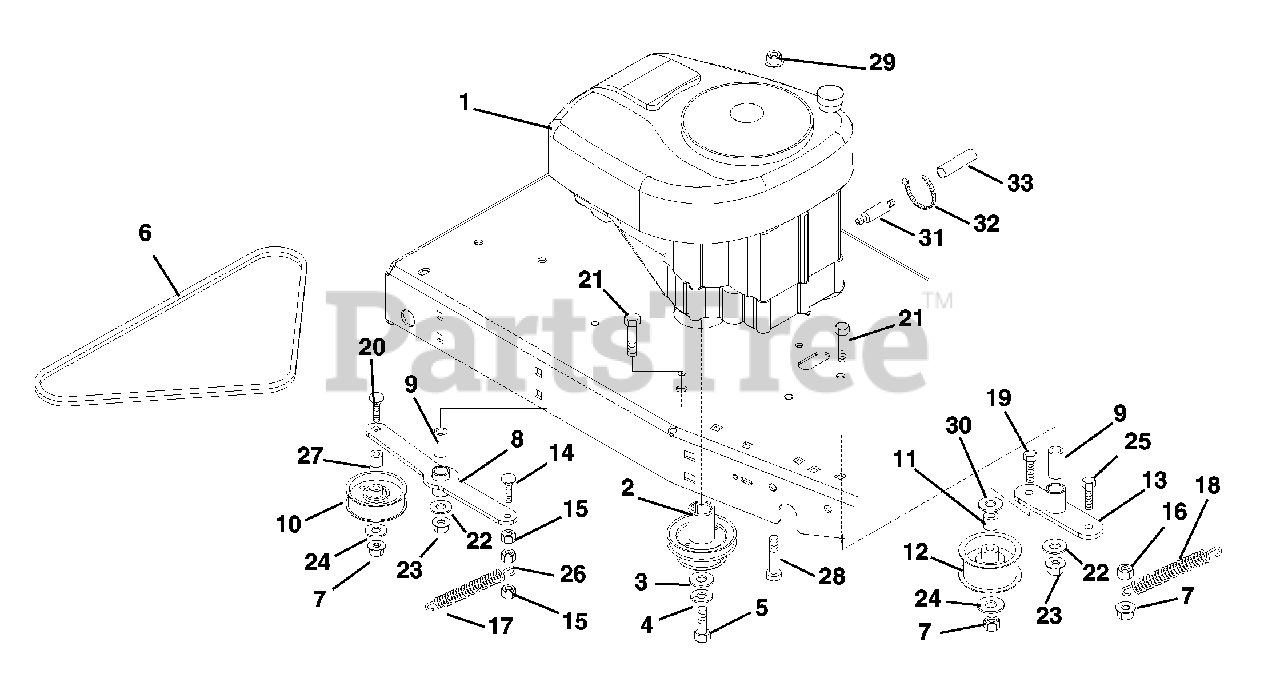

915030 (Sport ZT 1232) - Gravely 32" Zero-Turn Mower, 12hp Briggs & Stratton (SN: 010000 & Above) Engine, Belts And Idlers Parts Diagram

32" Zero-Turn Mower, 12hp Briggs & Stratton

Engine, Belts And Idlers Parts Diagram

  • Title

1

Gravely 51509800

ENGINE GROUP-12 HP

Note: (08200001) (030)

$

$

Not available

Gravely 51509900

ENGINE GROUP-14 HP

Note: (08268600) (032)

$

$

Not available

2

Gravely 01594900

ENGINE-SHEAVE

Note: (030)

$

$

Not available

Gravely 01602400

ENGINE-SHEAVE, 40" SPORT-Z

Note: (032)

$

$

Not available

3

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 05965600

BLT-HEX .44-20X1.50 GR5 YWZC
(Superseded to 05902004)

$6.49

$

In Stock, Qty 10

0

6

Gravely 052776

V-BELT, HA-RAW EDGE
(Superseded to 07223800)

$28.99

$

In Stock, only 2 left!

0

7

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 01599000

WLDM'T-IDLER (IZT)

$

$

Not available

9

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 6

0

10

Gravely 052062

IDLER-PLY FLAT 3.25 X .38 X1.0
(Superseded to 07320700)

$35.99

$

In Stock, Qty 5

0

11

Gravely 01591000

BSHG-SPCR .41X75X.69

$

$

Not available

12

Gravely 048870

IDLER 2.75X1.25
(Superseded to 07318400)

$23.99

$

In Stock, only 3 left!

0

13

Gravely 01598900

BRKT, IDLER (WLDMNT)

$

$

Not available

14

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06535100

NUT-LK ESNA THIN .50-13 YWZC

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 015353

SG-TENS .075X.75X2.25 WLD20.7
(Superseded to 08327600)

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 08311000

SG-TENS .080X.687X5.16 WLD 28

$15.99

$

In Stock, only 4 left!

0

19

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06224300

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 11

0

21

Gravely 05961000

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

28

Gravely 05972700

SCR-SKH BTHD .31-18 X 1.50 GR8

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06443800

WSHR,FL-STL.43X1.00X.160 ZC120

Note: (031)

$3.99

$

In Stock, only 1 left!

0

31

Gravely 07067800

VALVE, OIL DRAIN

$40.99

$

Usually ships in 4-12 days

0

32

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

33

Gravely 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$6.49

$

Usually ships in 4-12 days

0
