915030 (Sport ZT 1232) - Gravely 32" Zero-Turn Mower, 12hp Briggs & Stratton (SN: 010000 & Above) Rear Wheel And Hydro Drive Parts Diagram

32" Zero-Turn Mower, 12hp Briggs & Stratton

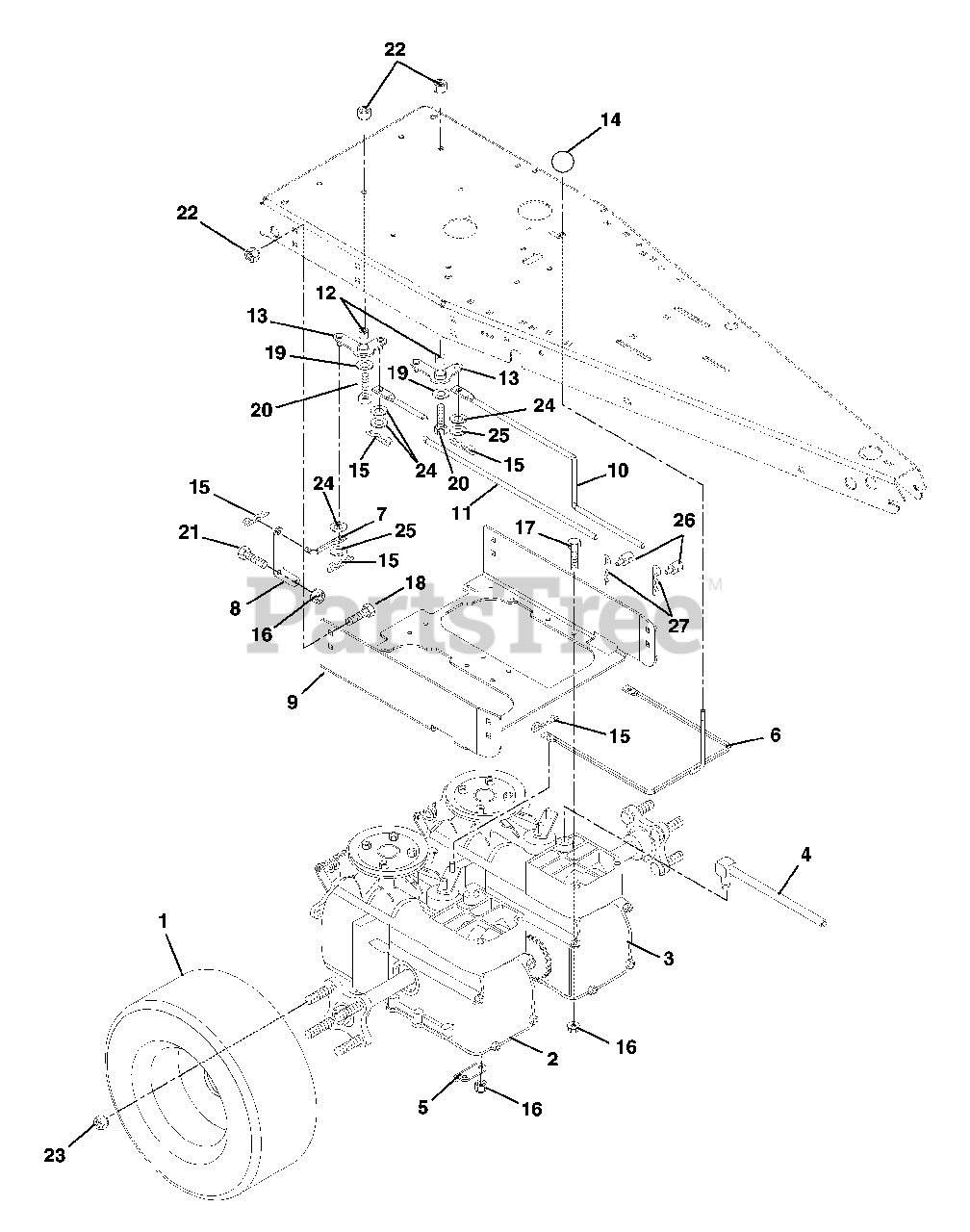

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Gravely 07159600

T/WHL ASM 18X6.50-8 2 PLY

Note: (032)

$172.99

$

Usually ships in 4-12 days

0

Gravely 07159800

T/WHL ASM 18X6.50-8 2 PLY
(Superseded to 07100310)

Note: (030)

$116.99

$

In Stock, only 2 left!

0

2

Gravely 01597800

TRANSAXLE, HYDRO-GEAR

$

$

Not available

3

Gravely 01597900

TRANSAXLE, HYDRO-GEAR

$

$

Not available

4

Gravely 01598200

IZT, BREATHER ASSEMBLY

$

$

Not available

5

Gravely 01598051

BRACKET-AXLE SUPPORT

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 01598100

DUMP ROD WLDM'T

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 01594600

ROD-BELL CRANK

$

$

Not available

8

Gravely 01595900

BRACKET

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 01595851

CRADLE, IZT

$131.99

$

Usually ships in 4-12 days

0

10

Gravely 01594500

ROD-STEERING LH

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 01594400

ROD-STEERING RH

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

13

Gravely 01595500

WLDM'T-BELL CRANK

$54.99

$

Usually ships in 4-12 days

0

14

Gravely 07515900

KNOB, BALL 5/16-18 X 1.5

$22.99

$

In Stock, only 1 left!

0

15

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

16

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

26

Gravely 01596400

TRUNNION, BRAKE .31-18 UNC

$52.99

$

Usually ships in 4-12 days

0

27

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0
