915031 (1232) - Ariens Sport Zoom 32" Zero-Turn Mower, 12hp Briggs & Stratton (SN: 010000 & Above) Park Brake Parts Diagram

Sport Zoom 32" Zero-Turn Mower, 12hp Briggs & Stratton

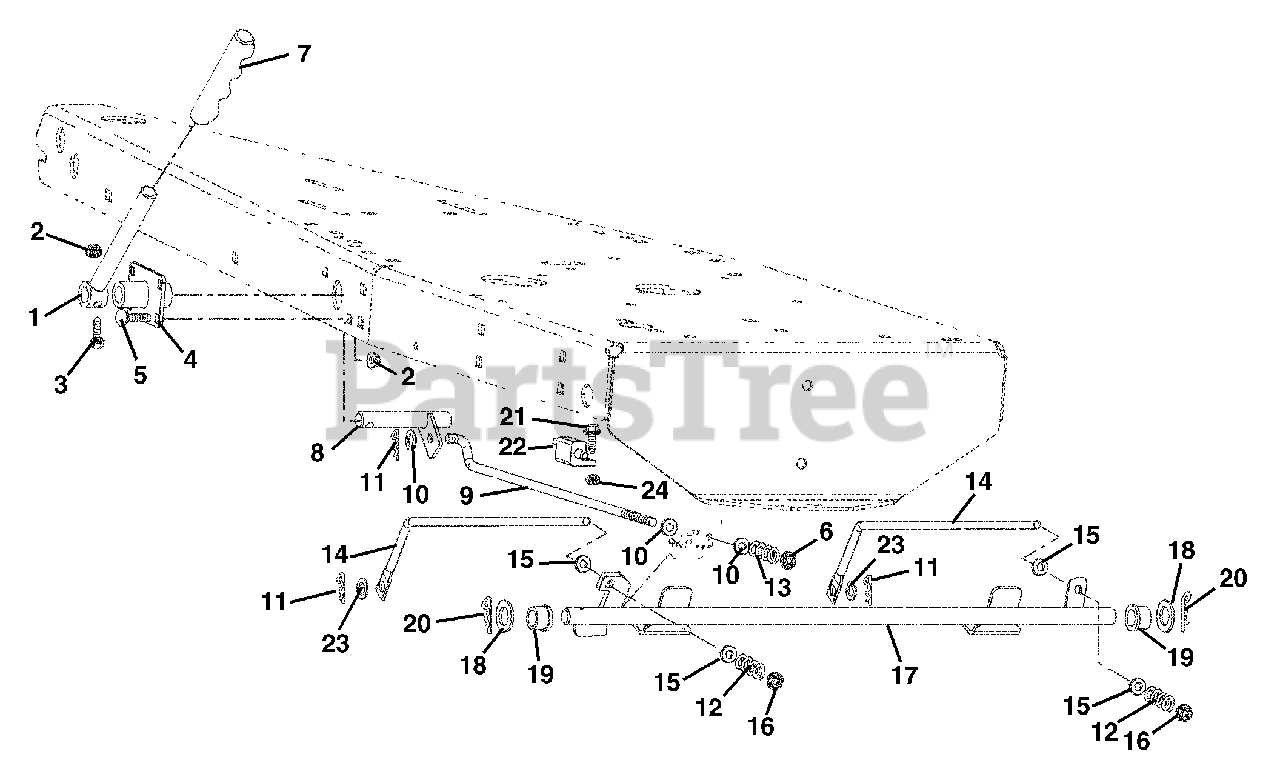

Park Brake Parts Diagram

  • Title

1

Ariens 01596300

WMT, HANDLE

$

$

Not available

2

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.49

$

In Stock, Qty 15

0

3

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

4

Ariens 01596000

WMT, HANDLE PIVOT

$

$

Not available

5

Ariens 06226700

BLT-RDHDSQNK .31-18X.75 G5BZ
(Superseded to 06215700)

$2.49

$

In Stock, Qty 11

0

6

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07527500

GRIP

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 01596100

WMT, PIVOT ARM

$

$

Not available

9

Ariens 01602100

ROD, ARM-LOCKING

$20.99

$

Usually ships in 4-12 days

0

10

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

12

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 8

0

13

Ariens 08313100

SG-COMP .063X.53X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 8

0

14

Ariens 01602000

ROD, BRAKE ACTUATING

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

16

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 01602200

SHAFT, BRAKE-WELDMENT

$

$

Not available

18

Ariens 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 05517400

BSHG-FLG .630X1.000X.625 NY

$6.99

$

In Stock, only 2 left!

0

20

Ariens 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

21

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

22

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, Qty 8

0

23

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0
