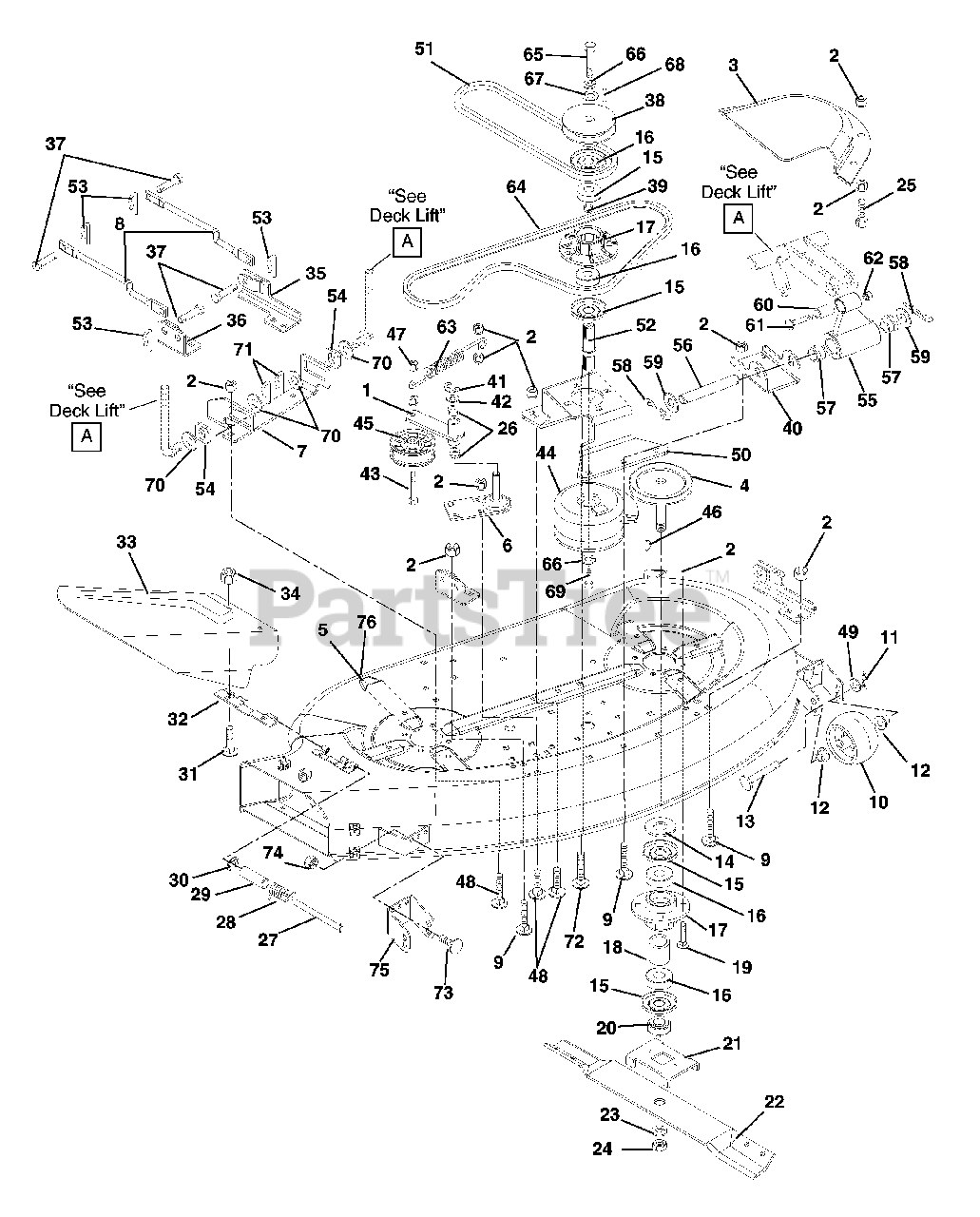

915032 (Sport ZT 1440) - Gravely 40" Zero-Turn Mower, 14hp Briggs & Stratton (SN: 010000 & Above) Deck, Belts, Blades And Idlers 40" Parts Diagram

40" Zero-Turn Mower, 14hp Briggs & Stratton

Deck, Belts, Blades And Idlers 40" Parts Diagram

  • Title

1

Gravely 02769200

WLDMT-IDLER

$

$

Not available

2

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 02781200

COVER, 40" DECK SHEAVE

$

$

Not available

4

Gravely 03615400

L. SPINDLE SHEAVE

$92.99

$

Usually ships in 4-12 days

0

Gravely 03615300

R. SPINDLE SHEAVE

$76.99

$

Usually ships in 4-12 days

0

5

Gravely 02769600

WLDMT - 40" DECK RAW

$

$

Not available

6

Gravely 02769300

BKT-IDLER MOUNT

$

$

Not available

7

Gravely 02778500

BRKT, REAR HANGER (40" DECK)

$

$

Not available

8

Gravely 02769700

LINK-STABILIZER 40" DECK BLK

$

$

Not available

9

Gravely 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 050825

ROLLER
(Superseded to 02745400)

$16.99

$

In Stock, Qty 20+

0

11

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 036241

BSHG-FLG .372X.500X.312X.625NY
(Superseded to 05503600)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 02747500

PIN-CLEV .371X3.25 YWZC

$6.99

$

In Stock, Qty 12

0

14

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 7

0

16

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

17

Gravely 03625000

SPINDLE HOUSING

$171.99

$

Usually ships in 4-12 days

0

18

Gravely 035971

SPACER .753X1.000X1.140
(Superseded to 02526400)

$26.99

$

Usually ships in 4-12 days

0

19

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 039559

RETAINER HUB
(Superseded to 03037500)

$73.99

$

In Stock, only 1 left!

0

21

Gravely 03485500

BLADE TRAY 48

$21.99

$

Usually ships in 4-12 days

0

22

Gravely 03624700

BLADE

$33.99

$

In Stock, Qty 10

0

23

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0

24

Gravely 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

25

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 036057

BSHG-FLG.500X.625X.312X.750NY
(Superseded to 05503700)

$3.99

$

In Stock, Qty 5

0

27

Gravely 03624200

PIN

$54.99

$

In Stock, only 2 left!

0

28

Gravely 08307200

SG-TORS .095X.50X 1.0

$21.99

$

In Stock, only 4 left!

0

29

Gravely 035997

BSHG-SLV .334 X .502 X 1.437
(Superseded to 02202900)

$6.49

$

In Stock, only 4 left!

0

30

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

In Stock, Qty 11

0

31

Gravely 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.99

$

In Stock, only 3 left!

0

32

Gravely 02709551

HINGE PLATE

$28.99

$

In Stock, only 4 left!

0

33

Gravely 03609800

40IN. CHUTE DEFLECTOR

$91.99

$

Usually ships in 4-12 days

0

34

Gravely 06527600

NUT-LK-FLG .250-20 PL BLK

$1.49

$

In Stock, Qty 5

0

35

Gravely 02769800

BKT-DECK LINK (LH)

$

$

Not available

36

Gravely 02763700

WLDMT DECK LINK BKT (RH)

$

$

Not available

37

Gravely 06817400

PIN-CLEV .494X1.00 BLKZC

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 02779000

PULLEY, 40" DECK INPUT

$

$

Not available

39

Gravely 035971

SPACER .753X1.000X1.140
(Superseded to 02526400)

$26.99

$

Usually ships in 4-12 days

0

40

Gravely 02778300

BRKT, FRONT HANGER

$14.99

$

Usually ships in 4-12 days

0

41

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

43

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

44

Gravely 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

$266.99

$

Usually ships in 4-12 days

0

45

Gravely 07309300

IDLER-FLAT 3.00X.38

$38.99

$

In Stock, Qty 5

0

46

Gravely 06604200

KEY-WDRF .188X.625X.31 SAE9MOD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

48

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

49

Gravely 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.99

$

In Stock, only 2 left!

0

50

Gravely 02768600

BKT SPINDLE HSG MOUNT

$

$

Not available

51

Gravely 07242600

V-BELT, HA-WRAPPED

$46.99

$

In Stock, only 2 left!

0

52

Gravely 02778600

SHAFT, 40" DECK INPUT

$111.99

$

Usually ships in 4-12 days

0

53

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

54

Gravely 02778400

SLIDER, HANGER BRKT

$

$

Not available

55

Gravely 02779700

LINK, FRONT LIFT (40" DECK)

$

$

Not available

56

Gravely 02780000

PIVOT, FRONT LIFT LOWER

$5.99

$

Usually ships in 4-12 days

0

57

Gravely 01591100

BUSHING-1"X.75"X1"

$10.99

$

Usually ships in 4-12 days

0

58

Gravely 06712200

PIN, HAIR #6

$

$

Not available

59

Gravely 035640

WSHR-FL-STL .700X1.47X.134 YWZ
(Superseded to 06427600)

$5.99

$

Usually ships in 4-12 days

0

60

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 6

0

61

Gravely 06223700

BLT-RDHDSQSHNK .50-13X2.75 YZ
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

62

Gravely 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.99

$

Usually ships in 4-12 days

0

63

Gravely 011263

SG-TENS .095X.500X5.5 WLD60 YZ
(Superseded to 08353300)

$15.99

$

Usually ships in 4-12 days

0

64

Gravely 041200

V-BELT, HA-RAW EDGE
(Superseded to 07220500)

$38.99

$

In Stock, only 3 left!

0

65

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

66

Gravely 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

67

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

68

Gravely 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 1 left!

0

69

Gravely 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$3.49

$

In Stock, only 2 left!

0

70

Gravely 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$3.99

$

In Stock, only 1 left!

0

71

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

72

Gravely 06224300

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 11

0

73

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

74

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

75

Gravely 02747600

ROLLER CLEVIS
(Superseded to 02747651)

$28.99

$

In Stock, only 1 left!

0

76

Gravely 52711200

KIT, 40" DECK ASSY SERVICE

$

$

Not available
