915034 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Baffles And Chute Parts Diagram

40" Zero-Turn Mower, 16hp Briggs & Stratton

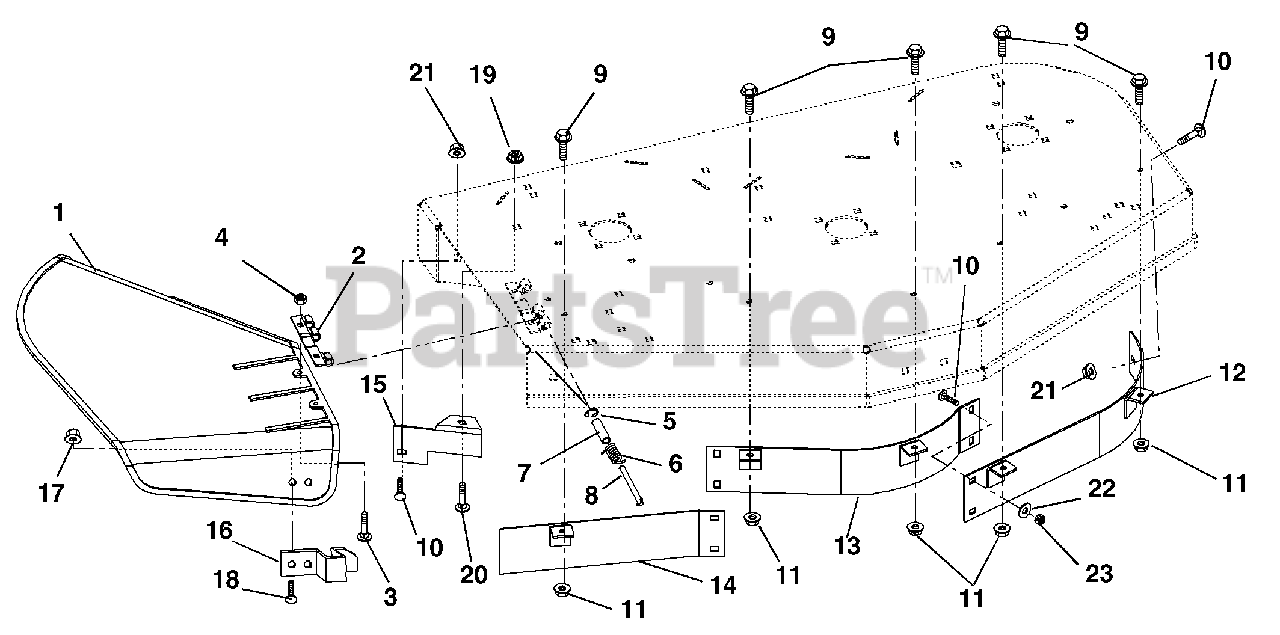

Baffles And Chute Parts Diagram

  • Title

1

Gravely 01585500

Deflector, Chute

$80.99

$

In Stock, Qty 5

0

2

Gravely 02709551

Hinge, Plate

$28.99

$

In Stock, only 3 left!

0

3

Gravely 06227800

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06219900)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 06544800

Nut, Spin Lock Flange .25-20
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05706300

Ring, Retaining External .312 x .025

$0.99

$

Usually ships in 4-12 days

0

6

Gravely 035996

Spring, Torsion .095 x .50 x 1.00
(Superseded to 08307200)

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 035997

Bushing, Sleeve
(Superseded to 02202900)

$6.49

$

In Stock, only 4 left!

0

8

Gravely 03624200

Pin

$54.99

$

In Stock, only 1 left!

0

9

Gravely 07068000

Bolt, Serrated Hex Flange Washer Head .31-18 x .62
(Superseded to 07047100)

$1.99

$

In Stock, Qty 5

0

10

Gravely 06227900

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01576151

Weldment, Upper Left Baffle-40" (034)

Note: (034)

$74.99

$

Usually ships in 4-12 days

0

12

Gravely 01572451

Weldment, Upper Left Baffle-44" (036)

Note: (036)

$101.99

$

Usually ships in 4-12 days

0

12

Gravely 01574051

Weldment, Upper Left Baffle-48" (038)

Note: (038)

$81.99

$

In Stock, only 1 left!

0

12

Gravely 01575051

Weldment, Upper Left Baffle-52" (040)

Note: (040)

$76.99

$

Usually ships in 4-12 days

0

13

Gravely 01576251

Weldment, Upper Center Baffle-40" (034)

Note: (034)

$71.99

$

Usually ships in 4-12 days

0

13

Gravely 01572551

Weldment, Upper Center Baffle-44" (036)

Note: (036)

$77.99

$

Usually ships in 4-12 days

0

13

Gravely 01574151

Weldment, Upper Center Baffle-48" (038)

Note: (038)

$68.99

$

Usually ships in 4-12 days

0

13

Gravely 01575151

Weldment, Upper Center Baffle-52" (040)

Note: (040)

$105.99

$

Usually ships in 4-12 days

0

14

Gravely 01576351

Weldment, Upper Right Baffle-40" (034)

Note: (034)

$67.99

$

Usually ships in 4-12 days

0

14

Gravely 01572651

Weldment, Upper Right Baffle-44" (036)

Note: (036)

$38.99

$

Usually ships in 4-12 days

0

14

Gravely 01574251

Weldment, Upper Right Baffle-48" (038)

Note: (038)

$62.99

$

In Stock, only 1 left!

0

14

Gravely 01575251

Weldment, Upper Right Baffle-52" (040)

Note: (040)

$56.99

$

Usually ships in 4-12 days

0

15

Gravely 01576751

Deflector, 40" (034)

Note: (034)

$35.99

$

In Stock, only 1 left!

0

15

Gravely 01574651

Deflector, 44"/48" (036, 038)

Note: (036, 038)

$35.99

$

Usually ships in 4-12 days

0

15

Gravely 01575951

Deflector, 52" (040)

Note: (040)

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 01597751

Flat Spring

$21.99

$

In Stock, only 1 left!

0

17

Gravely 06544900

Nut, Locking Top Flange .25-20
(Superseded to 06543500)

$1.49

$

In Stock, Qty 8

0

18

Gravely 06228000

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06220600)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.99

$

In Stock, only 4 left!

0

21

Gravely 06545200

Nut-Flange .31-18
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0
