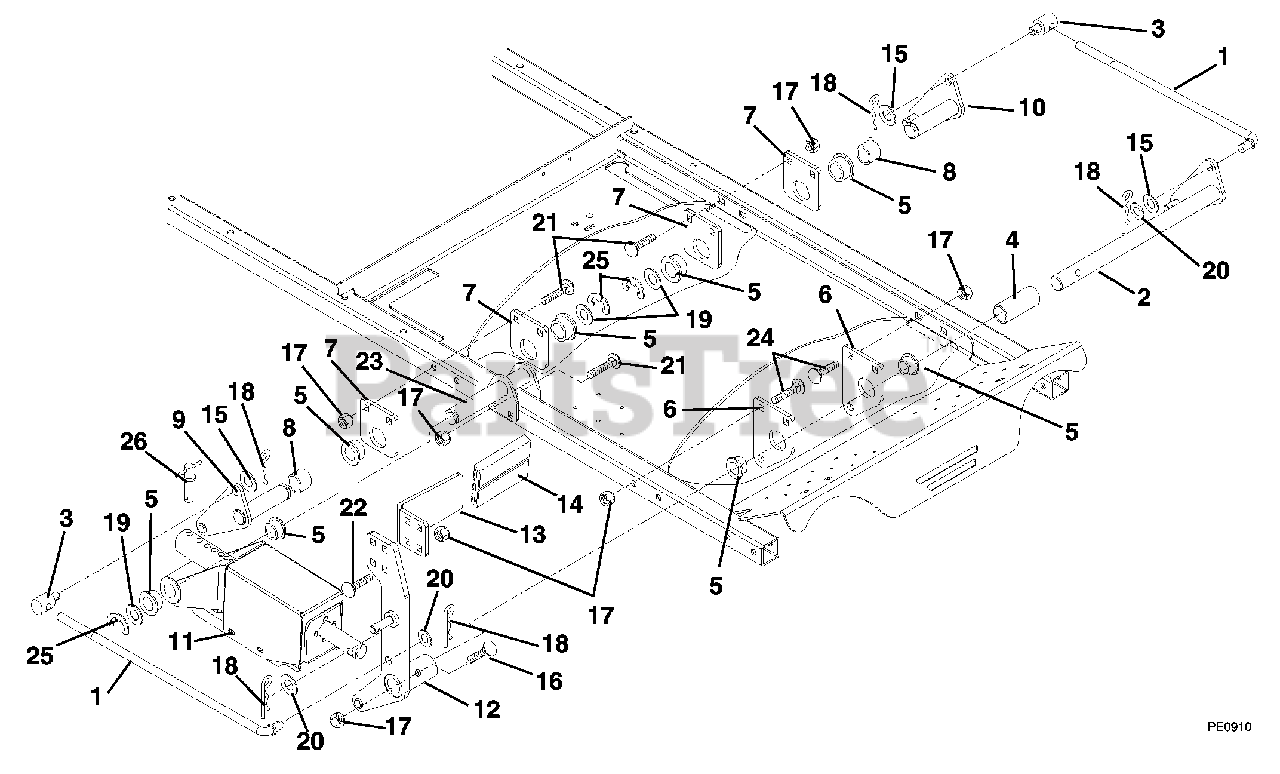

915034 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Mower Deck Lift Parts Diagram

40" Zero-Turn Mower, 16hp Briggs & Stratton

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 01592000

Linkage, Lift
(Superseded to 00270400)

$39.99

$

In Stock, only 2 left!

0

2

Gravely 01592100

Weldment, Lift, Front

$

$

Not available

3

Gravely 01590400

Trunnion

$45.99

$

In Stock, Qty 8

0

4

Gravely 01592200

Bushing, Front

$

$

Not available

5

Gravely 018355

Bushing, Flange 1.02 x 1.385 x .75 x 1.75 Nylon
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

6

Gravely 01592351

Bracket, Mount, Front
(Superseded to 00182851)

$

$

Not available

7

Gravely 01591951

Bracket, Mount, Rear
(Superseded to 00175851)

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 01591800

Bushing, Rear

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 01591700

Weldment, Lift, Rear Right Hand

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 01591600

Weldment, Lift, Rear Left Hand

$51.99

$

Usually ships in 4-12 days

0

11

Gravely 51509600

Assembly, Zoom Lift

$

$

Not available

12

Gravely 01600200

Weldment, Lift Pedal Mount

$

$

Not available

13

Gravely 01600351

Pedal, Foot Lift

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 041944

Pad,Pedal
(Superseded to 00270100)

$3.49

$

In Stock, Qty 5

0

15

Gravely 06447600

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06436400)

$2.99

$

In Stock, Qty 13

0

16

Gravely 05963300

Bolt, Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 12

0

17

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06714900

Pin, Hair External

$0.99

$

In Stock, Qty 18

0

19

Gravely 06443000

Washer, Flat Steel 1.06 x 2.00 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

20

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06226900

Bolt, Round Head Square Neck .38-16 x 2.50 Grade
(Superseded to 06224400)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06226600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

23

Gravely 01592500

Weldment, Pivot Mount

$

$

Not available

24

Gravely 06226800

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 05716800

Ring, Retaining .82 x 1.50 x .05

$2.49

$

In Stock, only 4 left!

0

26

Gravely 01593500

Pin, Spring Ball .375 O.D. x 1.50

$5.99

$

In Stock, only 2 left!
