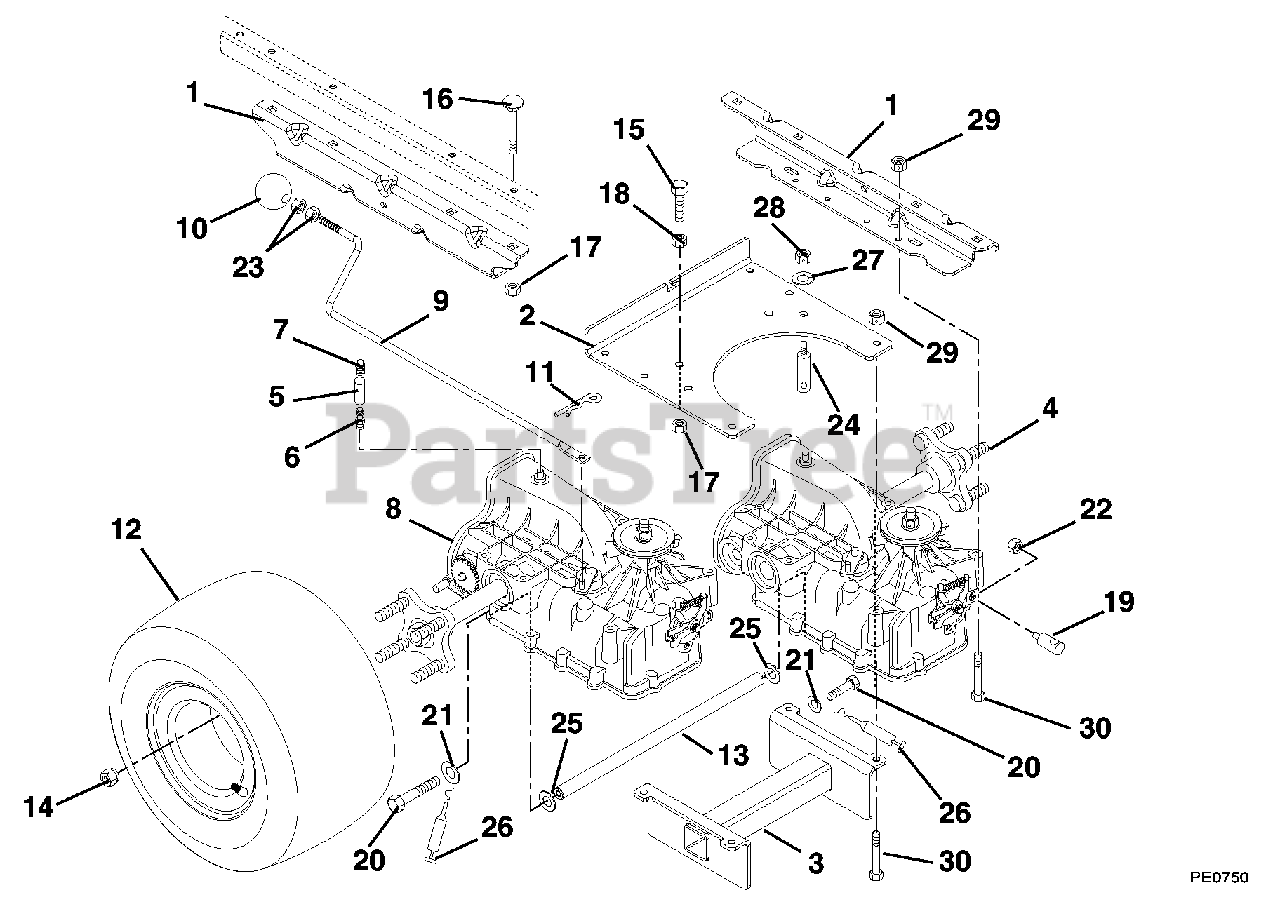

915034 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

40" Zero-Turn Mower, 16hp Briggs & Stratton

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 01577951

Bracket, Transmission Axle

$31.99

$

Usually ships in 4-12 days

0

2

Gravely 01578051

Bracket, Transmission Axle Support

$

$

Not available

3

Gravely 01578151

Weldment, Transmission Axle Brace

$

$

Not available

4

Gravely 01588900

Transaxle, Left Hand

$

$

Not available

5

Gravely 01543100

Hose, Vent

$9.49

$

In Stock, Qty 5

0

6

Gravely 07026300

Fitting, Straight .50 O-Ring Hydro-Gear

$23.99

$

In Stock, only 4 left!

0

7

Gravely 07026400

Cap, Vent .50 Hydro-Gear

$14.99

$

In Stock, Qty 6

0

8

Gravely 01589000

Transaxle, Right Hand

$

$

Not available

9

Gravely 01581600

Rod, Dump IZT

$

$

Not available

10

Gravely 07515900

Knob

$21.99

$

In Stock, only 1 left!

0

11

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 01587800

Assembly, Tire 9.5 x 18-2 Ply (036, 038, 040)
(Superseded to 07100233)

Note: (036, 038, 040)

$170.99

$

In Stock, only 2 left!

0

12

Gravely 01588700

Assembly, Tire 8.5 x 18 2 Ply (034)
(Superseded to 07100234)

Note: (034)

$155.99

$

In Stock, only 1 left!

0

13

Gravely 01578200

Rod, Axle Brace

$

$

Not available

14

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06226800

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

19

Gravely 01568600

Rod Pivot

$51.99

$

Usually ships in 4-12 days

0

20

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

21

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 15

0

23

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, only 1 left!

0

24

Gravely 03622900

Shoulder Stud

$34.99

$

In Stock, only 3 left!

0

25

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 00929200

Adhesive Sealant

$

$

Not available

27

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

28

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

29

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

30

Gravely 05960600

Bolt, Hex .31-18 x 2.75 Grade 5
(Superseded to 05901807)

$2.49

$

Usually ships in 4-12 days

0
