915035 (1640) - Ariens Zoom 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Seat And Seat Support Parts Diagram

Zoom 40" Zero-Turn Mower, 16hp Briggs & Stratton

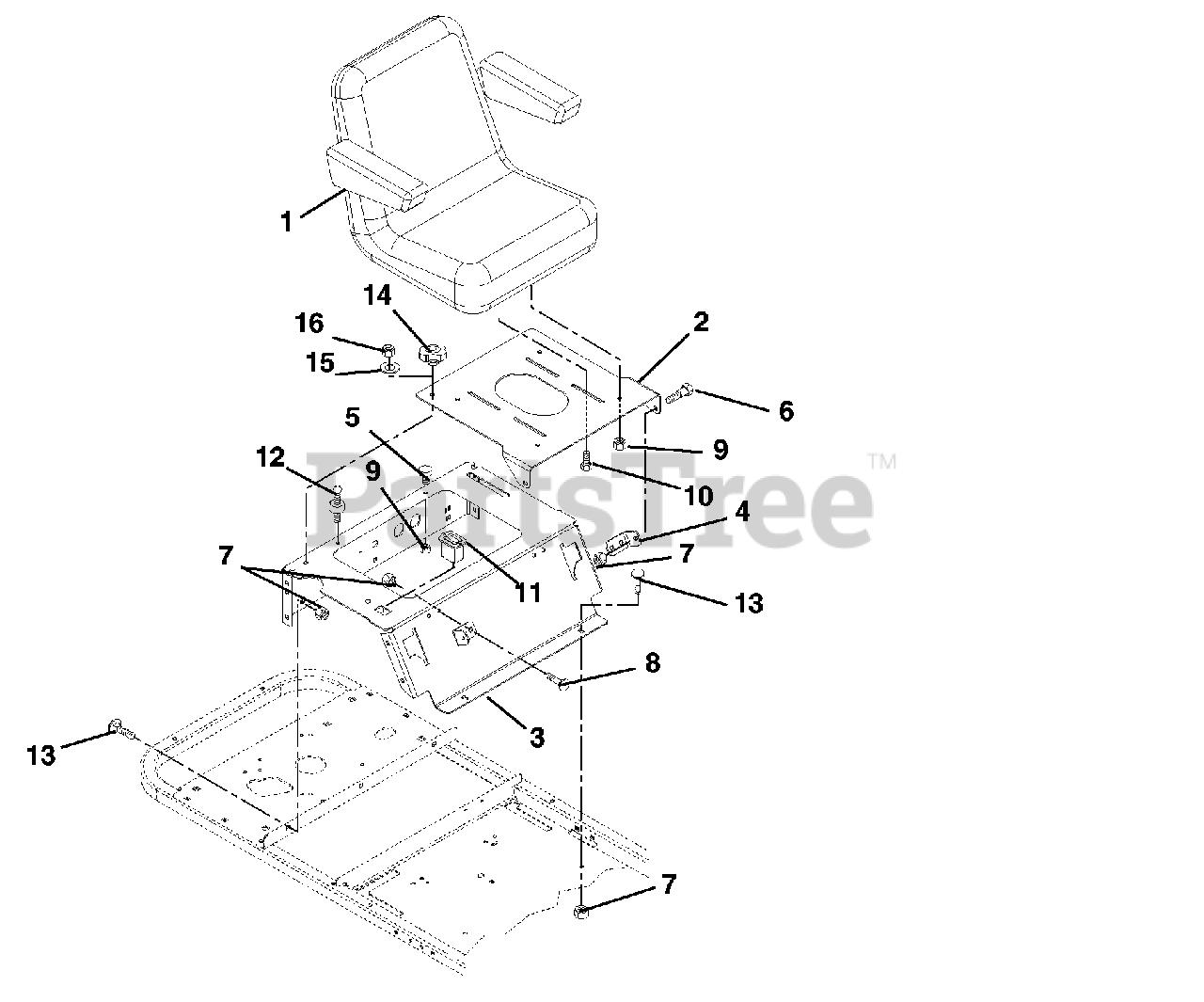

Seat And Seat Support Parts Diagram

  • Title

1

Ariens 01598400

SEAT, TS2800 MICHIGAN W/ARM.
(Superseded to 00367800)

Note: (915037, 039, 041, 313, 501)

$

$

Not available

Ariens 01599200

SEAT, TS2500 MICHIGAN W/ARM.
(Superseded to 00366300)

Note: (915035)

$

$

Not available

2

Ariens 01578651

SEAT PLATE

$

$

Not available

3

Ariens 01578451

SEAT SUPPORT

$131.99

$

Usually ships in 4-12 days

0

4

Ariens 01578551

BKT-SEAT PLATE

$41.99

$

In Stock, only 1 left!

0

5

Ariens 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

6

Ariens 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, Qty 11

0

7

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, only 4 left!

0

9

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (915037, 039, 041, 313, 501)

$1.99

$

In Stock, Qty 20+

0

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (915035)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 00591400

BLT-SERHFWH .31-18 X 1 YWZC

Note: (915035)

$

$

Not available

11

Ariens 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$63.99

$

Usually ships in 4-12 days

0

12

Ariens 07534900

BUMPER, STUD

$

$

Not available

13

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, only 4 left!

0

14

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0
