915036 (ZT 1844) - Gravely 44" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Mower Brackets And Rollers Parts Diagram

44" Zero-Turn Mower, 18hp Briggs & Stratton

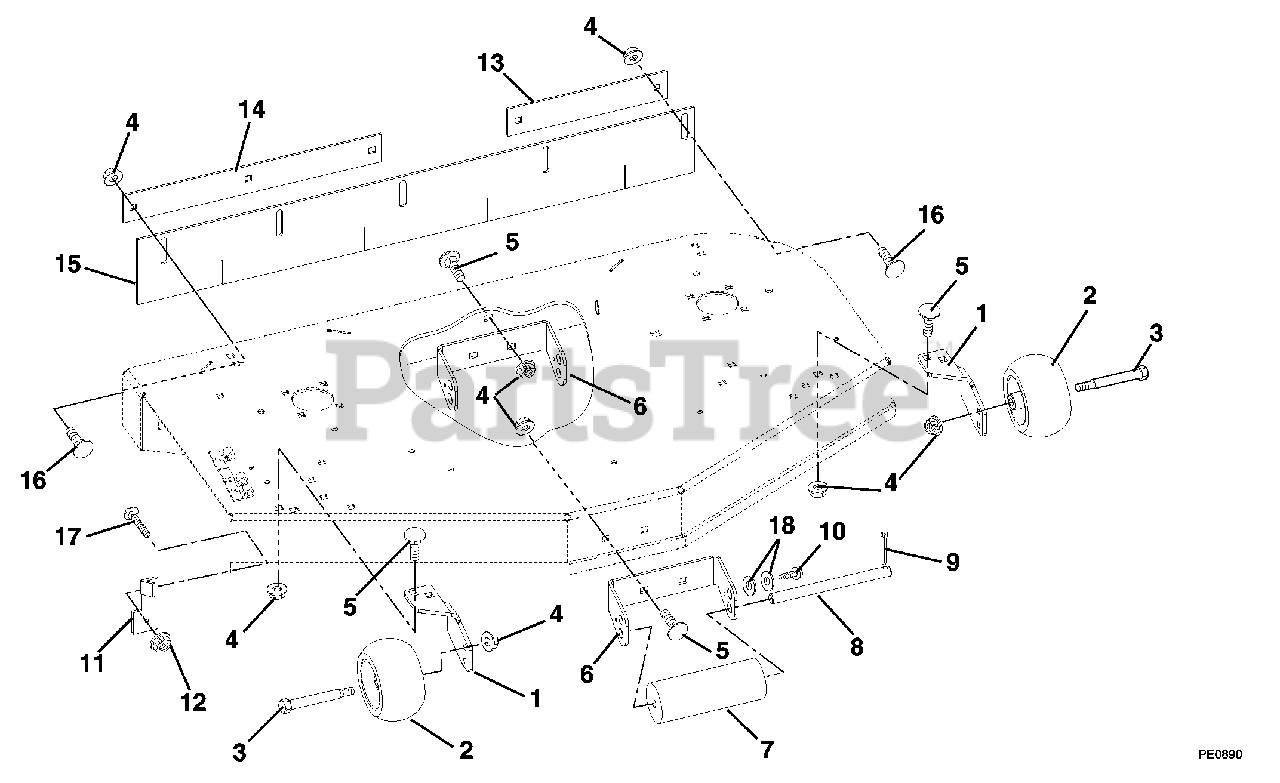

Mower Brackets And Rollers Parts Diagram

  • Title

1

Gravely 01574851

BRACKET, ANTI SCALP
(Superseded to 02950351)

$30.99

$

In Stock, Qty 10

0

2

Gravely 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

3

Gravely 07056800

BLT-SHLDR .38-16X2.50 HWH G5YZ

$7.49

$

In Stock, Qty 20+

0

4

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

6

Gravely 01572951

BRACKET, ROLLER MOUNT

$68.99

$

Usually ships in 4-12 days

0

7

Gravely 039563

ROLLER
(Superseded to 03114100)

$23.99

$

In Stock, Qty 20+

0

8

Gravely 01575600

PIN, RETAINER

$57.99

$

In Stock, only 2 left!

0

9

Gravely 06713000

PIN-CTR .25X1.00 YWZC

$1.99

$

In Stock, only 4 left!

0

10

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 01599151

BRACKET, CHUTE LOCK

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 06544600

NUT-SPNLK-FLG .375-16 BKZC
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 01577451

BAR, LH RETAINER STRIPER

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 01576951

BAR, RETAINING STRIPER-40"

Note: (034)

$16.99

$

Usually ships in 4-12 days

0

Gravely 01577651

BAR, RETAINING STRIPER-44"

Note: (036)

$18.99

$

Usually ships in 4-12 days

0

Gravely 01577351

BAR, RETAINING STRIPER-52"

Note: (038, 040)

$28.99

$

Usually ships in 4-12 days

0

15

Gravely 01576800

STRIPER, RUBBER-40"

Note: (034)

$62.99

$

Usually ships in 4-12 days

0

Gravely 01577500

STRIPER, RUBBER-44"

Note: (036)

$80.99

$

Usually ships in 4-12 days

0

Gravely 01577000

STRIPER, RUBBER-48"

Note: (038)

$83.99

$

Usually ships in 4-12 days

0

Gravely 01577200

STRIPER, RUBBER-52"

Note: (040)

$

$

Not available

16

Gravely 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06227700

BLT-RDHDSQNK .38-16X1.25 BKZC
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
