915040 (ZT 2252) - Gravely 52" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Baffles And Chute Parts Diagram

52" Zero-Turn Mower, 22hp Briggs & Stratton

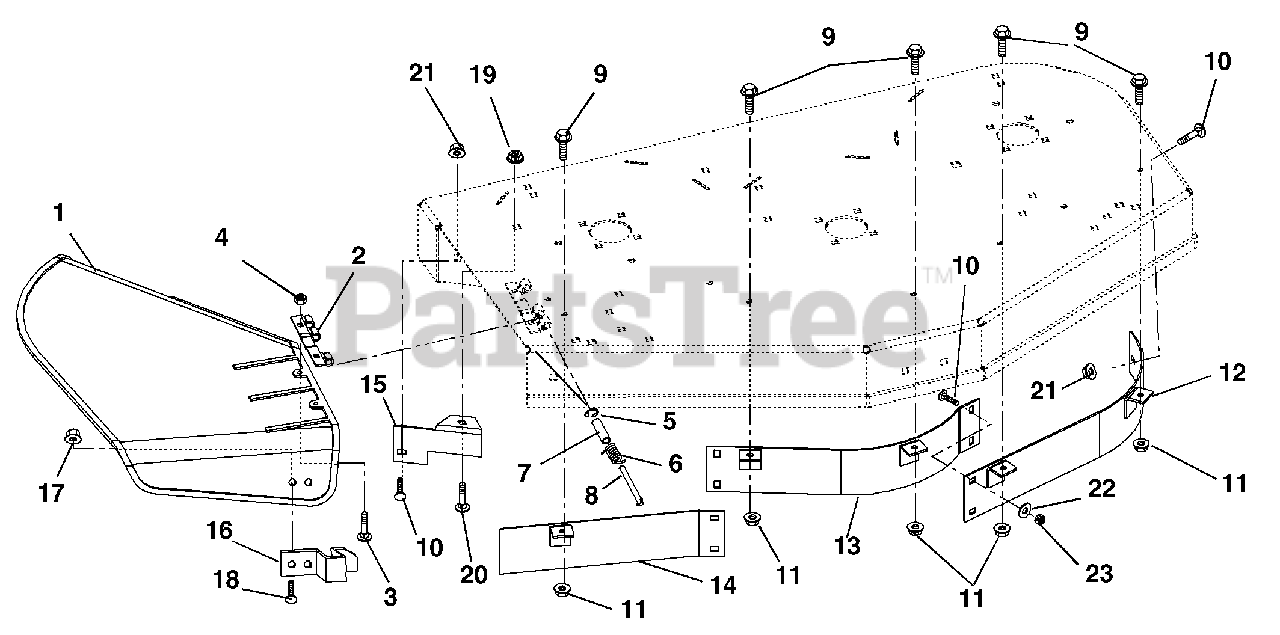

Baffles And Chute Parts Diagram

  • Title

1

Gravely 01585500

DEFLECTOR, CHUTE 42"

$80.99

$

In Stock, Qty 9

0

2

Gravely 02709551

HINGE PLATE

$28.99

$

In Stock, only 4 left!

0

3

Gravely 06227800

BLT-RDHDSQNK .25-20X.75 GR5BZ
(Superseded to 06219900)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06544800

NUT-SPNLK-FLG .250-20 BKZC
(Superseded to 06530100)

$1.49

$

In Stock, Qty 7

0

5

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

In Stock, Qty 11

0

6

Gravely 035996

SG-TORS .095X.50X 1.0
(Superseded to 08307200)

$21.99

$

In Stock, only 4 left!

0

7

Gravely 035997

BSHG-SLV .334 X .502 X 1.437
(Superseded to 02202900)

$6.49

$

In Stock, only 4 left!

0

8

Gravely 03624200

PIN

$54.99

$

In Stock, only 2 left!

0

9

Gravely 07068000

BLT SERHFWH .31-18X.62 GR5BKZC
(Superseded to 07047100)

$1.99

$

In Stock, only 3 left!

0

10

Gravely 06227900

BLT-RDHDSQSHNK .31-18X.62 BKZC
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01576151

BAFFLE - LEFT FRONT - 40"

Note: (034)

$74.99

$

Usually ships in 4-12 days

0

Gravely 01572451

BAFFLE - LEFT FRONT - 44"

Note: (036)

$101.99

$

Usually ships in 4-12 days

0

Gravely 01574051

BAFFLE - LEFT FRONT - 48"

Note: (038)

$81.99

$

In Stock, only 1 left!

0

Gravely 01575051

BAFFLE - LEFT FRONT - 52"

Note: (040)

$76.99

$

Usually ships in 4-12 days

0

13

Gravely 01576251

BAFFLE - CENTER FRONT - 40"

Note: (034)

$71.99

$

Usually ships in 4-12 days

0

Gravely 01572551

BAFFLE - CENTER FRONT - 44"

Note: (036)

$77.99

$

In Stock, only 2 left!

0

Gravely 01574151

BAFFLE - CENTER FRONT - 48"

Note: (038)

$68.99

$

Usually ships in 4-12 days

0

Gravely 01575151

BAFFLE - CENTER FRONT - 52"

Note: (040)

$105.99

$

Usually ships in 4-12 days

0

14

Gravely 01576351

BAFFLE - RIGHT FRONT - 40"

Note: (034)

$67.99

$

Usually ships in 4-12 days

0

Gravely 01572651

BAFFLE - RIGHT FRONT - 44"

Note: (036)

$38.99

$

In Stock, only 1 left!

0

Gravely 01574251

BAFFLE - RIGHT FRONT - 48"

Note: (038)

$62.99

$

In Stock, only 1 left!

0

Gravely 01575251

BAFFLE - RIGHT FRONT - 52"

Note: (040)

$56.99

$

Usually ships in 4-12 days

0

15

Gravely 01576751

DEFLECTOR-40"

Note: (034)

$35.99

$

Usually ships in 4-12 days

0

Gravely 01574651

DEFLECTOR-44"/48"

Note: (036, 038)

$35.99

$

Usually ships in 4-12 days

0

Gravely 01575951

DEFLECTOR-52"

Note: (040)

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 01597751

FLAT SPRING

$21.99

$

In Stock, only 2 left!

0

17

Gravely 06544900

NUT-LK-TOP-FLG .25-20 BKZC
(Superseded to 06543500)

$1.49

$

In Stock, Qty 15

0

18

Gravely 06228000

BLT-RDHDSQNK .25-20X.50 GR5BZ
(Superseded to 06220600)

$1.49

$

In Stock, Qty 11

0

19

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

21

Gravely 06545200

NUT-5/16-18 FLG NYLOC BK ZN
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0
