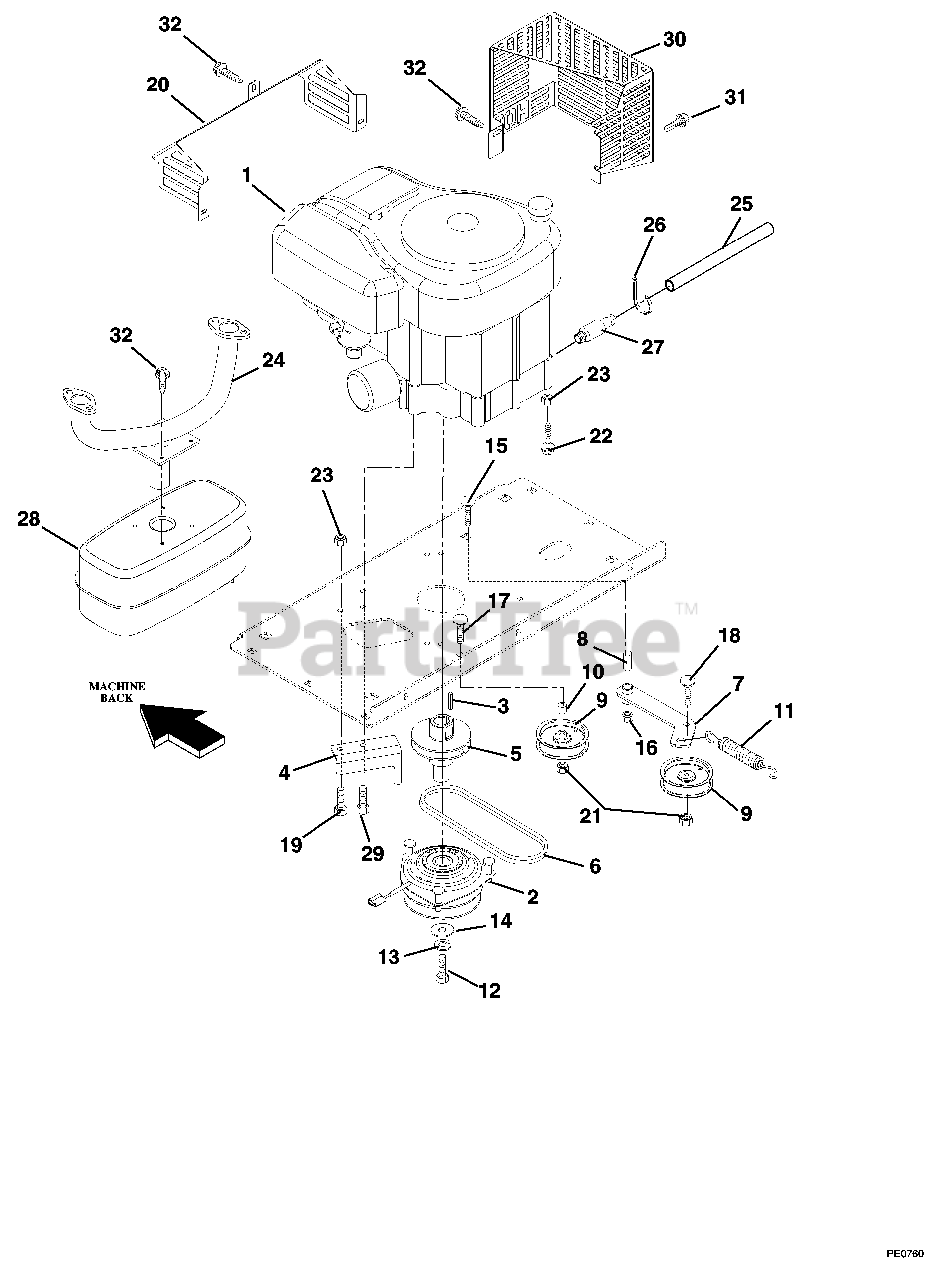

915040 (ZT 2252) - Gravely 52" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

52" Zero-Turn Mower, 22hp Briggs & Stratton

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 51508300

ENGINE GROUP - 16HP

Note: (034)

$

$

Not available

Gravely 51508400

ENGINE GROUP - 18HP

Note: (036)

$

$

Not available

Gravely 51508500

ENGINE GROUP - 20HP

Note: (038)

$

$

Not available

Gravely 51508600

ENGINE GROUP - 22HP

Note: (040)

$

$

Not available

2

Gravely 04915400

CLUTCH, ELECTRIC

$475.99

$

In Stock, only 1 left!

0

3

Gravely 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 01577851

CLUTCH STOP

$38.99

$

Usually ships in 4-12 days

0

5

Gravely 01602500

EXTENSION SHAFT
(Superseded to 00363200)

$

$

Not available

6

Gravely 07241400

BELT,HA WRAPPED

$53.99

$

In Stock, Qty 13

0

7

Gravely 01589600

IDLER-TRANSAXLE

$

$

Not available

8

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 6

0

9

Gravely 07327100

PULLEY, IDLER 4.00

$38.99

$

In Stock, Qty 13

0

10

Gravely 01591000

BSHG-SPCR .41X75X.69

$

$

Not available

11

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

12

Gravely 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, Qty 11

0

13

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

15

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

$4.99

$

In Stock, Qty 11

0

18

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

19

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (034, 036)

$1.99

$

In Stock, Qty 20+

0

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (038, 040)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 01596800

MUFFLER GUARD, 40CI

Note: (038, 040)

$

$

Not available

21

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

23

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (034, 036)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (038, 040)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 01590800

PIPE, EXHAUST

Note: (038, 040)

$

$

Not available

25

Gravely 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$6.49

$

Usually ships in 4-12 days

0

26

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

27

Gravely 07067800

VALVE, OIL DRAIN

$40.99

$

Usually ships in 4-12 days

0

28

Gravely 03654300

MUFFLER - EXHAUST

Note: (038, 040)

$173.99

$

In Stock, only 2 left!

0

29

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

30

Gravely 01596700

MUFFLER GUARD, 31CI

Note: (034, 036)

$

$

Not available

31

Gravely 07049500

BLT-SERHFWH .312-18X.50 YWZC

Note: (034, 036)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (038, 040)

$0.99

$

In Stock, Qty 20+

0

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (034, 036)

$0.99

$

In Stock, Qty 20+

0
