915040 (ZT 2252) - Gravely 52" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Front Axle, Tires And Bumper Parts Diagram

52" Zero-Turn Mower, 22hp Briggs & Stratton

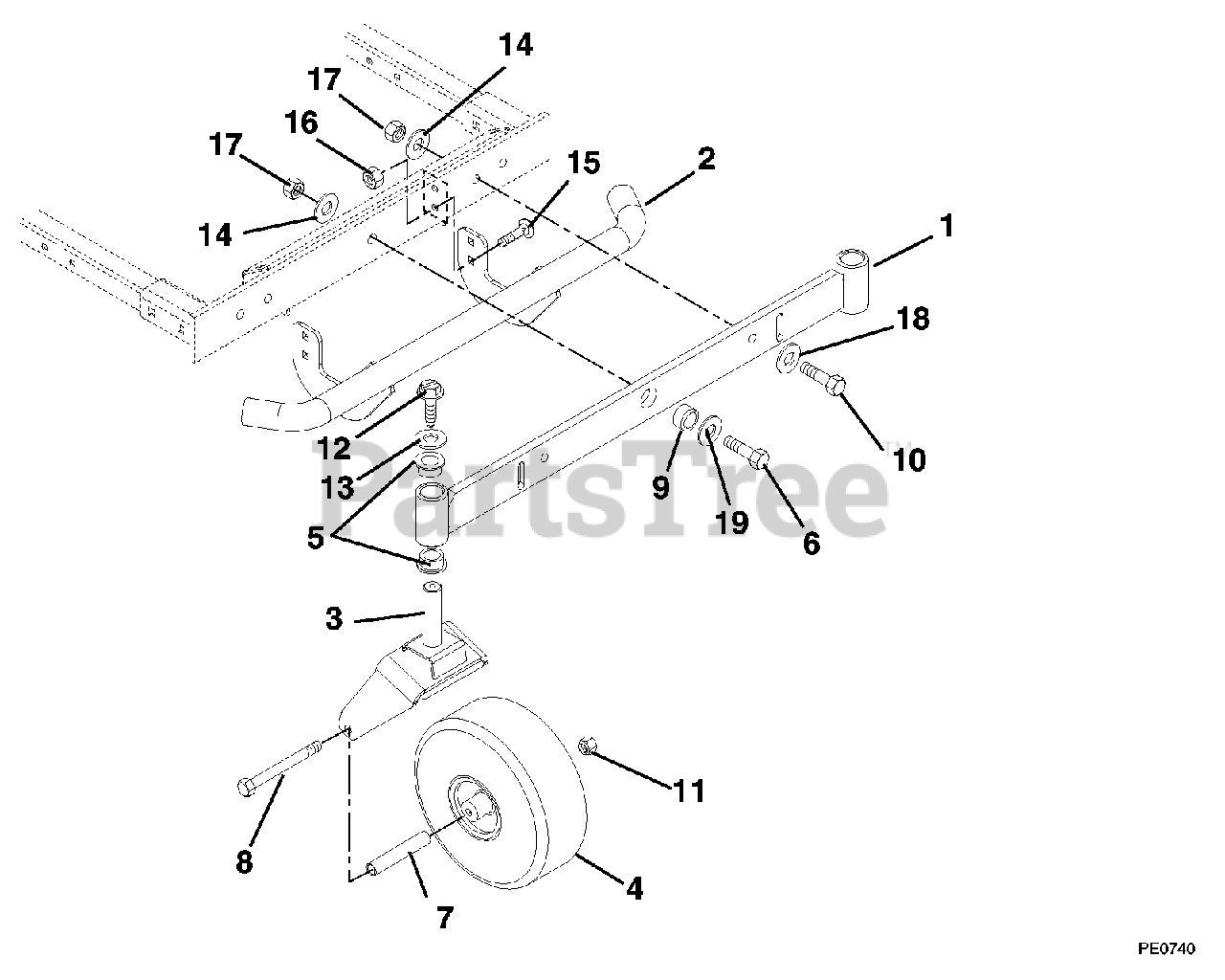

Front Axle, Tires And Bumper Parts Diagram

  • Title

1

Gravely 01600851

WMT, FRONT AXLE

$

$

Not available

2

Gravely 01589551

BUMPER-ZOOM

$

$

Not available

3

Gravely 01547051

FORK - CASTER

$155.99

$

Usually ships in 4-12 days

0

4

Gravely 01588100

ASSY-TIRE 4 X 11 - 4 PLY
(Superseded to 07100124)

$83.99

$

In Stock, Qty 20+

0

5

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

6

Gravely 06227300

BLT-HEX .62-11X2.50 GR5 BKZC

$5.49

$

Usually ships in 4-12 days

0

7

Gravely 09105200

BUSH.,CASTER FORK

$39.99

$

In Stock, Qty 6

0

8

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 01600400

BUSHING, AXLE PIVOT

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 05979900

BLT-SHLDR .75 .625-11X2.12SHCS

$

$

Not available

11

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07417100

SCR-TAP .38-16X1.25 HWH TR BZC
(Superseded to 07414700)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06447500

WSHR-FL-STL .38X1.50X.12 BKZC
(Superseded to 06443400)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$4.99

$

In Stock, Qty 20+

0

18

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 13

0
