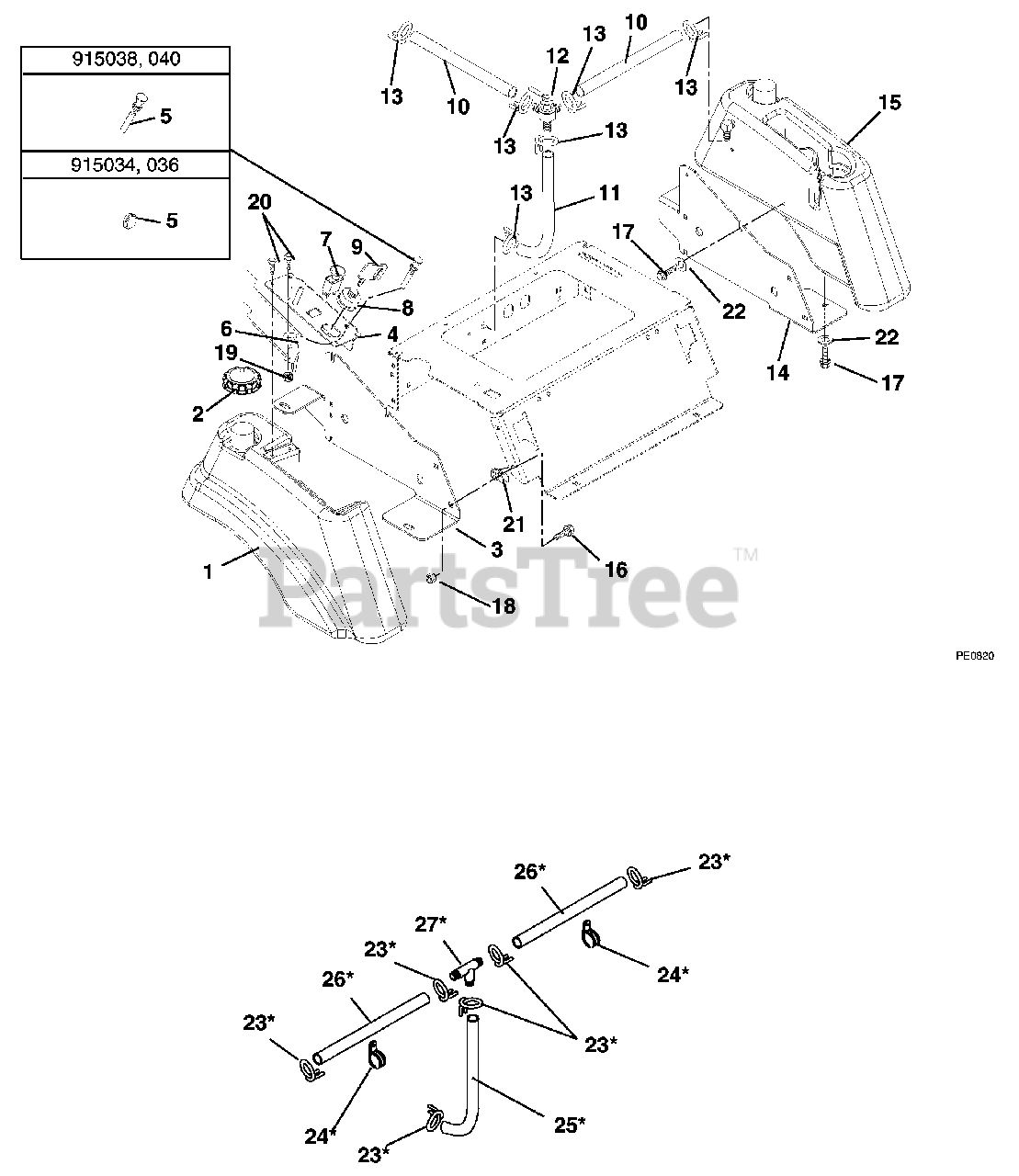

915040 (ZT 2252) - Gravely 52" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Fuel Tank Parts Diagram

52" Zero-Turn Mower, 22hp Briggs & Stratton

Fuel Tank Parts Diagram

  • Title

1

Gravely 01575800

FUEL TANK - RH

$

$

Not available

NS

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

2

Gravely 01538400

FUEL CAP

$16.99

$

In Stock, Qty 19

0

3

Gravely 01578751

SEAT PLATE/TANK SUPPORT RH

$

$

Not available

4

Gravely 01579451

BKT-CONTROL

$

$

Not available

5

Gravely 01588400

CHOKE CABLE

Note: (038, 040)

$77.99

$

In Stock, only 4 left!

0

Gravely 00529900

HOLE PLUG, PLASTIC .44 HOLE

Note: (034, 036)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 01588500

THROTTLE CABLE

Note: (038, 040)

$

$

Not available

Gravely 01588600

THROTTLE CABLE

Note: (034, 036)

$67.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

8

Gravely 01588300

KEY SWITCH

$33.99

$

In Stock, Qty 20+

0

9

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

10

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (038, 040)

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (034, 036)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 18

0

13

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

14

Gravely 01578851

SEAT PLATE LH

$

$

Not available

15

Gravely 01575700

FUEL TANK - LH

$

$

Not available

16

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

NS

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

17

Gravely 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

18

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 00548400

RETAINER, .38 PUSH-ON

$1.99

$

Usually ships in 4-12 days

0

22

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$3.99

$

In Stock, Qty 20+

0

24

Gravely 050394

CLAMP, CUSHIONED STEEL
(Superseded to 06908200)

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$6.49

$

Usually ships in 4-12 days

0

25

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (034, 036)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$1.49

$

In Stock, Qty 20+

0

27

Gravely 01588800

T-FITTING DAPCO

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$29.99

$

Usually ships in 4-12 days

0
